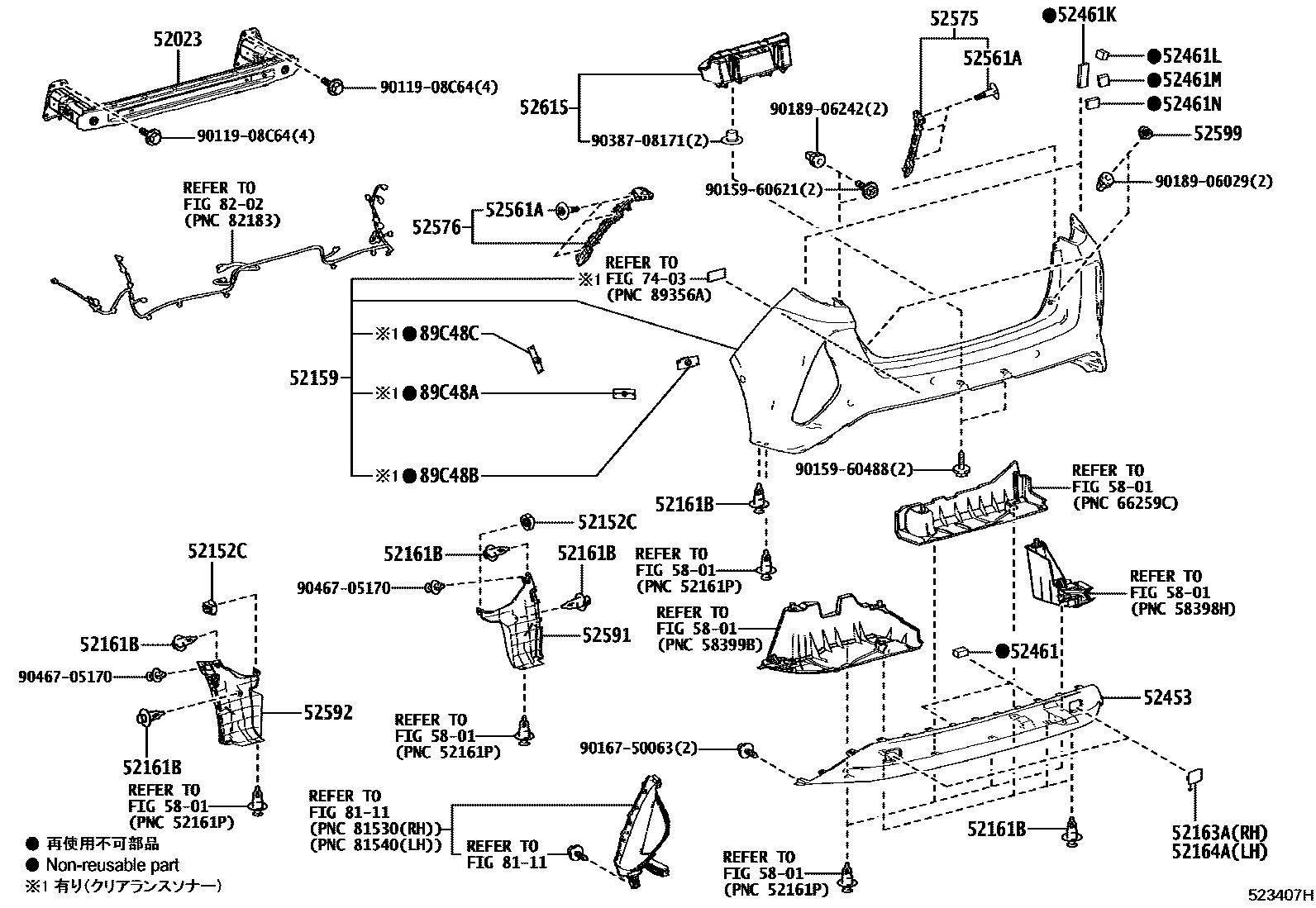

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1GR SPORT

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-47040iZVW52..CBU201609-201904

52152CCLIP, REAR BUMPER SIDE

main90467-06206-C0×2iZVW52..CBU201609-201904

BLACK

52159COVER, REAR BUMPER

main52159-47210-A0iZVW52..S..CBU201609-201904

SUPER WHITE 2,040

main52159-47210-E0iZVW52..S..CBU201609-201904

STEEL BLONDE,4X1

main52159-47918-A0iZVW52..A,PREM201609-201812

SUPER WHITE 2,040

main52159-47918-A1iZVW52..A,PREM201609-201812

WHITE PEARL CS.,070

main52159-47918-B0iZVW52..A,PREM201609-201812

SILVER ME.,1F7

main52159-47918-B1iZVW52..A,PREM201609-201812

GRAY ME.,1G3

main52159-47918-C0iZVW52..A,PREM201609-201812

ATTITUDE BLACK MC.,218

main52159-47918-D0iZVW52..A,PREM201609-201812

EMOTIONAL RED,3T7

main52159-47918-E0iZVW52..A,PREM201609-201812

STEEL BLONDE,4X1

main52159-47918-G0iZVW52..A,PREM201609-201812

THERMO-TECT LIME GREEN,6W7

main52159-47918-H1iZVW52..A,PREM201609-201812

SPIRITED AQUA ME.,791

main52159-47930-A0iZVW52..A,PREM201905-202106

SUPER WHITE 2,040

main52159-47930-A1iZVW52..A,PREM; ZVW52..S..CBU201812-201904

main52159-47930-A2iZVW52..A,PREM202007-202202

PLATINUM WHITE PEARL MC.,089

main52159-47930-B0iZVW52..A,PREM; ZVW52..S..CBU201812-201904

main52159-47930-B1iZVW52..A,PREM; ZVW52..S..CBU201812-201904

main52159-47930-C0iZVW52..A,PREM201905-202202

ATTITUDE BLACK MC.,218

main52159-47930-D0iZVW52..A,PREM; ZVW52..S..CBU201812-201904

main52159-47930-D1iZVW52..A,PREM201905-202202

EMOTIONAL RED 2,3U5

main52159-47930-E0iZVW52..A,PREM; ZVW52..S..CBU201812-201904

main52159-47930-G0iZVW52..A,PREM; ZVW52..S..CBU201812-201901

main52159-47930-H0iZVW52..A,PREM; ZVW52..S..CBU201812-201904

main52159-47930-J1iZVW52..A,PREM201905-202106

DK. BLUE MC.,8X8

main52159-47934-A0supersedes 52159-47210-A0iZVW52..S..CBU202007-202106

SUPER WHITE 2,040

main52159-47934-A2iZVW52..S..CBU202007-202202

PLATINUM WHITE PEARL MC.,089

main52159-47934-B0supersedes 52159-47210-B0iZVW52..S..CBU202007-202202

SILVER ME.,1F7

main52159-47934-C0supersedes 52159-47210-C0iZVW52..S..CBU202007-202202

ATTITUDE BLACK MC.,218

main52159-47934-D1supersedes 52159-47210-D1iZVW52..S..CBU202007-202202

EMOTIONAL RED 2,3U5

main52159-47934-E0supersedes 52159-47210-E0iZVW52..S..CBU202007-202106

STEEL BLONDE ME.,4X1

main52159-47934-H0supersedes 52159-47210-H0iZVW52..S..CBU202007-202202

SPIRITED AQUA ME.,791

main52159-47941-A0iZVW52..A,PREM202202

PLATINUM WHITE PEARL MC.,089

main52159-47941-B0iZVW52..A,PREM202202

SILVER ME.,1F7

main52159-47941-C0iZVW52..A,PREM202202

ATTITUDE BLACK MC.,218

main52159-47941-D0iZVW52..A,PREM202202

EMOTIONAL RED 2,3U5

main52159-47941-H0iZVW52..A,PREM202202

SPIRITED AQUA ME.,791

main52159-47942-A0iZVW52..S..CBU202202

PLATINUM WHITE PEARL MC.,089

main52159-47942-D0iZVW52..S..CBU202202

EMOTIONAL RED 2,3U5

main52159-47280-A0supersedes 52159-47210-A1iZVW52..S..CBU201710-201904

main52159-47280-A1iZVW52..S..CBU202007-202106

main52159-47280-B0iZVW52..S..CBU201905-202106

main52159-47280-B1iZVW52..S..CBU201905-202106

main52159-47280-C0supersedes 52159-47210-C0iZVW52..S..CBU201905-202007

main52159-47280-D0iZVW52..S..CBU201710-201801

main52159-47280-D1iZVW52..S..CBU201905-202106

main52159-47280-G0iZVW52..S..CBU201801-201901

main52159-47280-H0iZVW52..S..CBU201801-201904

main52159-47280-J0iZVW52..S..CBU201905-202106

main52159-47934-A1supersedes 52159-47210-A1iZVW52..S..CBU201905-202007

main52159-47934-B1supersedes 52159-47210-B1iZVW52..S..CBU201905-202007

main52159-47934-J1supersedes 52159-47210-J0iZVW52..S..CBU201905-202007

52161BPIECE, REAR BUMPER

main52161-16010×10iZVW52..CBU201609-201904

52163APLATE, REAR BUMPER, RH

main52163-47070iZVW52..CBU201905

main52163-47090iZVW52..S..CBU201710-201904

52164APLATE, REAR BUMPER, LH

main52164-47060iZVW52..CBU201609-201904

main52164-47080iZVW52..S..CBU201710-201801

52453GUARD, REAR BUMPER, CENTER

main52453-47030iZVW52..CBU201609-201904

main52453-47040iZVW52..S..CBU201710-201801

52461PAD, REAR BUMPER, CENTER

main52461-47030×3iZVW52..CBU201609-201712

52461KPAD, REAR BUMPER, NO.1

main52462-47020×2iZVW52..CBU201609-201904

main52461-47040iZVW52..S..CBU201905-202007

52461LPAD, REAR BUMPER, NO.2

main52462-47030×2iZVW52..CBU201609-201712

main52462-47040×2iZVW52..CBU201905

main52461-47060×2iZVW52..S..CBU201710-201801

52461MPAD, REAR BUMPER, NO.3

main52462-47040×2iZVW52..CBU201609-201904

main52462-47070×2iZVW52..CBU201905

main52462-47080×2iZVW52..S..CBU201710-201801

52461NPAD, REAR BUMPER, NO.4

main52462-47070×2iZVW52..CBU201609-201904

main52462-47120×2iZVW52..S..CBU201801-201904

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-09237×6iZVW52..CBU201609-201904

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47050iZVW52..CBU201609-201904

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47050iZVW52..CBU201609-201904

52591SEAL, REAR BUMPER SIDE, RH

main52591-47060iZVW52..CBU201609-201904

main52591-47090iZVW52..CBU201905

main52591-47040iZVW52..S..CBU201905-202007

52592SEAL, REAR BUMPER SIDE, LH

main52592-47050iZVW52..CBU201609-201904

main52592-47090iZVW52..CBU201905

main52592-47060iZVW52..S..CBU201710-201801

52599STOPPER, REAR BUMPER, UPPER

main52599-68030×2iZVW52..CBU201609-201904

52615ABSORBER, REAR BUMPER ENERGY

main52615-47090iZVW52..CBU201905

main52615-47100iZVW52..S..CBU201710-201801

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

8202WIRING & CLAMP

→ Go to FIG 82-02

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-12070-22iZVW52..A,PREM; ZVW52..S..CBU201812-201904

main89348-12070-A0iZVW52..A,PREM; ZVW52..S..CBU201812-201904

main89348-12070-A1iZVW52..A,PREM; ZVW52..S..CBU201905-202007

main89348-12070-A4iZVW52..CBU; ZVW52..S..CBU202007

main89348-12070-B0iZVW52..A,PREM; ZVW52..S..CBU201812-201904

main89348-12070-B7iZVW52..A,PREM201905

main89348-12070-D3iZVW52..A,PREM; ZVW52..S..CBU201812-201904

main89348-12070-D4iZVW52..A,PREM201905

main89348-12070-E3iZVW52..A,PREM; ZVW52..S..CBU201812-201904

main89348-12070-G6iZVW52..A,PREM; ZVW52..S..CBU201812-201901

main89348-12070-H2iZVW52..A,PREM201905

main89348-12070-J5iZVW52..A,PREM201905-202106

main89348-12140-22iZVW52..A,PREM201905

main89348-12140-A0iZVW52..A,PREM; ZVW52..S..CBU201812-201904

main89348-12140-A1iZVW52..A,PREM; ZVW52..S..CBU201905-202007

main89348-12140-A4iZVW52..CBU202007

main89348-12140-B0iZVW52..A,PREM; ZVW52..S..CBU201812-201904

main89348-12140-B7iZVW52..A,PREM; ZVW52..S..CBU201812-201904

main89348-12140-D3iZVW52..A,PREM; ZVW52..S..CBU201812-201904

main89348-12140-D4iZVW52..A,PREM201905

main89348-12140-E3iZVW52..A,PREM201905-202208

main89348-12140-G6iZVW52..A,PREM; ZVW52..S..CBU201812-201901

main89348-12140-H2iZVW52..A,PREM201905

main89348-12140-J5iZVW52..A,PREM201905-202106

main89348-47020-A0iZVW52..A,PREM201609-201811

main89348-47020-A1iZVW52..A,PREM201609-201811

main89348-47020-B0iZVW52..A,PREM201609-201811

main89348-47020-B1iZVW52..A,PREM201609-201811

main89348-47020-C0iZVW52..A,PREM201609-201811

main89348-47020-D0iZVW52..A,PREM201609-201811

main89348-47020-E0iZVW52..A,PREM201609-201811

main89348-47020-G0iZVW52..A,PREM201609-201811

main89348-47020-H1iZVW52..A,PREM201609-201811

main89348-47030-A0supersedes 89348-12140-A0iZVW52..A,PREM201609-201811

main89348-47030-A1iZVW52..A,PREM201609-201811

main89348-47030-B0supersedes 89348-12140-B0iZVW52..A,PREM201609-201811

main89348-47030-B1supersedes 89348-12140-B7iZVW52..A,PREM201609-201811

main89348-47030-C0supersedes 89348-12140-22iZVW52..A,PREM201609-201811

main89348-47030-D0iZVW52..A,PREM201609-201811

main89348-47030-E0supersedes 89348-12140-E3iZVW52..A,PREM201609-201811

main89348-47030-G0iZVW52..A,PREM201609-201811

main89348-47030-H1supersedes 89348-12140-H2iZVW52..A,PREM201609-201811

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-47060-A0×2iZVW52..A,PREM201609-201904

SUPER WHITE 2,040

main89348-47060-A1×2iZVW52..A,PREM; ZVW52..S..CBU201905-202007

main89348-47060-A3×2iZVW52..CBU; ZVW52..S..CBU202007

main89348-47060-B0×2iZVW52..A,PREM201609-201904

SILVER ME.,1F7

main89348-47060-B1×2iZVW52..A,PREM201609-201904

GRAY ME.,1G3

main89348-47060-C0×2iZVW52..A,PREM201905

ATTITUDE BLACK MC.,218

main89348-47060-D0×2iZVW52..A,PREM201609-201904

EMOTIONAL RED,3T7

main89348-47060-D3×2iZVW52..A,PREM201905

EMOTIONAL RED 2,3U5

main89348-47060-E0×2iZVW52..A,PREM201905-202208

STEEL BLONDE,4X1

main89348-47060-G0×2iZVW52..A,PREM201609-201901

THERMO-TECT LIME GREEN,6W7

main89348-47060-H1×2iZVW52..A,PREM201609-201904

SPIRITED AQUA ME.,791

main89348-47060-J2×2iZVW52..A,PREM201905-202106

DK. BLUE MC.,8X8

89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE

main89348-47090-A0iZVW52..A,PREM201905

main89348-47090-A1iZVW52..A,PREM201609-201904

main89348-47090-A3iZVW52..A,PREM202007

main89348-47090-B0iZVW52..A,PREM201609-201904

main89348-47090-B1iZVW52..A,PREM201609-201904

main89348-47090-C0iZVW52..A,PREM201905

main89348-47090-D0iZVW52..A,PREM201609-201904

main89348-47090-D4iZVW52..A,PREM201905

main89348-47090-E0iZVW52..A,PREM201905-202208

main89348-47090-G0iZVW52..A,PREM201609-201901

main89348-47090-H1iZVW52..A,PREM201609-201904

main89348-47090-J4iZVW52..A,PREM201905-202106

main89348-47100-A0iZVW52..A,PREM201905

main89348-47100-A1iZVW52..A,PREM201609-201904

main89348-47100-A3iZVW52..A,PREM202007

main89348-47100-B0iZVW52..A,PREM201609-201904

main89348-47100-B1iZVW52..A,PREM201609-201904

main89348-47100-C0iZVW52..A,PREM201609-201904

main89348-47100-D0iZVW52..A,PREM201609-201904

main89348-47100-D4iZVW52..A,PREM201905

main89348-47100-E0iZVW52..A,PREM201609-201904

main89348-47100-G0iZVW52..A,PREM201609-201901

main89348-47100-H1iZVW52..A,PREM201609-201904

main89348-47100-J4iZVW52..A,PREM201905-202106

9011908C64

main90119-08C64

9015960488

main90159-60488

9015960621

main90159-60621

9016750063

main90167-50063

9018906029

main90189-06029

9018906242

main90189-06242

9038708171

main90387-08171

9046705170

main90467-05170

34 parts on this diagram · 3 diagrams in section
