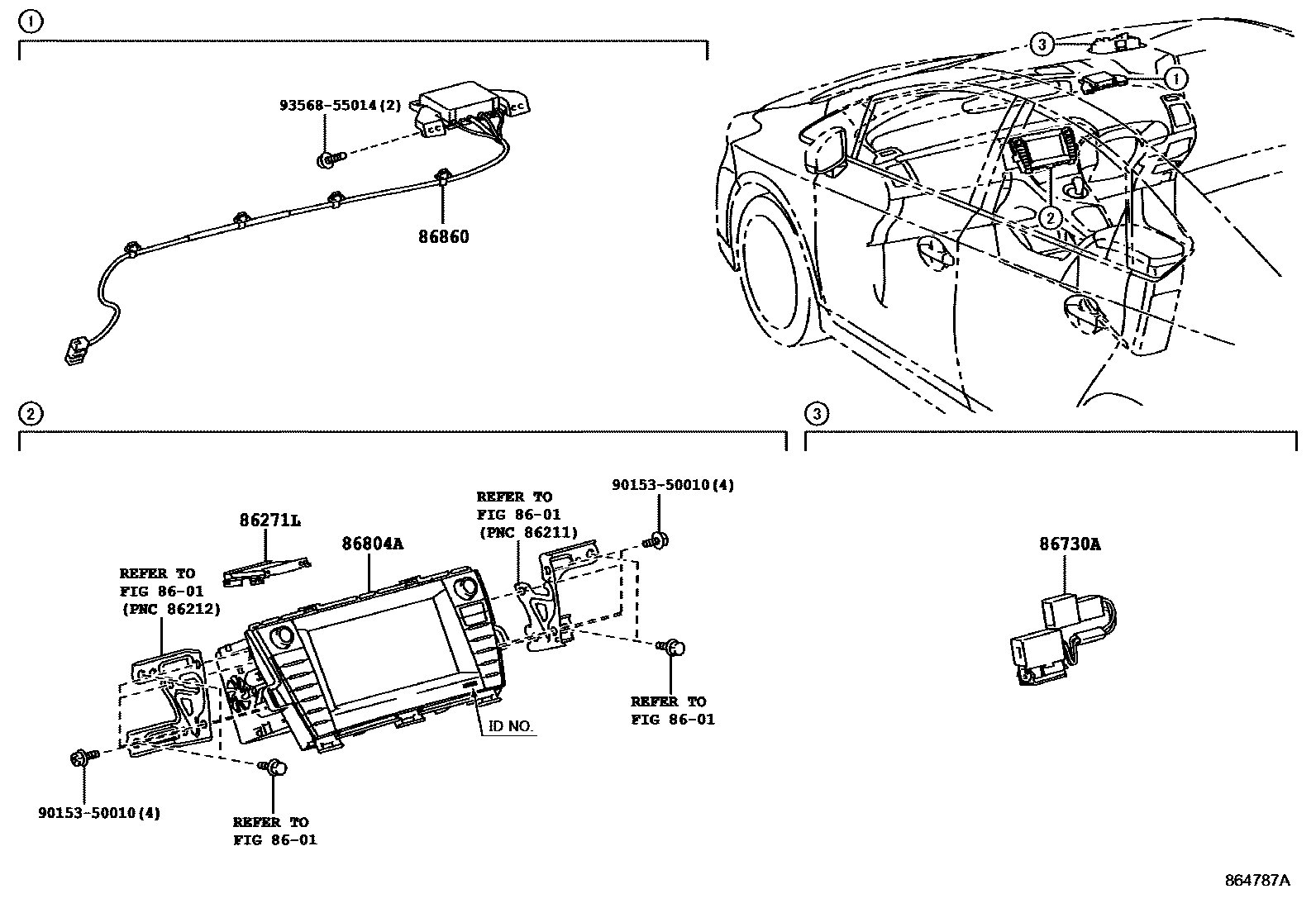

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86271LHARD DISC

main86271-33195iZVW35..G; ZVW35..G,S201309-201403

main86271-33196iZVW35..G; ZVW35..G,S201404-201408

main86271-33197iZVW35..G; ZVW35..G,S201409-201503

main86271-33198iZVW35..G; ZVW35..G,S201504-201508

main86271-33199iZVW35; ZVW35..G201509-201603

main86271-74020iZVW35..G; ZVW35..G,S201201-201205

main86271-74021iZVW35..G; ZVW35..G,S201206-201208

main86271-74022iZVW35..G; ZVW35..G,S201209-201303

main86271-74023iZVW35..G; ZVW35..G,S201304-201308

86730AMICROPHONE ASSY, TELEPHONE

main86730-28040iZVW35..G; ZVW35..G,S201201-201604

86804ASUB-ASSY, NAVIGATION COMPUTER

main86804-47200iZVW35..G,S201201-201303

main86804-47201iZVW35..G,S201304

main86804-47210iZVW35..G201201-201303

main86804-47211iZVW35..G201304

86860ANTENNA ASSY, NAVIGATION

main86880-47020iZVW35..G; ZVW35..G,S201201

9015350010

main90153-50010

9356855014

main93568-55014

7 parts on this diagram · 1 diagram in section
