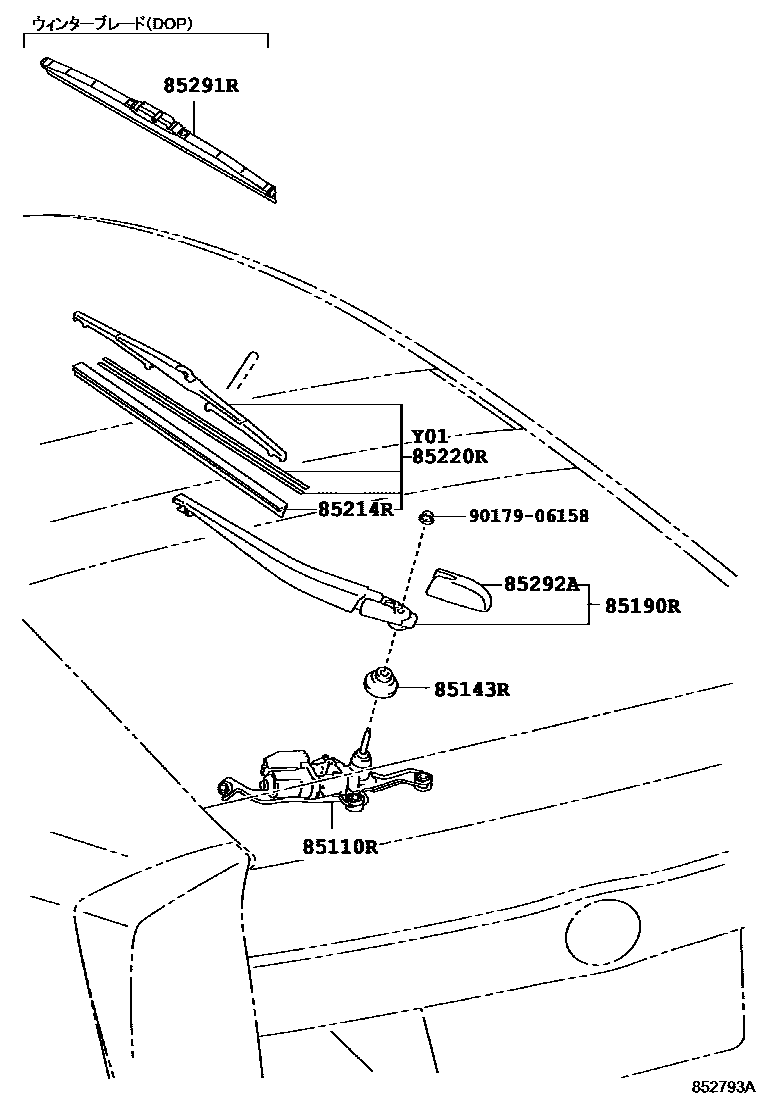

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-47021iZVW35..G,S201201

85143RGROMMET, REAR WIPER MOTOR

main85143-72010iZVW35..G,S201201

85190RARM ASSY, REAR WIPER

main85241-28120iZVW35..G,S201201

85214RRUBBER, REAR WIPER

main85214-10100iZVW35..G,S201201

85220RBLADE ASSY, REAR WIPER

main85242-47030iZVW35..G,S201201

85291RBLADE,REAR WIPER, WINTER

main85291-44100iZVW35..L201201-201210

85292ACAP, REAR WIPER ARM HEAD

main85292-28050iZVW35..G,S201201

9017906158

main90179-06158

8 parts on this diagram · 1 diagram in section
