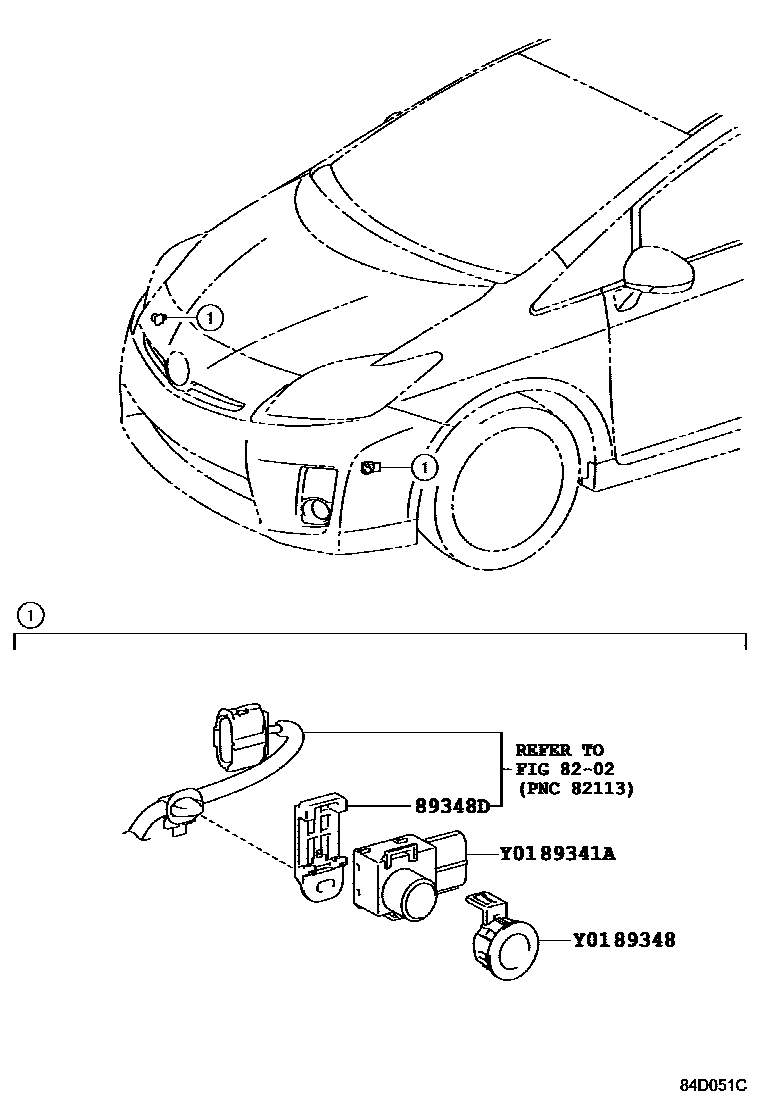

CLEARANCE & BACK SONAR

8202WIRING & CLAMP

→ Go to FIG 82-02

89341ASENSOR, ULTRASONIC, NO.1

main89341-28480-A0×2iZVW35..G; ZVW35..G,S201201-201604

main89341-28480-A1×2iZVW35..G; ZVW35..G,S201201-201604

main89341-28480-B1×2iZVW35..G; ZVW35..G,S201201-201604

main89341-28480-C2×2iZVW35..G; ZVW35..G,S201201-201604

main89341-28480-D1×2iZVW35..G; ZVW35..G,S201201-201604

main89341-28480-D4×2iZVW35..G; ZVW35..G,S201211-201507

main89341-28480-H3×2iZVW35..G; ZVW35..G,S201201-201408

main89341-28480-J0×2iZVW35..G; ZVW35..G,S201201-201507

main89341-28480-J6×2iZVW35..G; ZVW35..G,S201201-201604

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-12010-A0×2iZVW35..G; ZVW35..G,S201201-201604

main89348-12010-A1×2iZVW35..G; ZVW35..G,S201201-201604

main89348-12010-B0×2iZVW35..G; ZVW35..G,S201201-201604

main89348-12010-C2×2iZVW35..G; ZVW35..G,S201201-201604

main89348-12010-D0×2iZVW35..G; ZVW35..G,S201201-201604

main89348-12010-D8×2iZVW35..G; ZVW35..G,S201211-201507

main89348-12010-H1×2iZVW35..G; ZVW35..G,S201201-201408

main89348-12010-J0×2iZVW35..G; ZVW35..G,S201201-201507

main89348-12010-J8×2iZVW35..G; ZVW35..G,S201201-201604

89348DCLIP, ULTRASONIC SENSOR

main89348-33090×2iZVW35..G; ZVW35..G,S201201-201604

4 parts on this diagram · 1 diagram in section
