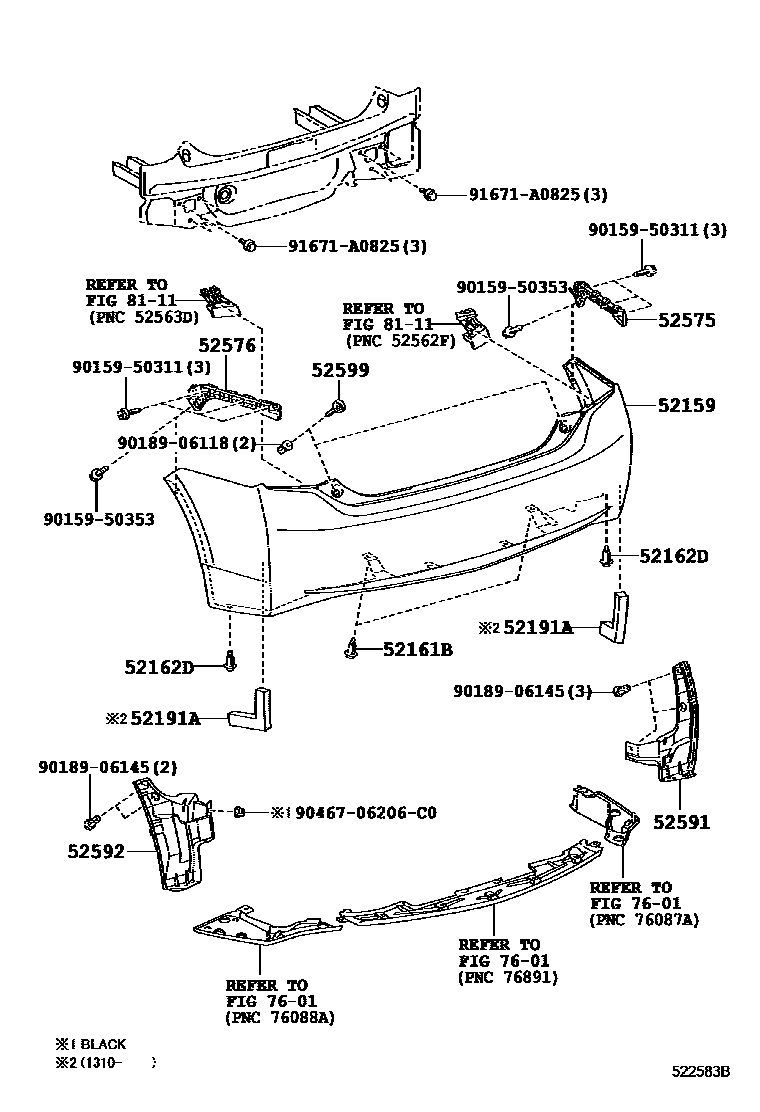

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-47060-A0iZVW35201201-201511

SUPER WHITE 2,040

main52159-47060-A1iZVW35201201-201511

WHITE PEARL CS.,070

main52159-47060-B0iZVW35201201-201511

SILVER ME.,1F7

main52159-47060-C2iZVW35201201-201511

ATTITUDE BLACK MC.,218

main52159-47060-D0iZVW35201201-201511

RED M.M.,3R3

main52159-47060-D3iZVW35201211-201507

BORDEAUX MC.,3P2

main52159-47060-H1iZVW35201201-201408

FROSTY GREEN MC.,781

main52159-47060-J4iZVW35201201-201511

TRUE BLUE M.M.,8W1

main52159-47060-J6iZVW35201201-201507

DK.BLUE MC.,8S6

main52159-47250-A0iZVW35201511-201604

SUPER WHITE 2,040

main52159-47250-A1iZVW35201511-201604

WHITE PEARL CS.,070

main52159-47250-B0iZVW35201511-201604

SILVER ME.,1F7

main52159-47250-C0iZVW35201511-201604

ATTITUDE BLACK MC.,218

main52159-47250-D0iZVW35201511-201604

RED M.M.,3R3

main52159-47250-J1iZVW35201511-201604

TRUE BLUE M.M.,8W1

52161BPIECE, REAR BUMPER

main52161-16010×2iZVW35201201

52162DPIECE, REAR BUMPER

main52161-16010×2iZVW35201201

52191ASEAL, REAR BUMPER ARM

main52191-47020×2iZVW35201310

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47020iZVW35201201-201402

main52575-47021iZVW35201403

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47020iZVW35201201-201402

main52576-47021iZVW35201403

52591SEAL, REAR BUMPER SIDE, RH

main52591-47021iZVW35201201

52592SEAL, REAR BUMPER SIDE, LH

main52592-47021iZVW35201201

52599STOPPER, REAR BUMPER, UPPER

main52599-68030×2iZVW35201201

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

9015950311

main90159-50311

9015950353

main90159-50353

9018906118

main90189-06118

9018906145

main90189-06145

9046706206C0

main90467-06206C0

91671A0825

main91671-A0825

17 parts on this diagram · 1 diagram in section
