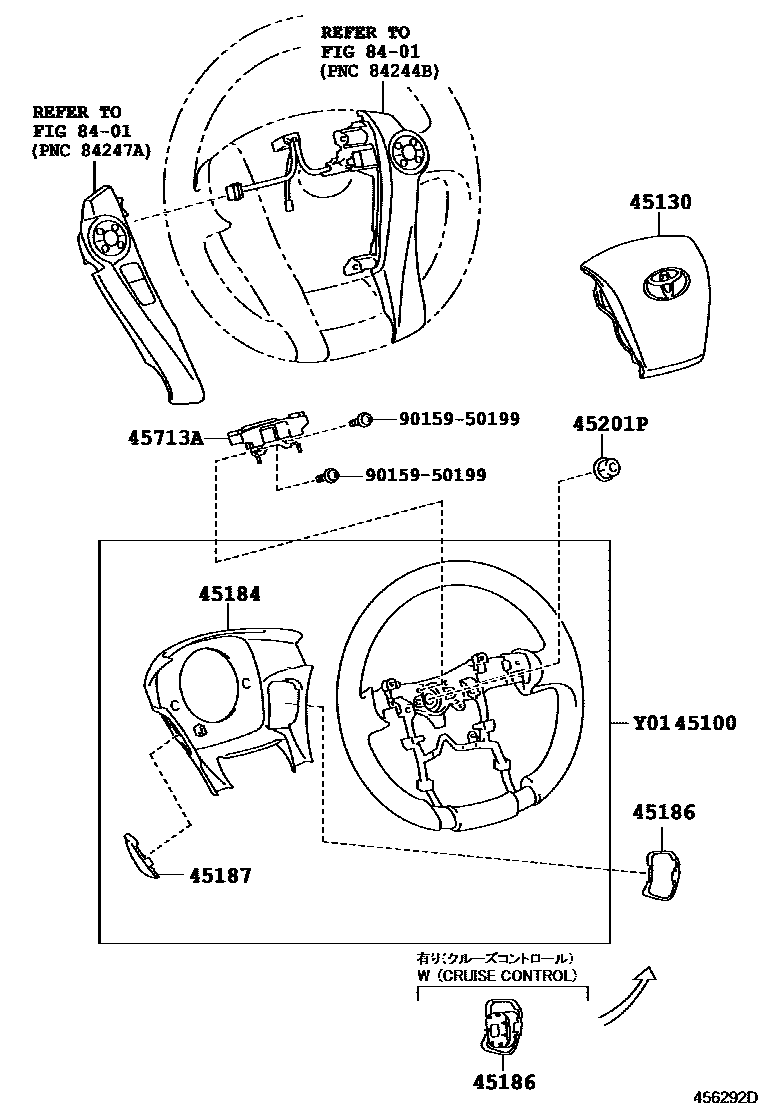

STEERING WHEEL

0001 14������� 0002 14�������,��(����������)

45100WHEEL ASSY, STEERING

main45100-47120-C0iZVW35..L201201-201506

main45100-47130-C0iZVW35..G201201-201211

main45100-47170-C0iZVW35..G,S201211-201310

main45100-47172-C0iZVW35..G,S201310-201411

main45100-47173-C0iZVW35..G,S201412-201604

45130BUTTON ASSY, HORN

main45130-47100-C0iZVW35..G,S201201-201310

BLACK,TRIM2#,6#

main45130-47180-C0iZVW35..G,S201310-201604

BLACK,TRIM2#,6#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-47010-C0iZVW35..L201201-201506

BLACK,TRIM2#,6#

main45184-47020-C0iZVW35..G,S201211-201604

BLACK,TRIM2#,6#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-47020-C0iZVW35..L,S201201-201604

BLACK,TRIM2#,6#

main45186-47030-C0iZVW35..G201201-201604

BLACK,TRIM2#,6#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-47010-C0iZVW35201201-201604

BLACK,TRIM2#,6#

45201PNUT, STEERING WHEEL SET

main90179-12071iZVW35201201

45713ADAMPER, STEERING SHAKE

main45713-47030iZVW35201201

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950199

main90159-50199

9 parts on this diagram · 2 diagrams in section
