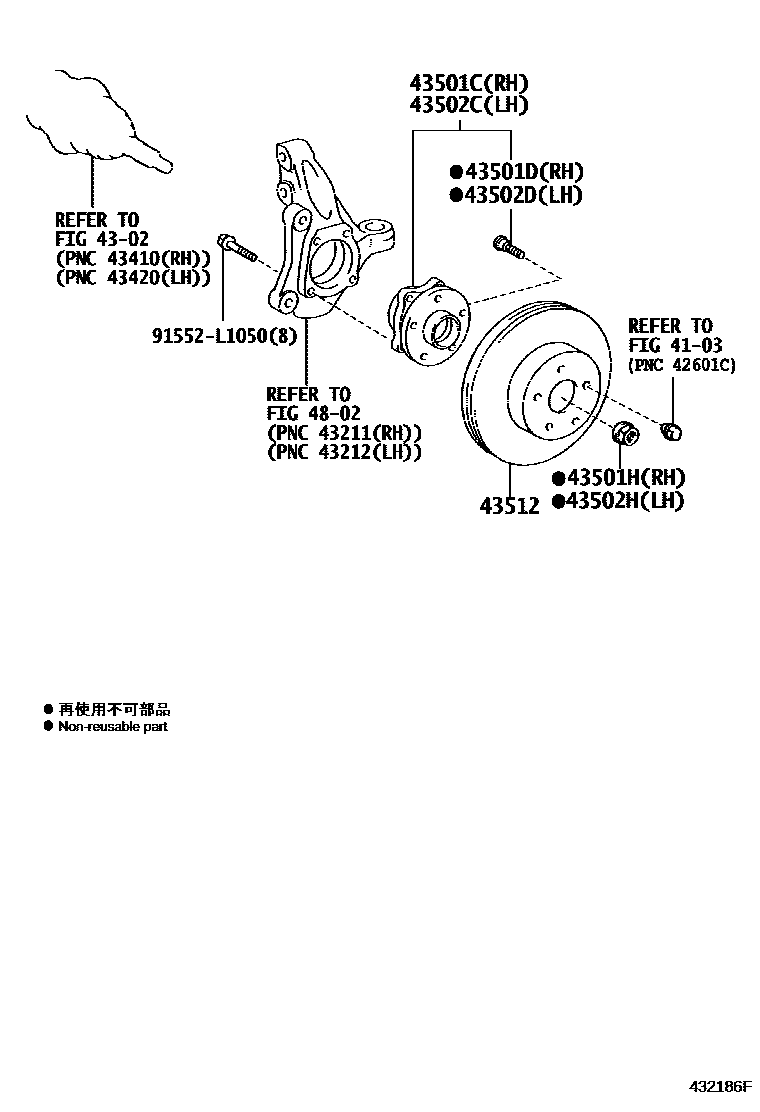

FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-47010iZVW35201201-201206

main43550-47011iZVW35201207

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iZVW35201201

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZVW35201201

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-47010iZVW35201201-201206

main43550-47011iZVW35201207

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iZVW35201201

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZVW35201201

43512DISC, FRONT

main43512-47040iZVW35201201-201604

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552L1050

main91552-L1050

11 parts on this diagram · 1 diagram in section
