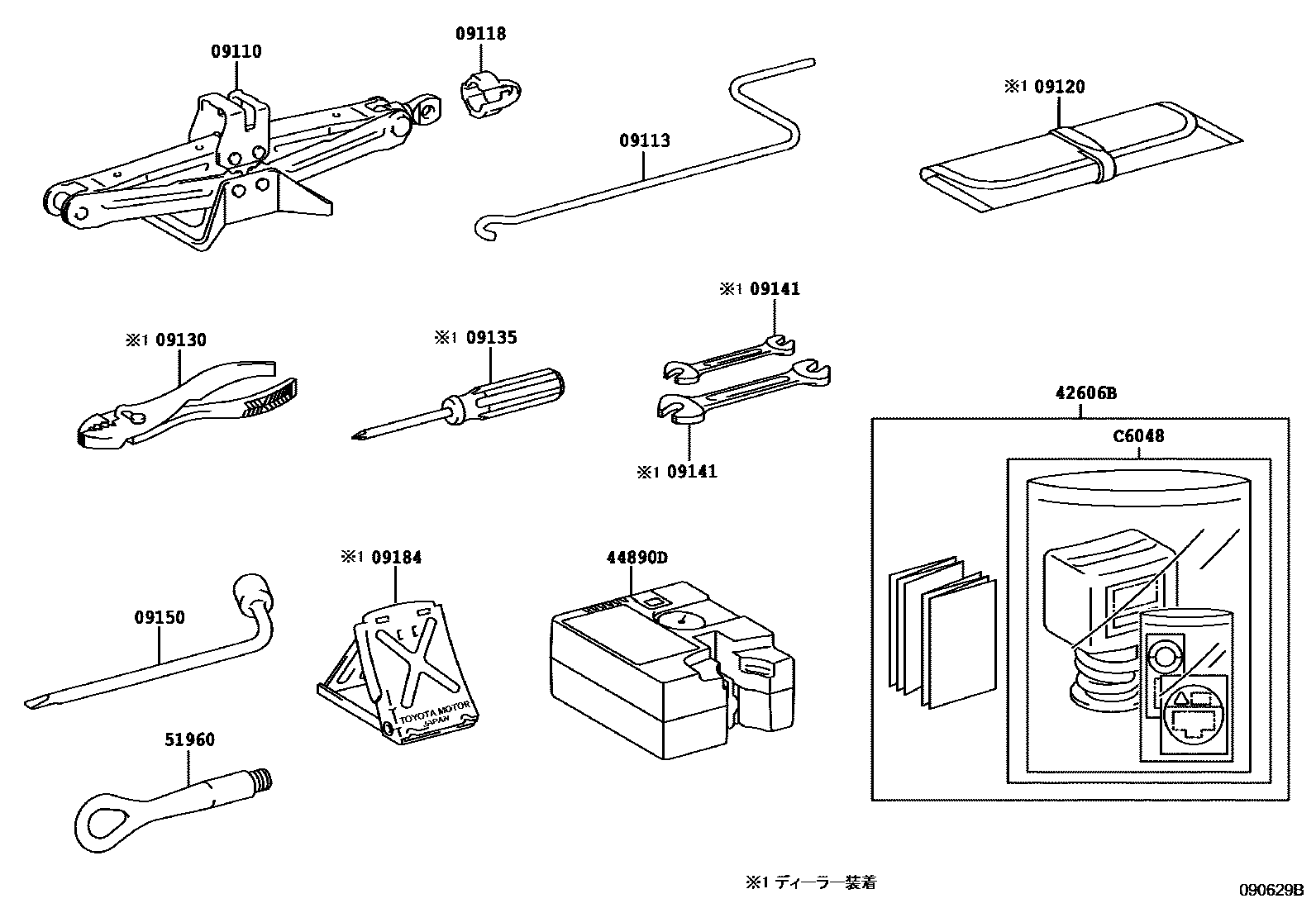

STANDARD TOOL

09110JACK ASSY

main09111-30190iZVW35201208

main09111-33030iZVW35201201-201207

sub09111-76010

09113HANDLE, JACK

main09113-52031iZVW35201201

09118COVER, JACK

main09118-47020iZVW35201301

09120BAG, TOOL

main09120-16030

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-35070iZVW35201201-201303

main09150-76010iZVW35201304

09184STOPPER, WHEEL

main09184-00010

42606BREPAIR KIT, TUBELESS TIRE

main42606-47060iZVW35201201

44890DCOMPRESSOR ASSY, AIR

main44890-74021iZVW35201201-201209

sub44890-74022

main44890-74022iZVW35201210

51960HOOK ASSY, FRONT

main51961-50041iZVW35201201-201305

sub51961-50042

main51961-50042iZVW35201305

C6048REPAIR SET, TIRE

mainC604874041iZVW35201201-201209

subC6048-74042

mainC604874042iZVW35201210-201405

subC6048-74043

mainC604874043iZVW35201406

sub42606-47060

13 parts on this diagram · 1 diagram in section
