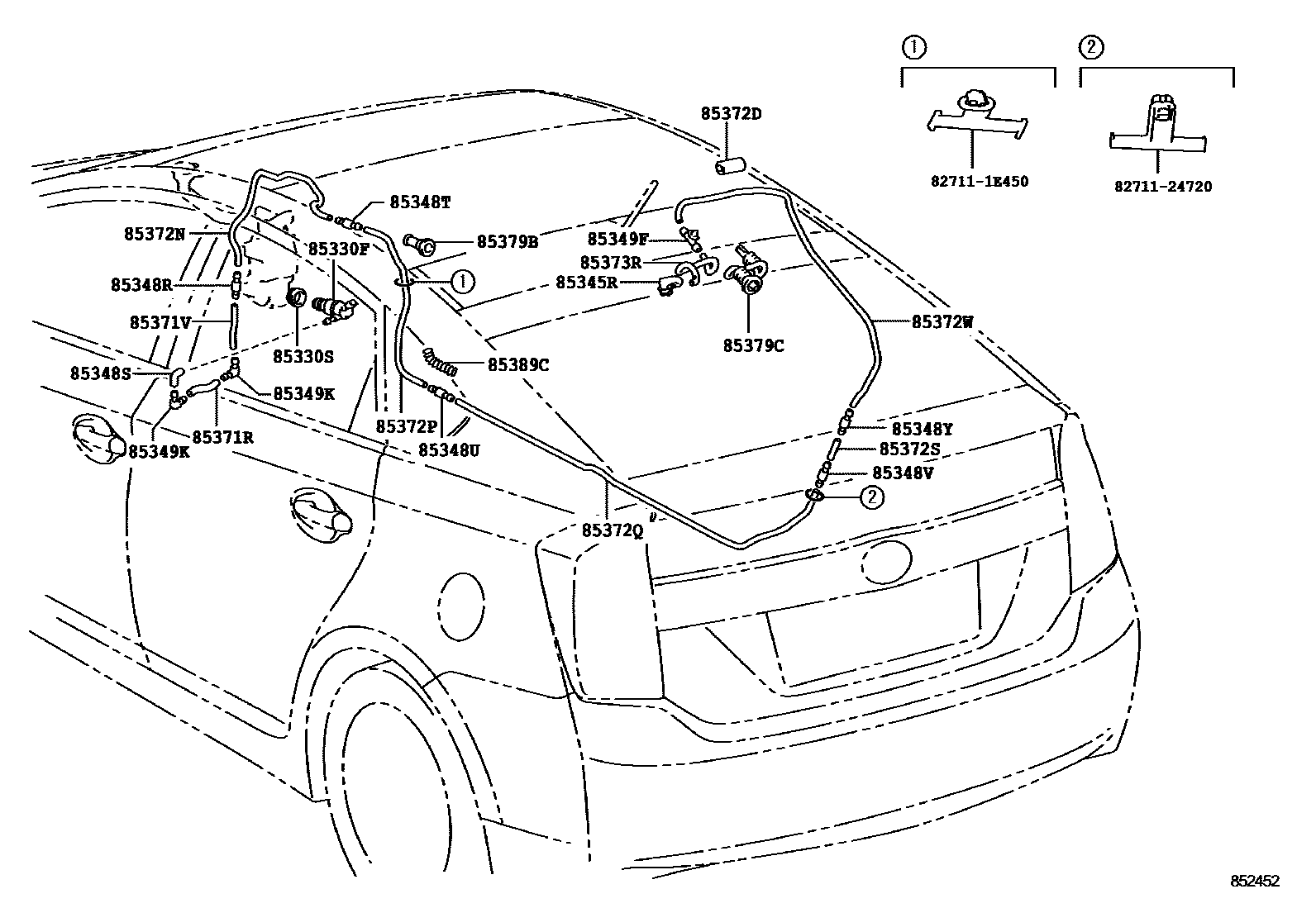

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60180iZVW35200912-201010

85330SBUSH, REAR WASHER JAR

main85336-60300iZVW35200912-201010

85345RNOZZLE, REAR WASHER

main85391-47020iZVW35200912

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iZVW35200912

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iZVW35200912-201010

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iZVW35200912

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iZVW35200912

85348VJOINT, REAR WASHER HOSE, NO.4

main85349-89122iZVW35200912

85348YJOINT, REAR WASHER HOSE, NO.5

main85349-89122iZVW35200912

85349FJOINT, REAR WASHER HOSE, NO.1

main85375-20800iZVW35200912

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200×2iZVW35200912-201010

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iZVW35200912-201010

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main90099-33080iZVW35200912

85372DGROMMET, REAR WASHER HOSE

main85379-72020iZVW35200912-201002

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iZVW35200912-201002

main90099-62054iZVW35201002

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iZVW35200912

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33589iZVW35200912

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iZVW35200912-201002

main90099-62053iZVW35201002

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90446-07001iZVW35200912

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iZVW35200912

85379BGROMMET, WASHER, A

main85379-12850iZVW35200912

85379CGROMMET, REAR WASHER HOSE NO.1

main85373-47040iZVW35200912

85389CPROTECTOR, WASHER

main85389-0C070iZVW35200912

827111E450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E450

8271124720WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24720

25 parts on this diagram · 1 diagram in section
