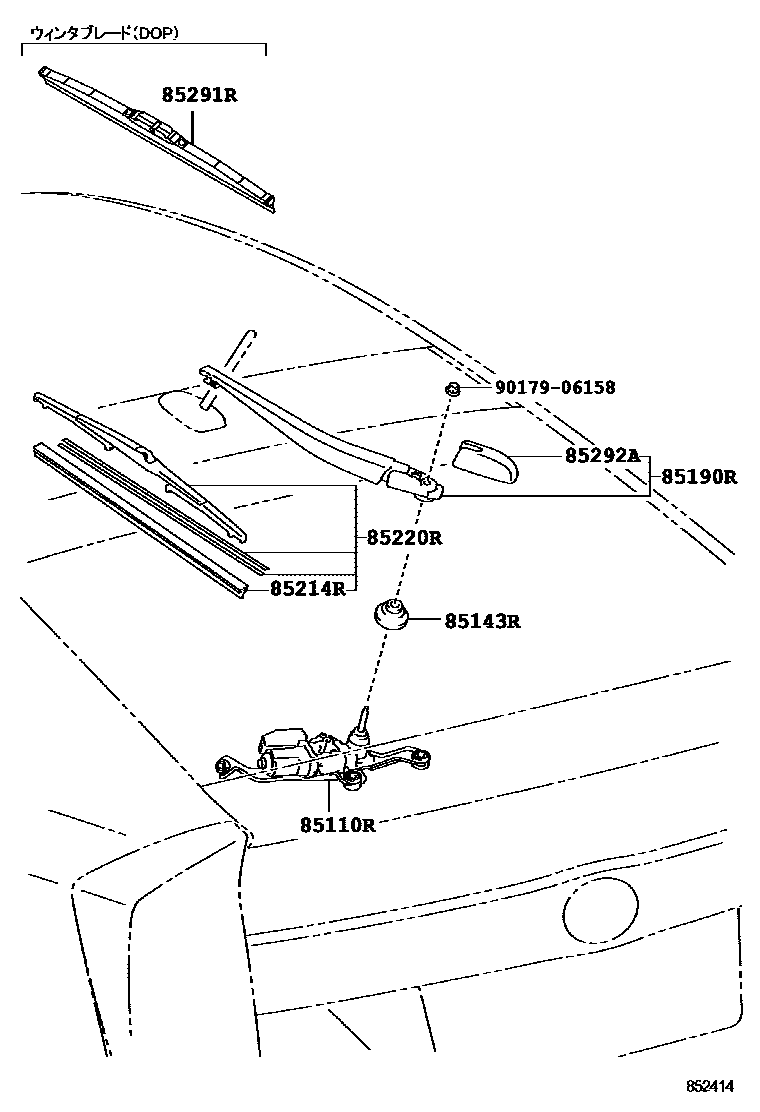

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-47021iZVW35200912

85143RGROMMET, REAR WIPER MOTOR

main85143-72010iZVW35200912

85190RARM ASSY, REAR WIPER

main85241-28120iZVW35200912

85214RRUBBER, REAR WIPER

main85214-10100iZVW35200912

85220RBLADE ASSY, REAR WIPER

main85242-47030iZVW35200912

85291RBLADE,REAR WIPER, WINTER

main85291-44100iZVW35200912

85292ACAP, REAR WIPER ARM HEAD

main85292-28050iZVW35200912

9017906158

main90179-06158

8 parts on this diagram · 1 diagram in section
