WIRING & CLAMP

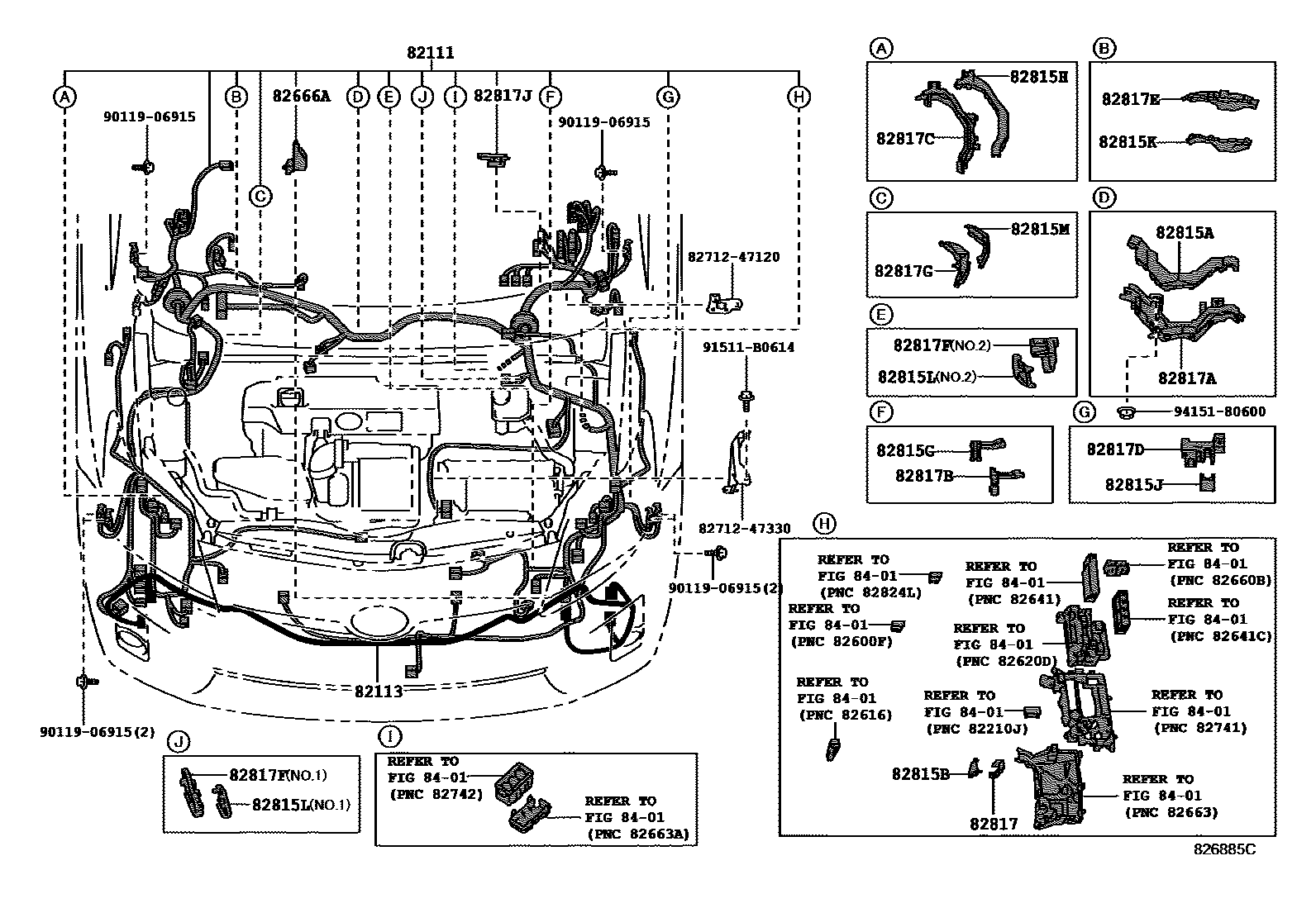

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-47490i200912

82113WIRE, ENGINE ROOM, NO.3

main82113-47050i200912

82666AHOLDER, CONNECTOR NO.2

main82666-47380i200912

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-47830i200912

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-47390i200912

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-47560i200912

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-47780i200912

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-47810i200912

82815KCOVER, WIRING HARNESS PROTECTOR, NO.8

main82815-47570i200912

82815LCOVER, WIRING HARNESS PROTECTOR, NO.9

main82815-47C00i200912

main82815-47C10i200912

82815MCOVER, WIRING HARNESS PROTECTOR, NO.10

main82815-47590i200912

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-47620i200912

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-47B90i200912

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-47800i200912

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-47B50i200912

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-47B70i200912

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-47810i200912

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-47G10i200912

main82817-47G20i200912

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-47830i200912

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-47A00i200912

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8271247120CLAMP, WIRING HARNESS

main82712-47120

8271247330CLAMP, WIRING HARNESS

main82712-47330

9011906915

main90119-06915

91511B0614

main91511-B0614

9415180600

main94151-80600
