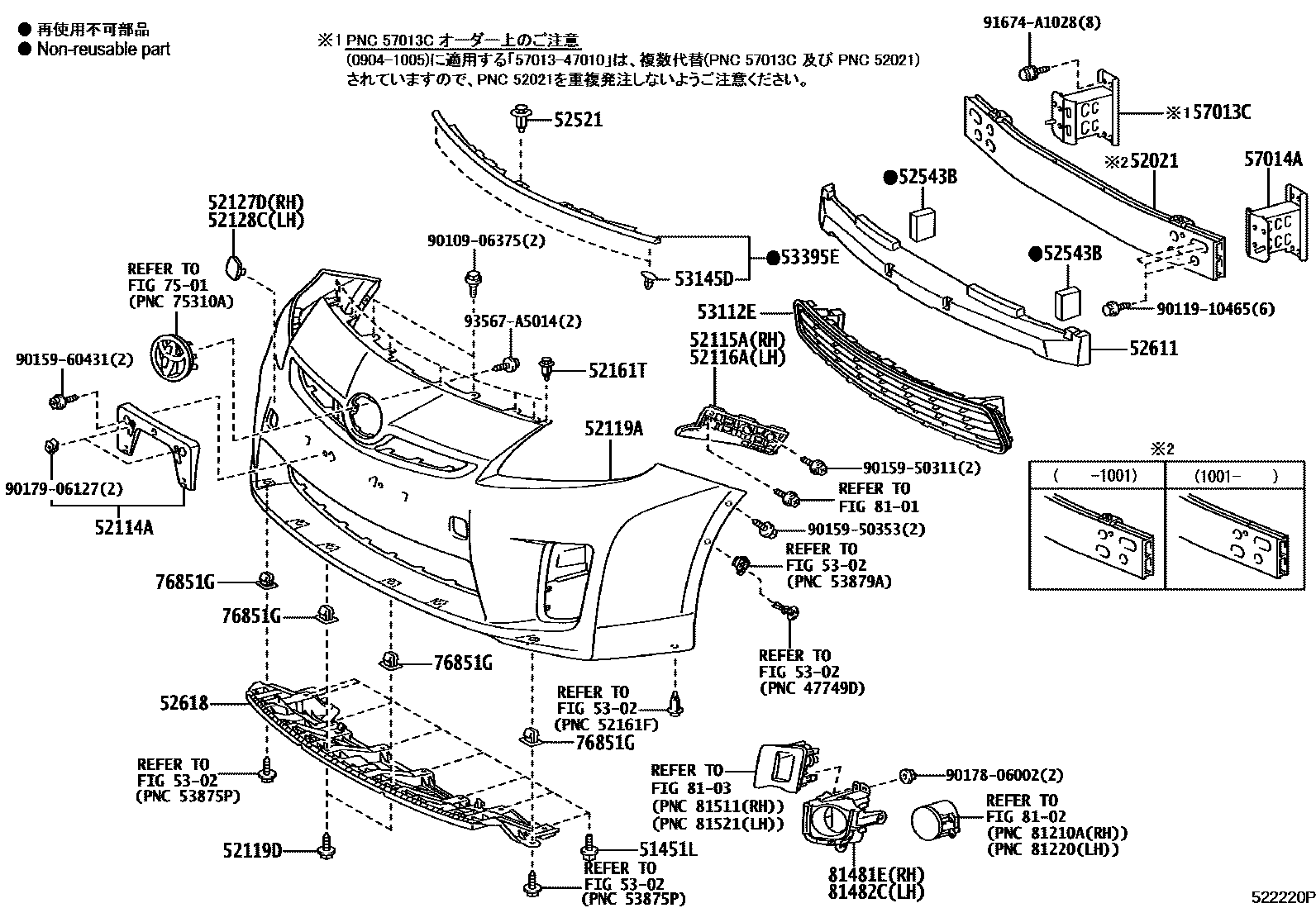

FRONT BUMPER & BUMPER STAY
51451LBOLT, NO.1
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
LIGHT BLUE MICA METALLIC,8U8
52119DSCREW, NO.1
52127DCOVER, FRONT BUMPER HOLE, RH
LIGHT BLUE MICA METALLIC,8U8
52128CCOVER, FRONT BUMPER HOLE, LH
LIGHT BLUE MICA METALLIC,8U8
52161TPIECE, FRONT BUMPER
52521RETAINER, FRONT BUMPER, UPPER CENTER
BLACK
52543BSEAL, FRONT BUMPER
52611ABSORBER, FRONT BUMPER ENERGY
52618ABSORBER, FRONT BUMPER, LOWER
5302HOOD & FRONT FENDER
53112EGRILLE, RADIATOR, LOWER NO.1
53145DCLIP, RADIATOR GRILLE
53395ESEAL, HOOD TO FRONT END PANEL
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
76851GGROMMET, SCREW, NO.1
8101HEADLAMP
8102FOG LAMP
8103FRONT TURN SIGNAL LAMP
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
9010906375
main90109-06375
9011910465
main90119-10465
9015950311
main90159-50311
9015950353
main90159-50353
9015960431
main90159-60431
9017806002
main90178-06002
9017906127
main90179-06127
91674A1028
main91674-A1028
93567A5014
main93567-A5014
36 parts on this diagram · 1 diagram in section
