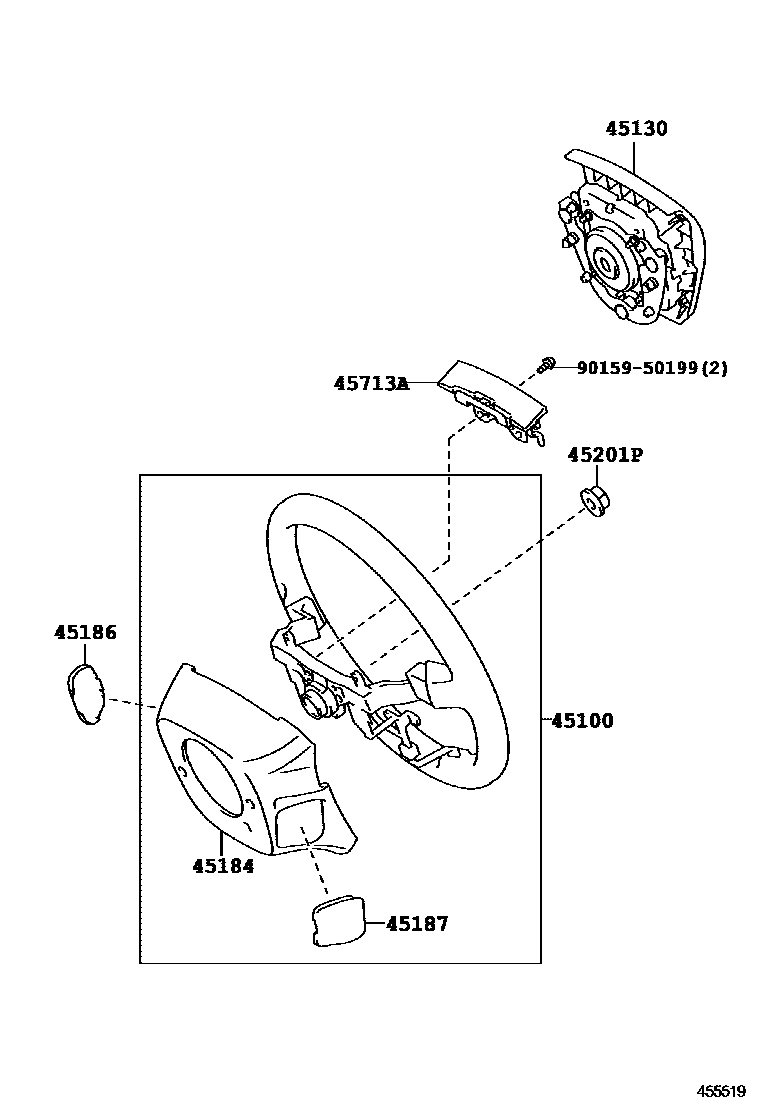

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-47130-B0supersedes 45100-47120-B0iZVW35200912

45130BUTTON ASSY, HORN

main45130-47100-B0iZVW35200912

MIST GRAY,TRIM6#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-47010-B0iZVW35200912

MIST GRAY,TRIM6#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-47020-B0iZVW35200912

MIST GRAY,TRIM6#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-47010-B0iZVW35200912

MIST GRAY,TRIM6#

45201PNUT, STEERING WHEEL SET

main90179-12071iZVW35200912

45713ADAMPER, STEERING SHAKE

main45713-47030iZVW35200912

9015950199

main90159-50199

8 parts on this diagram · 1 diagram in section
