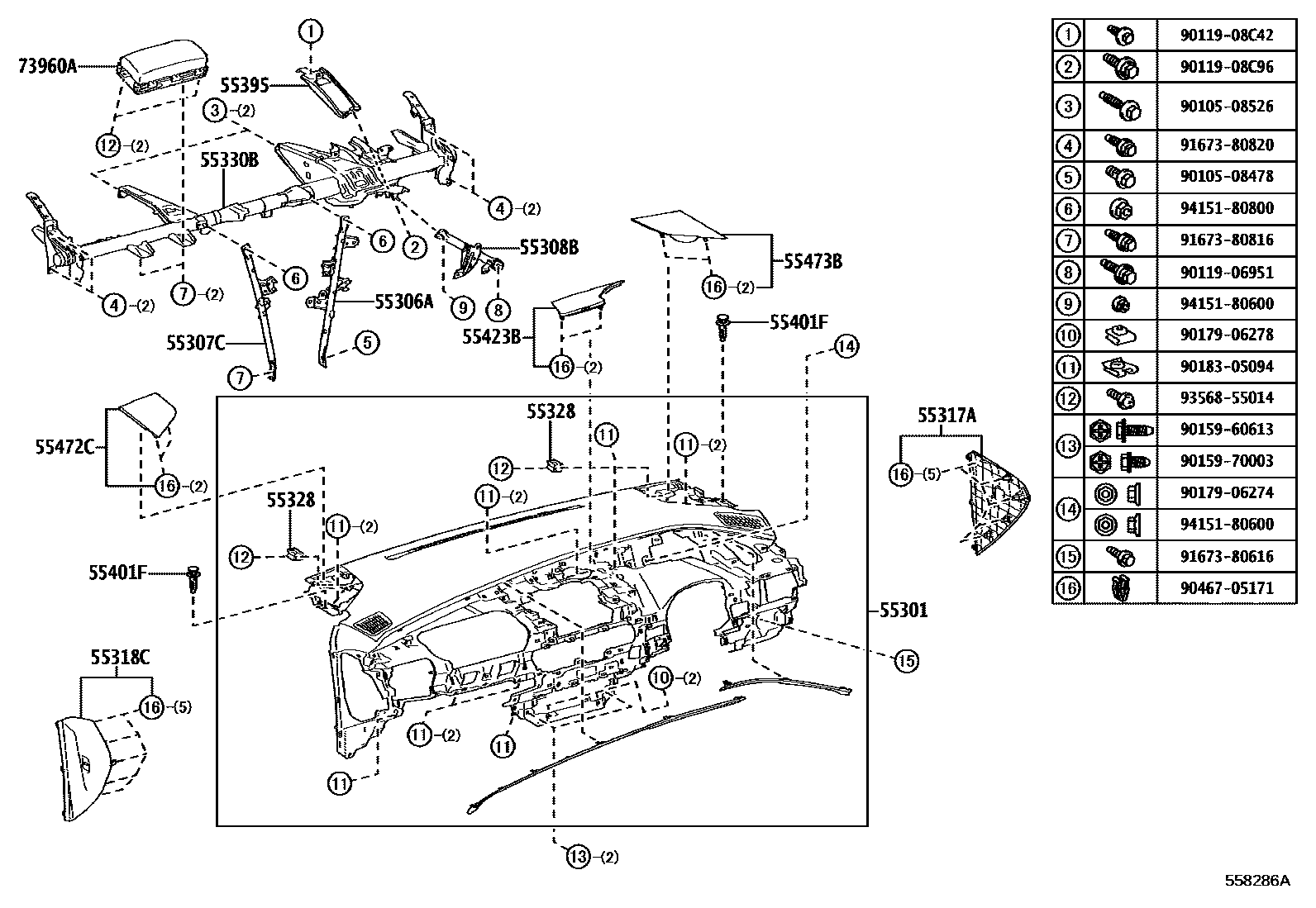

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
DK.GRAY,TRIM20
DK.GRAY,TRIM2#
BLACK,TRIM21
BLACK,TRIM21,24
BLACK,TRIM22
BLACK,TRIM22,24
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM2#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM2#
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55395BRACKET, INSTRUMENT PANEL TO PEDAL
55401FCLIP(FOR SAFETY PAD)
55423BCOVER, INSTRUMENT CLUSTER FINISH PANEL
55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1
DK.GRAY,TRIM20
DK.GRAY,TRIM2#
BLACK,TRIM21
BLACK,TRIM21,22
BLACK,TRIM21,22,24
55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2
DK.GRAY,TRIM20
DK.GRAY,TRIM2#
BLACK,TRIM21,22
BLACK,TRIM21,22,24
BLACK,TRIM21
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
9010508478
main90105-08478
9010508526
main90105-08526
9011906951
main90119-06951
9011908C42
main90119-08C42
9011908C96
main90119-08C96
9015960613
main90159-60613
9015970003
main90159-70003
9017906274
main90179-06274
9017906278
main90179-06278
9018305094
main90183-05094
9046705171
main90467-05171
9167380616
main91673-80616
9167380816
main91673-80816
9167380820
main91673-80820
9356855014
main93568-55014
9415180600
main94151-80600
9415180800
main94151-80800
31 parts on this diagram · 4 diagrams in section
