ENGINE OVERHAUL GASKET KIT

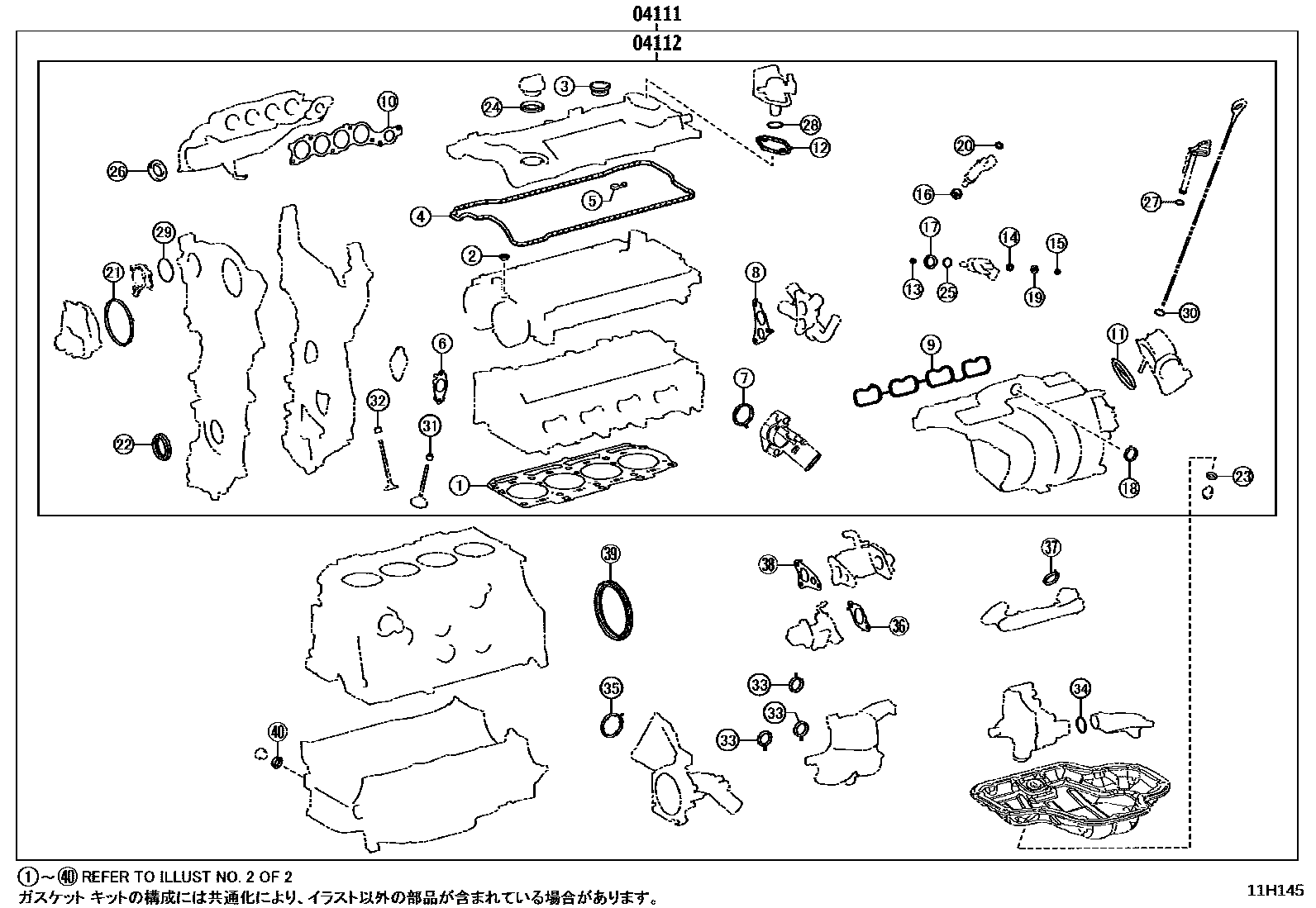

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-24141i202303-202408
sub04111-24142
main04111-24142i202408
main04111-24210i202212-202408
sub04111-24211
main04111-24211i202408
main04111-37502i202212
04112GASKET KIT, ENGINE VALVE GRIND
main04112-24081i202303-202408
sub04112-24082
main04112-24082i202408
main04112-24130i202212-202408
main04112-24131i202408
main04112-37382i202212

2 parts on this diagram · 4 diagrams in section
