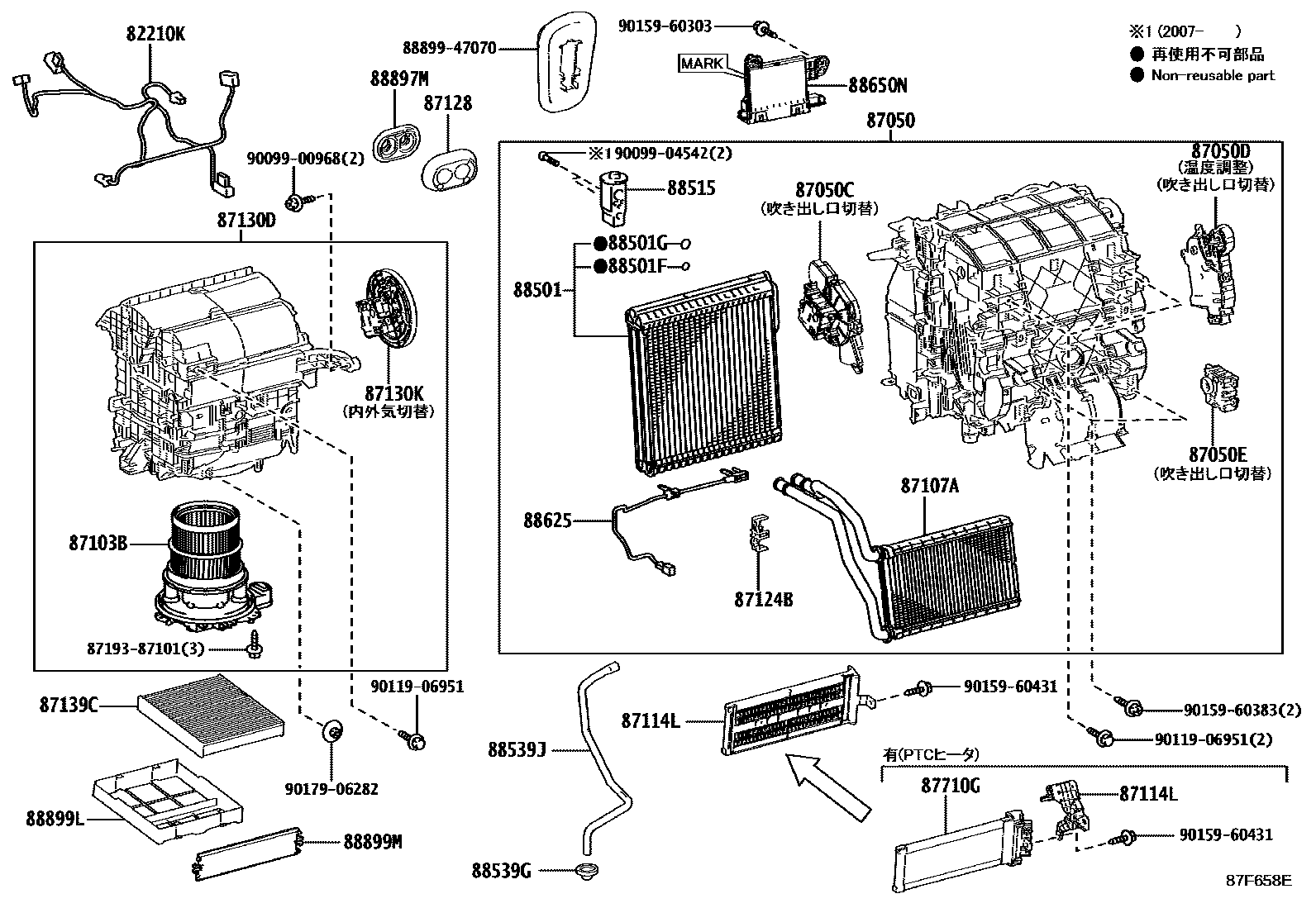

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12140iZVW5#..CBU202007

main82212-47020iZVW5#..CBU201812-202007

87050RADIATOR ASSY, AIR CONDITIONER

main87050-12C90iZVW5#..CBU202007

main87050-47300iZVW5#..CBU201812-202007

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-28230iZVW5#..CBU201511-201812

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-47180iZVW5#..CBU201511-201812

87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3

main87106-47190iZVW5#..CBU201812

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-42130iZVW5#..CBU202007

main87103-58070iZVW5#..CBU201511-201812

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-47070iZVW5#..CBU201812

87114LCOVER, HEATER, NO.2

main87114-47020iZVW5#..CBU201511-201812

main87114-48120iZVW5#..CBU202106

87124BCLAMP, HEATER

main87124-33070iZVW5#..CBU201812

87128GROMMET, HEATER

main87128-28020iZVW5#..CBU201812

87130DBLOWER ASSY

main87130-42480iZVW5#..CBU202007

main87130-47300iZVW5#..CBU201706-201812

main87130-58091iZVW5#..CBU201511-201705

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-28250iZVW5#..CBU201511-201812

87139CFILTER, CLEAN AIR

main87139-58010iZVW5#..CBU201511-201812

87710GQUICK HEATER ASSY

main87710-48020iZVW5#..CBU202106

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-47090iZVW5#..CBU201511-201812

main88501-47100iZVW5#..CBU202007

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iZVW5#..CBU201511-201812

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iZVW5#..CBU201812

88515VALVE, COOLER EXPANSION

main88515-30800iZVW5#..CBU201511-201812

main88515-50320iZVW5#..CBU202007

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010iZVW5#..CBU201511-201812

88539JHOSE, DRAIN COOLER

main88539-47050iZVW5#..CBU201511-201812

88625THERMISTOR, COOLER, NO.1

main88620-28060iZVW5#..CBU201511-201812

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-47340iZVW5#..(A,S)..CBU; ZVW51,55..PREM201511-201607

main88650-47380iZVW5#..(A,S)..CBU; ZVW51,55..PREM201608-201701

main88650-47381iZVW5#..(A,S)..CBU; ZVW51,55..PREM201702-201710

main88650-47540iZVW5#..(A,S)..CBU; ZVW51,55..PREM201711-201812

main88650-47580iZVW5#..(A,E,S)..CBU201812-202007

main88650-47610iZVW5#..PREM201812-202007

main88650-47670iZVW5#..(A,E,S)..CBU202007-202106

main88650-47710iZVW5#..PREM202007-202106

main88650-47770iZVW5#..(E,S)..CBU202106

main88650-47800iZVW5#..PREM202106

main88650-47810iZVW5#..A..CBU; ZVW5#..S..CBU202106

main88650-47360supersedes 88650-47520iZVW5#..(A,E,S)..CBU; ZVW5#..(A,S)..CBU201608-201701

main88650-47361supersedes 88650-47520iZVW5#..(A,E,S)..CBU; ZVW5#..(A,S)..CBU201702-201710

main88650-47510supersedes 88650-47520iZVW5#..(A,E,S)..CBU; ZVW5#..(A,S)..CBU201511-201607

main88650-47530iZVW5#..(A,E,S)..CBU; ZVW5#..(A,S)..CBU201711-201812

main88650-47720iZVW5#..S..CBU202007-202106

88897MGROMMET (FOR HEATER PIPE)

main87128-28010iZVW5#..CBU201511-201812

88899LPARTS, COOLING UNIT

main88899-48070iZVW5#..CBU201511-201812

88899MPLATE, COVER(FOR AIR FILTER)

main88899-28620iZVW5#..CBU201511-201706

main88899-47120iZVW5#..CBU201707-201812

8719387101

main87193-87101

8889947070COVER, EVAPORATOR

main88899-47070

9009900968

main90099-00968

9009904542

main90099-04542

9011906951

main90119-06951

9015960303

main90159-60303

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

34 parts on this diagram · 1 diagram in section
