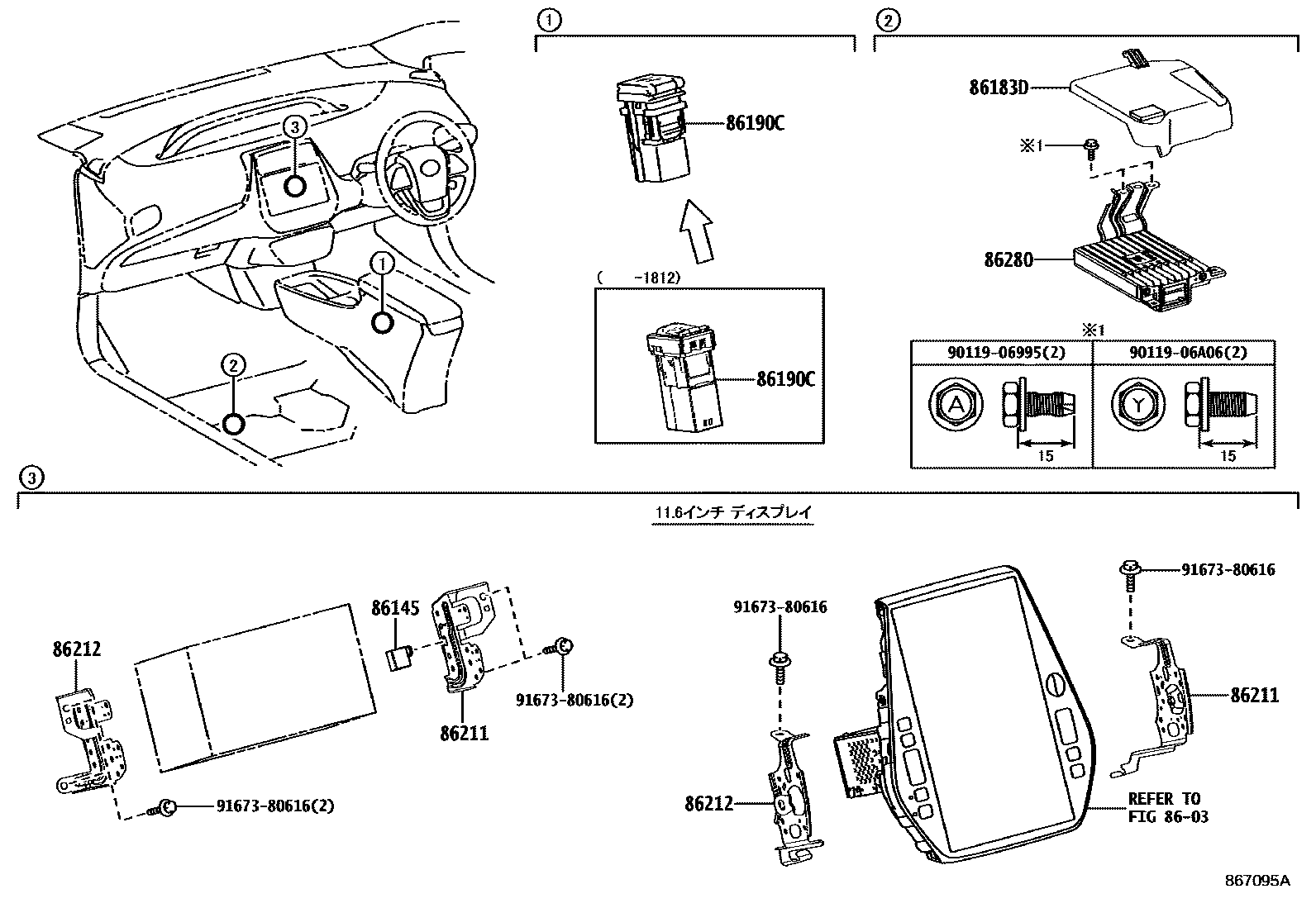

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1������

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86145CONNECTOR, ANTENNA MALE

main86145-52010iZVW5#..CBU201511-201812

86183DCOVER, AUDIO AMPLIFIER

main86183-12020iZVW5#..PREM201812-202106

main86183-47120iZVW51,55..(A,PREM)..CBU201711-201812

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-42031iZVW5#..(A,PREM,S)..CBU202106

main86190-12040iZVW5#..A..CBU; ZVW5#..PREM201812-202106

main86190-42040iZVW51,55..(A,PREM)..CBU201711-201812

86211BRACKET, RADIO, NO.1

main86211-47140supersedes 86211-47130iZVW5#..CBU201511-201812

main86211-47150iZVW5#..A..CBU; ZVW5#..PREM201812-202106

86212BRACKET, RADIO, NO.2

main86212-47140supersedes 86212-47130iZVW5#..(A,PREM,S)..CBU201812-202106

main86212-47150iZVW51,55..(A,PREM)..CBU201711-201812

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-47051iZVW51,55..(A,PREM)..CBU201711-201812

main86280-47060iZVW5#..PREM201812-202106

9011906995

main90119-06995

9011906A06

main90119-06A06

9167380616

main91673-80616

10 parts on this diagram · 2 diagrams in section
