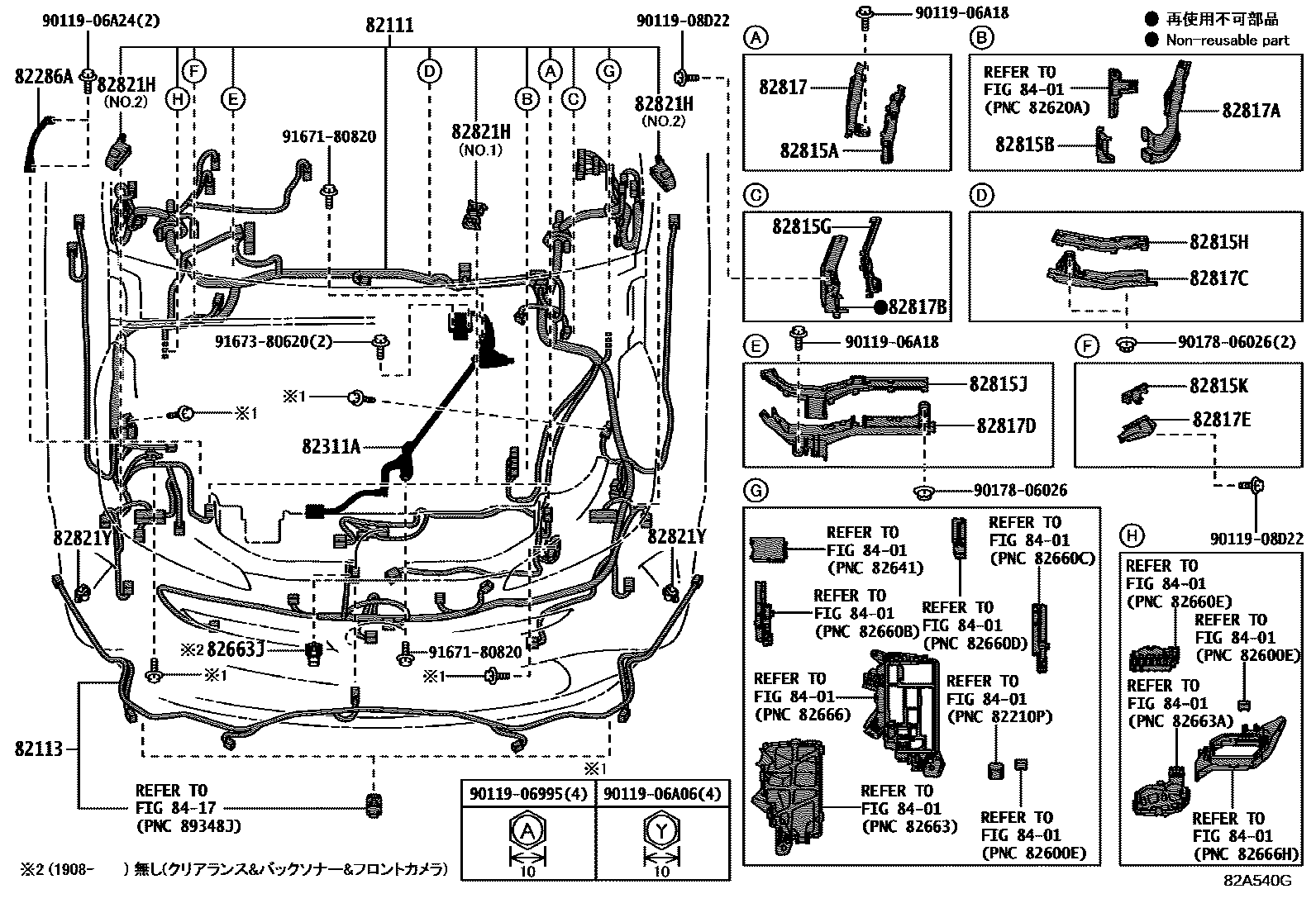

WIRING & CLAMP

0001 1�������� 0002 1����� 0003 1������������ 0004 1��� 0005 1��� & ��� 0006 1��������� 0007 1��� 0008 1����� & ������ 0009 1���� 1/3 0010 1���� 2/3 0011 1���� 3/3

82111WIRE, ENGINE ROOM MAIN

main82111-4E180iZVW51..A..CBU; ZVW51..S..CBU; ZVW55..CBU;ZVW51..PREM201812-201908

main82111-4E181iZVW51..A..CBU; ZVW51..S..CBU; ZVW55..CBU;ZVW51..PREM201908-202007

main82111-4E250iZVW51..(A,S)..CBU201812-201908

main82111-4E251iZVW51..(A,S)..CBU201908-202007

main82111-4EA40iZVW55..CBU;ZVW51..PREM202007-202106

main82111-4EA60iZVW51..(A,S)..CBU202007-202106

main82111-4EK40iZVW51..(A,S)..CBU202106

main82111-4EK50iZVW55..CBU;ZVW51..PREM202106

main82111-47J50supersedes 82111-47J40iZVW50..CBU201511-201605

main82111-47J51supersedes 82111-47J41iZVW50..CBU201606-201711

main82111-47J70supersedes 82111-47J61iZVW51..E201511-201605

main82111-47J71supersedes 82111-47J61iZVW51..E201606-201812

main82111-47J80supersedes 82111-47J40iZVW50..CBU; ZVW51..(A,PREM)..CBU201511-201605

main82111-47J81supersedes 82111-47J41iZVW50..CBU; ZVW51..(A,PREM)..CBU201606-201711

main82111-47J90supersedes 82111-47J80iZVW50..CBU; ZVW51..(A,PREM)..CBU201511-201605

main82111-47J91supersedes 82111-47J81iZVW50..CBU; ZVW51..(A,PREM)..CBU201606-201711

main82111-47K10supersedes 82111-47K00iZVW55..S..CBU201511-201605

main82111-47K11supersedes 82111-47K01iZVW55..S..CBU201606-201711

main82111-47K20supersedes 82111-47K00iZVW55..(A,PREM)..CBU; ZVW55..S..CBU201511-201605

main82111-47K21supersedes 82111-47K01iZVW55..(A,PREM)..CBU; ZVW55..S..CBU201606-201711

main82111-47K30supersedes 82111-47K00iZVW55..(A,PREM)..CBU; ZVW55..S..CBU201511-201605

main82111-47K31supersedes 82111-47K21iZVW55..(A,PREM)..CBU; ZVW55..S..CBU201606-201711

main82111-47R30supersedes 82111-47J61iZVW51..E201511-201605

main82111-47R31supersedes 82111-47J61iZVW51..E201606-201812

main82111-47R40supersedes 82111-47J61iZVW51..E201511-201605

main82111-47R41supersedes 82111-47J61iZVW51..E201606-201812

main82111-47X50supersedes 82111-47Y60iZVW50..CBU201711-201812

main82111-47X60supersedes 82111-47Y60iZVW50..CBU201711-201812

main82111-47X70supersedes 82111-47Y60iZVW50..CBU; ZVW51..(A,PREM)..CBU201711-201812

main82111-47X80supersedes 82111-47Y60iZVW50..CBU; ZVW51..(A,PREM)..CBU201711-201812

main82111-47Y00supersedes 82111-47X90iZVW55..S..CBU201711-201812

main82111-47Y20supersedes 82111-47X90iZVW55..(A,PREM)..CBU; ZVW55..S..CBU201711-201812

main82111-47Y30supersedes 82111-47X90iZVW55..(A,PREM)..CBU; ZVW55..S..CBU201711-201812

main82111-4E190iZVW5#..(A,PREM,S)..CBU; ZVW51..A..CBU; ZVW51..S..CBU201812-201908

main82111-4E191iZVW5#..(A,PREM,S)..CBU; ZVW51..A..CBU; ZVW51..S..CBU201908-202007

main82111-4E210supersedes 82111-4E200iZVW51..E201812-201908

main82111-4E211supersedes 82111-4E201iZVW51..E201908-202007

main82111-4E330supersedes 82111-4E200iZVW51..E201812-201908

main82111-4E331supersedes 82111-4E201iZVW51..E201908-202007

main82111-4E780iZVW5#..(A,PREM)..CBU; ZVW5#..S..CBU202007-202106

main82111-4E790iZVW5#..(A,PREM)..CBU; ZVW5#..S..CBU202007-202106

main82111-4E791iZVW5#..(A,PREM)..CBU; ZVW5#..A..CBU; ZVW5#..S..CBU202106

main82111-4E810iZVW5#..(A,PREM,S)..CBU202007-202106

main82111-4E811iZVW5#..(A,PREM,S)..CBU202106

main82111-4E820supersedes 82111-4EA50iZVW51..E202007-202106

main82111-4E821supersedes 82111-4EK60iZVW51..E202106

main82111-4EB00supersedes 82111-4EA50iZVW51..E202007-202106

main82111-4EK70iZVW5#..(A,PREM)..CBU; ZVW5#..A..CBU; ZVW5#..S..CBU202106

82113WIRE, ENGINE ROOM, NO.3

main82113-47210iZVW5#..(A,PREM)..CBU201812-201908

main82113-47390iZVW50,55..S..CBU; ZVW51,55..(A,PREM)..CBU201511-201812

main82113-47421iZVW5#..(E,S)..CBU202007

main82113-47310iZVW50,55..S..CBU201511-201812

main82113-47420iZVW5#..(E,S)..CBU; ZVW5#..S..CBU201812-201908

main82113-47520supersedes 82113-47211iZVW5#..(A,PREM)..CBU201908

main82113-47530iZVW5#..S..CBU202106

main82113-47540iZVW5#..(E,S)..CBU; ZVW5#..S..CBU201908-202007

82286AWIRE, EARTH, NO.2

main82286-47010iZVW5#..CBU201511-201812

82311AWIRE, AIR CONDITIONER

main821H2-47010iZVW5#..CBU201511-201812

82663JCOVER, CONNECTOR HOLDER

main82821-47410iZVW5#..(E,S)..CBU201908-202007

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-47880iZVW5#..CBU201812

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-47C20iZVW5#..CBU201812

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-47C90iZVW5#..CBU201511-201812

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-47D00iZVW5#..CBU201812

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-47D30iZVW5#..CBU201511-201812

82815KCOVER, WIRING HARNESS PROTECTOR, NO.8

main82815-47D40iZVW5#..CBU201812

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-47N30iZVW5#..CBU201511-201812

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-47N40iZVW5#..CBU201812

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-47N60iZVW5#..CBU201511-201812

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-47N70iZVW5#..CBU201511-201812

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-47P00iZVW5#..CBU201812

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-47P10iZVW5#..CBU201511-201812

82821HCOVER, CONNECTOR

main82821-30650×2iZVW5#..CBU201812

main82821-50780×2iZVW5#..CBU201812

82821YCOVER, CONNECTOR

main82821-47270×2iZVW5#..(E,S)..CBU; ZVW5#..S..CBU201812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

9011906995

main90119-06995

9011906A06

main90119-06A06

9011906A18

main90119-06A18

9011906A24

main90119-06A24

9011908D22

main90119-08D22

9017806026

main90178-06026

9167180820

main91671-80820

9167380620

main91673-80620

29 parts on this diagram · 11 diagrams in section
