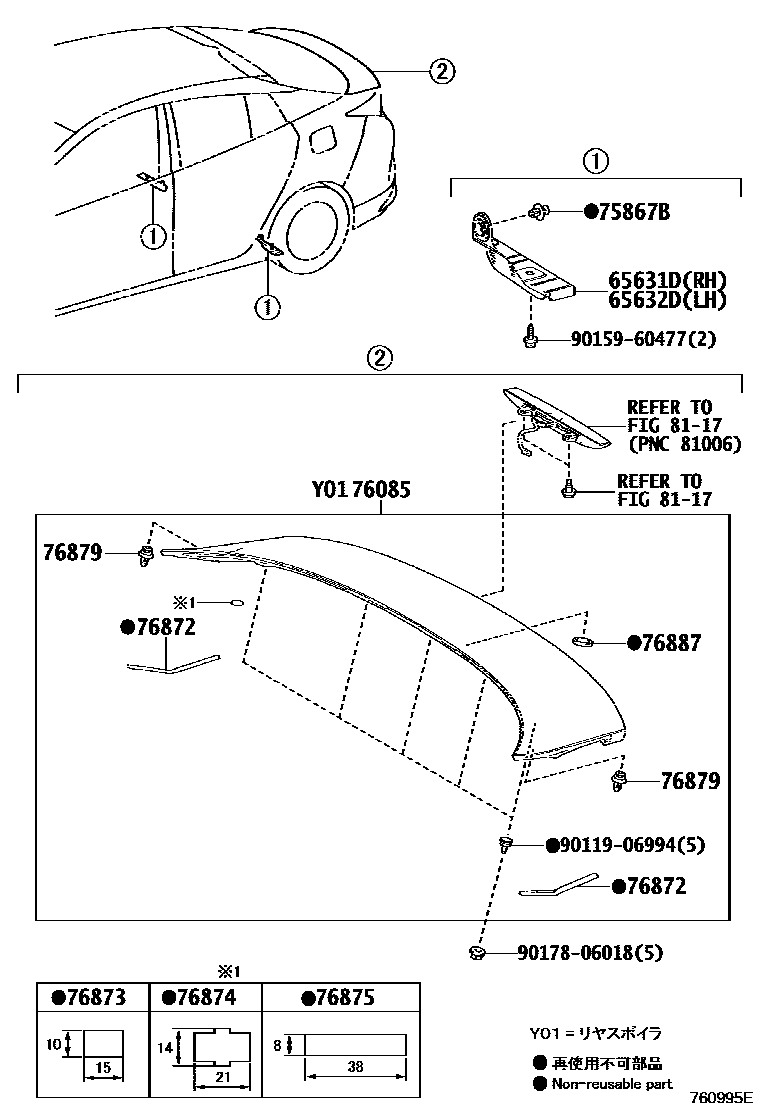

MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-47080iZVW5#..CBU201812

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-47080iZVW5#..CBU201511-201812

75867BCLIP, ROCKER PANEL MOULDING

main90467-07222×2iZVW5#..CBU201511-201812

76085SPOILER SUB-ASSY, REAR

main76085-47913-A0iZVW5#..CBU201511-201704

SUPER WHITE 2,040

main76085-47913-A1iZVW5#..(PREM,S)..CBU; ZVW51,55..(A,E)..CBU201511-201704

WHITE PEARL CS.,070; WHITE PEARL CS.,070 ,2QJ

main76085-47913-B0iZVW5#..CBU201511-201704

SILVER ME.,1F7

main76085-47913-B1iZVW5#..CBU201511-201704

GRAY ME.,1G3

main76085-47913-C1iZVW5#..CBU201511-201704

ATTITUDE BLACK MC.,218

main76085-47913-D3iZVW5#..(A,E,S)..CBU; ZVW51,55..PREM201511-201704

EMOTIONAL RED,2PG ,3T7; EMOTIONAL RED,3T7

main76085-47913-E2iZVW50,55..S..CBU; ZVW51,55..(A,E,PREM)..CBU201511-201704

STEEL BLONDE,2RB ,4X1; STEEL BLONDE,4X1

main76085-47913-G0iZVW5#..CBU201511-201704

THERMO-TECT LIME GREEN,6W7

main76085-47913-J1iZVW50,55..S..CBU; ZVW51,55..(A,E,PREM)..CBU201511-201704

DK.BLUE M.M.,2RC ,8W7; DK.BLUE M.M.,8W7

main76085-47915-A0iZVW5#..CBU201812

SUPER WHITE 2,040

main76085-47915-A1iZVW5#..(PREM,S)..CBU; ZVW51,55..(A,E)..CBU201704-201812

WHITE PEARL CS.,070; WHITE PEARL CS.,070 ,2QJ

main76085-47915-A2iZVW5#..(A,S)..CBU; ZVW5#..E,PREM202007

PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2XC

main76085-47915-B0iZVW5#..CBU201812

SILVER ME.,1F7

main76085-47915-B1iZVW5#..(A,S)..CBU; ZVW5#..E,PREM201812

GRAY ME.,1G3; GRAY ME.,1G3 ,2XD

main76085-47915-C1iZVW5#..CBU201704-201812

ATTITUDE BLACK MC.,218

main76085-47915-C2iZVW5#..CBU202106

BLACKISH AGEHA GF.,221

main76085-47915-C3iZVW5#..(A,S)..CBU202106

PRECIOUS BLACK,219

main76085-47915-D3iZVW5#..(A,E,S)..CBU; ZVW51,55..PREM201704-201812

EMOTIONAL RED,2PG ,3T7; EMOTIONAL RED,3T7

main76085-47915-D5iZVW5#..CBU201812

EMOTIONAL RED 2,3U5

main76085-47915-E2iZVW50,55..S..CBU; ZVW51,55..(A,E,PREM)..CBU201704-201812

STEEL BLONDE,2RB ,4X1; STEEL BLONDE,4X1

main76085-47915-G0iZVW5#..CBU201704-201812

THERMO-TECT LIME GREEN,6W7

main76085-47915-J1iZVW50,55..S..CBU; ZVW51,55..(A,E,PREM)..CBU201704-201812

DK.BLUE M.M.,2RC ,8W7; DK.BLUE M.M.,8W7

main76085-47915-J2iZVW5#..CBU201812

BLUE ME.,8X7

76872PROTECTOR, REAR SPOILER, NO.1

main76872-47060×2iZVW5#..CBU201511-201812

76873PROTECTOR, REAR SPOILER, NO.2

main76873-47040×8iZVW5#..CBU201511-201704

76874PROTECTOR, REAR SPOILER, NO.3

main76874-47020×5iZVW5#..CBU201511-201812

76875PROTECTOR, REAR SPOILER, NO.4

main76875-47010×10iZVW5#..CBU201704-201812

76879CLIP, REAR SPOILER, NO.1

main90467-09206×2iZVW5#..CBU201812

76887SEAL, REAR SPOILER

main76887-47010iZVW5#..CBU201511-201812

8117CENTER STOP LAMP

→ Go to FIG 81-17

9011906994

main90119-06994

9015960477

main90159-60477

9017806018

main90178-06018

14 parts on this diagram · 1 diagram in section
