LOCK CYLINDER SET

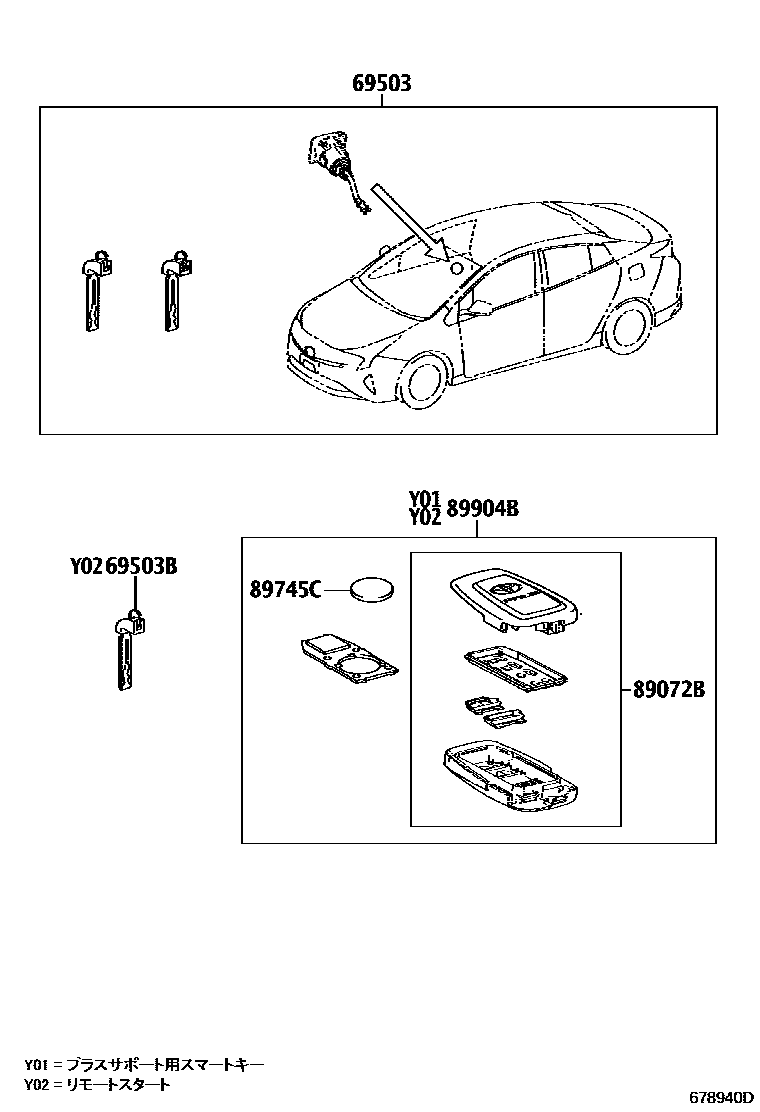

Parts diagram

69503CYLINDER SET, LOCK

main69005-47220i201511-201812

69503BKEY, CUT

main69515-16100×2i202011

main69515-47020×2i201511-201812

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-47180×2i201812

main89072-47200×2i201711-201801

89745CBATTERY, TRANSMITTER

main89745-45010i201511-201812

main89745-50020i202007

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-47120×2i201511-201812

main89904-47700×2i202007

main89904-47110×2i201711-201801

5 parts on this diagram · 1 diagram in section
