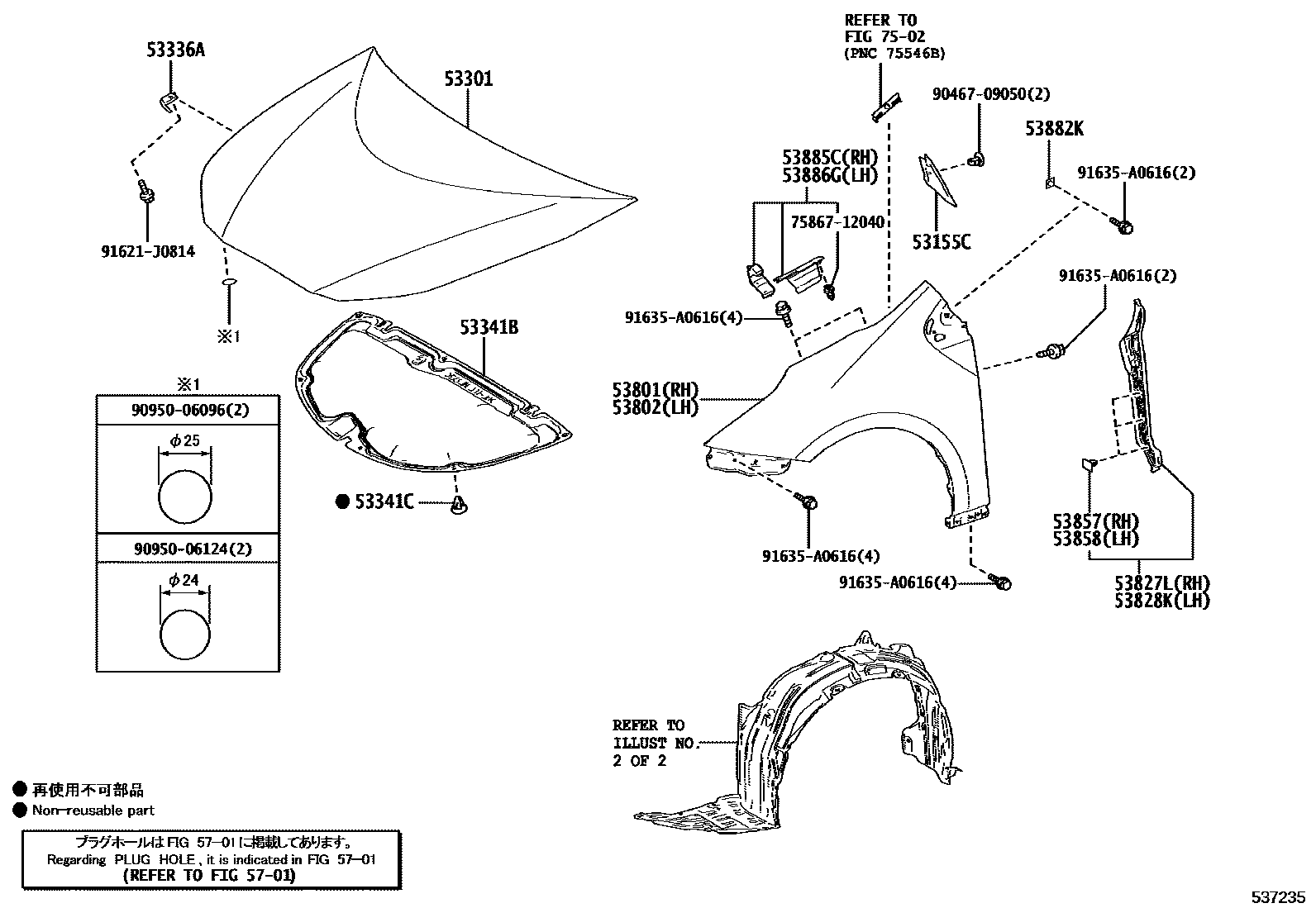

HOOD & FRONT FENDER

0001 1 0002 1��������

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-47010×2iZVW5#..CBU201511-201812

53301HOOD SUB-ASSY

main53301-47110iZVW5#..CBU201812

53336ABRACKET, HOOD STAY

main53336-47010iZVW5#..CBU201511-201812

53341BINSULATOR, HOOD

main53341-47040iZVW5#..CBU201511-201812

main53341-47041iZVW5#..CBU201905

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×6iZVW5#..CBU201812

53801FENDER SUB-ASSY, FRONT RH

main53801-47080iZVW5#..CBU201511-201812

53802FENDER SUB-ASSY, FRONT LH

main53802-47100iZVW5#..CBU201511-201812

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-47050iZVW5#..CBU201511-201812

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-47070iZVW5#..CBU201511-201812

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010×3iZVW5#..CBU201511-201812

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010×3iZVW5#..CBU201511-201812

53882KSEAL, FRONT FENDER

main53882-33060×2iZVW5#..CBU201511-201812

53885CSEAL, FENDER APRON MUDGUARD, RH

main53807-47020iZVW5#..CBU201511-201812

53886GSEAL, FENDER APRON MUDGUARD, LH

main53808-47020iZVW5#..CBU201511-201812

5701HOLE PLUG

→ Go to FIG 57-01

7502FRONT MOULDING

→ Go to FIG 75-02

7586712040MOULDING, FRONT PANEL

main75867-12040

9046709050

main90467-09050

9095006096

main90950-06096

9095006124

main90950-06124

91621J0814

main91621-J0814

91635A0616

main91635-A0616

22 parts on this diagram · 2 diagrams in section
