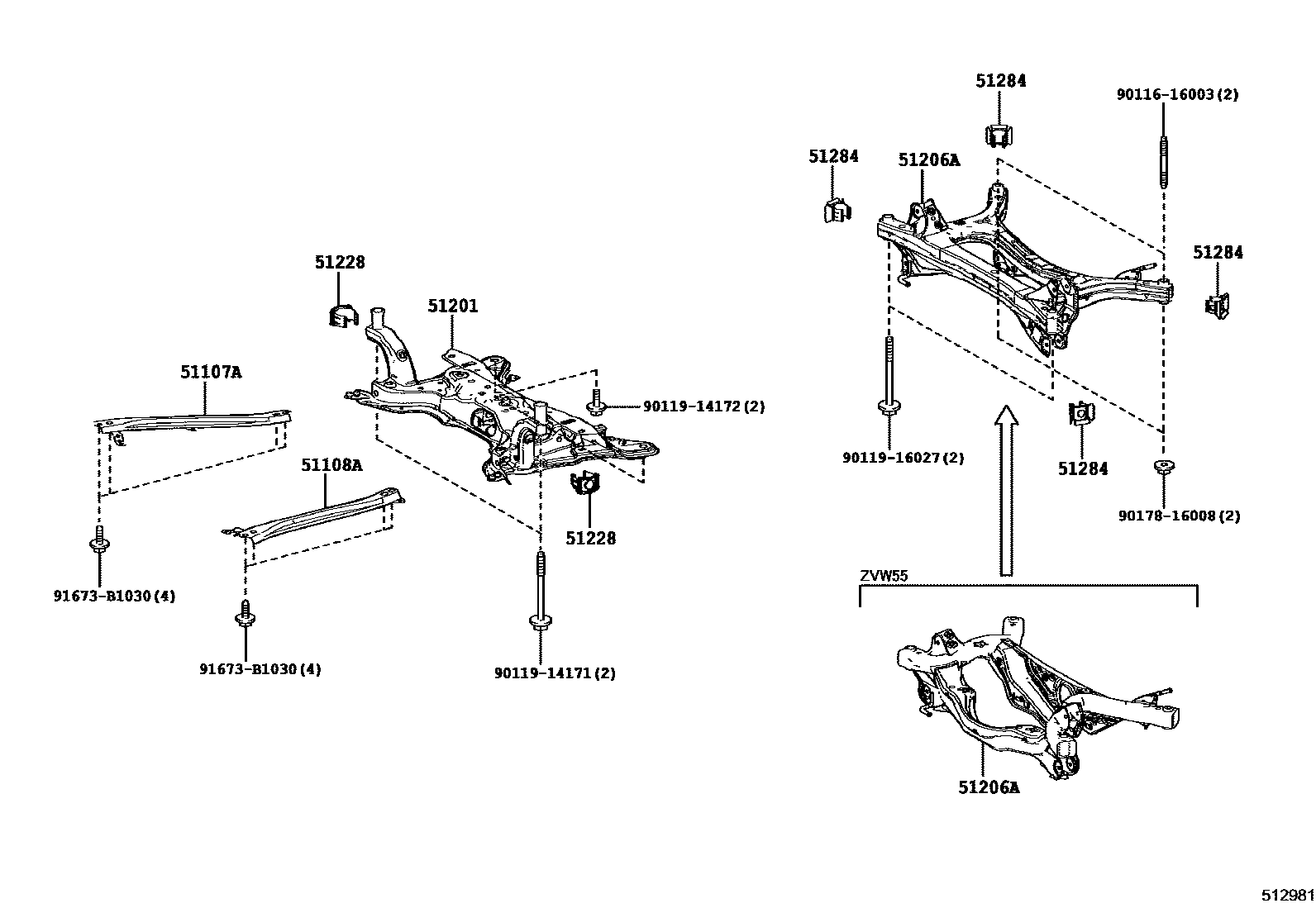

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1������������ 0002 1��������

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-47020iZVW5#..CBU201511-201812

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-47020iZVW5#..CBU201511-201812

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-47070iZVW5#..CBU201511-201704

main51201-47071iZVW5#..CBU201705-201812

main51201-47072iZVW5#..CBU201903

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-47010iZVW50,51201511-201603

main51206-47011iZVW50,51..CBU201603-201702

main51206-47012iZVW51..CBU201812-202011

main51206-47013iZVW51..CBU202012

main51206-47020iZVW55..CBU201511-201702

main51206-47021iZVW55..CBU201703-201704

main51206-47022iZVW55..CBU201704-201811

main51206-47023iZVW55..CBU201812-202203

main51206-47024iZVW55..CBU202204-202207

main51206-47025iZVW55..CBU202208

51228PLATE, SUSPENSION MEMBER SET

main51228-47010×2iZVW5#..CBU201812

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010×4iZVW5#..CBU201511-201812

9011616003

main90116-16003

9011914171

main90119-14171

9011914172

main90119-14172

9011916027

main90119-16027

9017816008

main90178-16008

91673B1030

main91673-B1030

12 parts on this diagram · 2 diagrams in section
