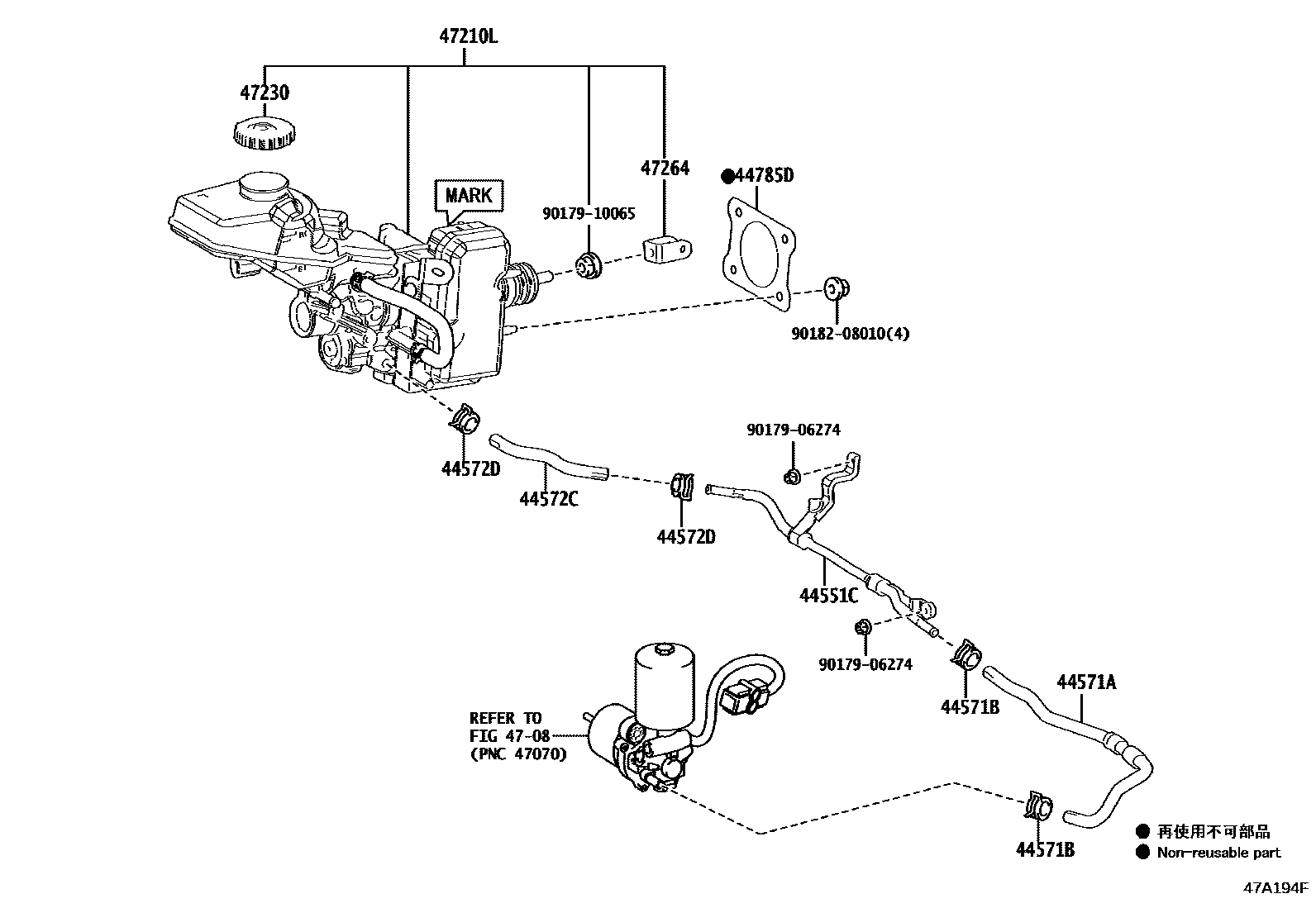

BRAKE MASTER CYLINDER

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-47060iZVW5#..CBU201812

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-47080iZVW5#..CBU201511-201812

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main96137-41501×2iZVW5#..CBU201511-201812

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-47060iZVW5#..CBU201812

44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)

main96137-41501×2iZVW5#..CBU201812

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040iZVW5#..CBU201812

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-47600iZVW5#..(A,PREM,S)..CBU201511-201710

main47050-47601iZVW5#..(A,PREM,S)..CBU201711-201812

main47050-47610iZVW51..E201511-201710

main47050-47611iZVW51..E201711-201812

main47050-47C40iZVW5#..(A,PREM,S)..CBU201904-202007

main47050-47C50iZVW51..E201904-202007

main47050-47E50iZVW5#..(A,PREM,S)..CBU201904-202007

main47050-47E60iZVW51..E201904-202007

main47050-47J00iZVW51..E202007

main47050-47J20supersedes 47050-47G90iZVW5#..(A,PREM,S)..CBU202007

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33330iZVW5#..CBU202002-202006

main47230-47090iZVW5#..CBU201812-202002

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-47010iZVW5#..CBU201511-201812

9017906274

main90179-06274

9017910065

main90179-10065

9018208010

main90182-08010

13 parts on this diagram · 1 diagram in section
