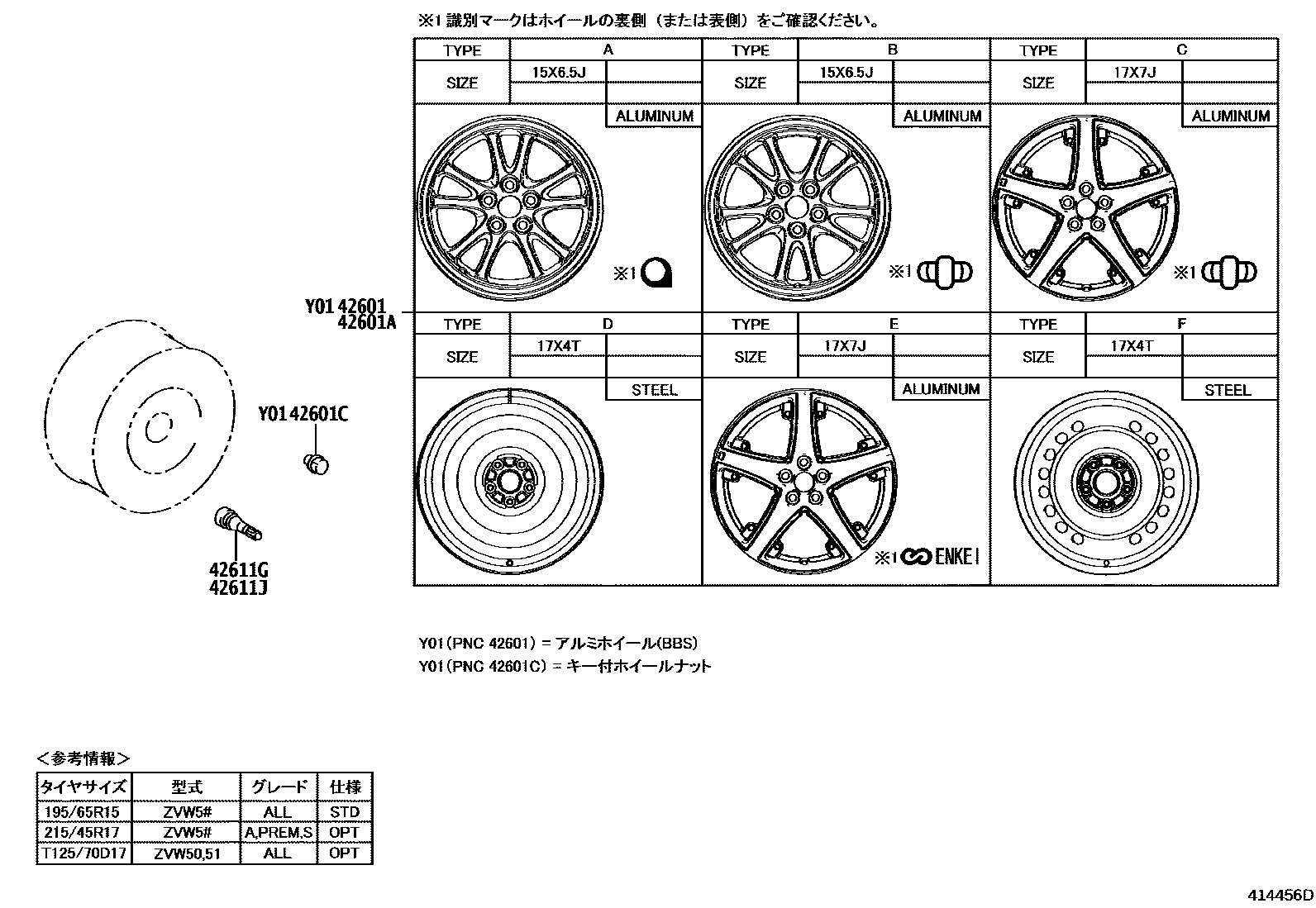

DISC WHEEL & WHEEL CAP

0001 1��������� 0002 1������������� & ��������� 0003 1���������

42601WHEEL, DISC

main42611-47440×4iZVW5#..CBU201812-202012

main42611-47441×4iZVW5#..CBU202012

main42611-47450×4iZVW5#..CBU201812

main42611-47430×4iZVW51,55..PREM201711-201801

main42611-47500×4iZVW5#..(A,PREM,S)..CBU201812

main42611-47510×4iZVW5#..(A,PREM,S)..CBU201812

42601AWHEEL, DISC (FOR SPARE)

main42611-47620iZVW50,51..CBU201511-201608

main42611-47630iZVW50,51..CBU201608-201803

main42611-47631iZVW50,51..CBU201804-201812

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iZVW5#..CBU201511-201812

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iZVW5#..CBU201812

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZVW51..(A,PREM,S)..CBU201812

5 parts on this diagram · 3 diagrams in section
