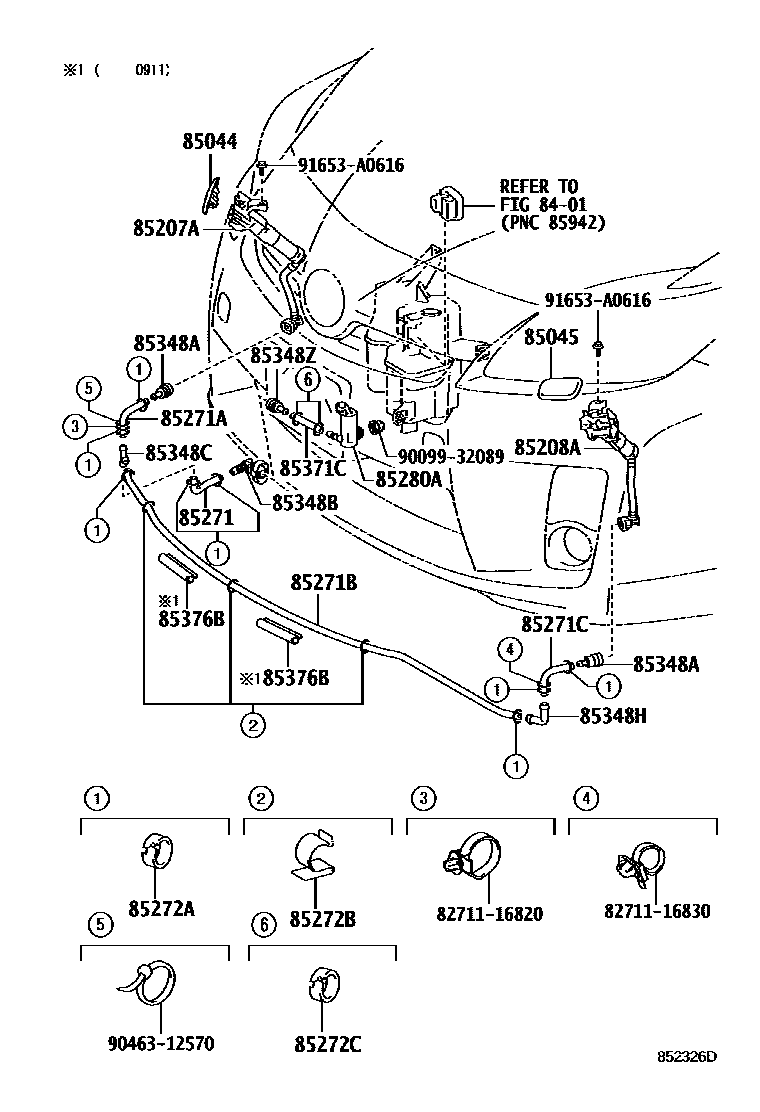

HEADLAMP CLEANER

0001 1 0002 1 0003 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85044-47010-A0iZVW30..(G,S)..CBU200904-201112

main85044-47010-A1iZVW30..(G,S)..CBU200904-201112

main85044-47010-B0iZVW30..(G,S)..CBU200904-201112

main85044-47010-B2iZVW30..(G,S)..CBU201011-201112

main85044-47010-B3iZVW30..(G,S)..CBU201108-201112

main85044-47010-C0iZVW30..(G,S)..CBU200904-201112

main85044-47010-D0iZVW30..(G,S)..CBU200904-201112

main85044-47010-H0iZVW30..(G,S)..CBU200904-201112

main85044-47010-J0iZVW30..(G,S)..CBU200904-201112

main85044-47010-J2iZVW30..(G,S)..CBU200904-201112

main85044-47010-J4iZVW30..(G,S)..CBU201108-201112

main85044-47010-K0iZVW30..(G,S)..CBU201011-201112

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

main85045-47010-A0iZVW30..(G,S)..CBU200904-201112

main85045-47010-A1iZVW30..(G,S)..CBU200904-201112

main85045-47010-B0iZVW30..(G,S)..CBU200904-201112

main85045-47010-B2iZVW30..(G,S)..CBU201011-201112

main85045-47010-B3iZVW30..(G,S)..CBU201108-201112

main85045-47010-C0iZVW30..(G,S)..CBU200904-201112

main85045-47010-D0iZVW30..(G,S)..CBU200904-201112

main85045-47010-H0iZVW30..(G,S)..CBU200904-201112

main85045-47010-J0iZVW30..(G,S)..CBU200904-201112

main85045-47010-J2iZVW30..(G,S)..CBU200904-201112

main85045-47010-J4iZVW30..(G,S)..CBU201108-201112

main85045-47010-K0iZVW30..(G,S)..CBU201011-201112

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-47010iZVW30..(G,S)..CBU200904-201004

main85207-47011iZVW30..(G,S)..CBU201004-201112

main85207-47030iZVW30..(G,S)..CBU201112-201511

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-47010iZVW30..(G,S)..CBU200904-201004

main85208-47011iZVW30..(G,S)..CBU201004-201112

main85208-47030iZVW30..(G,S)..CBU201112-201511

85271HOSE, HEADLAMP CLEANER, NO.1

main90075-15054iZVW30..(G,S)..CBU200904-201112

85271AHOSE, HEADLAMP CLEANER, NO.2

main90075-15055iZVW30..(G,S)..CBU200904-201004

main90075-15062iZVW30..(G,S)..CBU201004-201112

main90075-15074iZVW30..(G,S)..CBU201112

85271BHOSE, HEADLAMP CLEANER, NO.3

main90075-15052iZVW30..(G,S)..CBU200904-201004

main90075-15080iZVW30..(G,S)..CBU201004-201112

main90075-15086iZVW30..(G,S)..CBU201112

85271CHOSE, HEADLAMP CLEANER, NO.4

main90075-15055iZVW30..(G,S)..CBU200904-201004

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-47010iZVW30..(G,S)..CBU201112

main90075-91002×8iZVW30..(G,S)..CBU200904-201004

85272BCLAMP, HEADLAMP CLEANER, NO.2

main85273-47010iZVW30..(G,S)..CBU201112

main90075-90512×3iZVW30..(G,S)..CBU200904-201112

85272CCLAMP, HEADLAMP CLEANER, NO.3

main85272-28030×2iZVW30..(G,S)..CBU201112-201511

main90075-91002×2iZVW30..(G,S)..CBU200904-201112

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-47010iZVW30..(G,S)..CBU200904-201112

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17002iZVW30..(G,S)..CBU201112

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main90075-17001iZVW30..(G,S)..CBU200904-201004

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main90075-17003iZVW30..S..CBU201405

85348HJOINT, HEADLAMP CLEANER HOSE, NO.4

main90075-17001×2iZVW30..(G,S)..CBU201112

main90075-17004iZVW30..(G,S)..CBU200904-201004

85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5

main90075-17002iZVW30..(G,S)..CBU200904-201112

85371CHOSE, HEADLAMP CLEANER, NO.1

main90075-15053iZVW30..(G,S)..CBU200904-201112

85376BPROTECTOR, HEADLAMP CLEANER HOSE, NO.3

main85276-53060×2iZVW30..(G,S)..CBU200904-200911

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

9009932089

main90099-32089

9046312570

main90463-12570

91653A0616

main91653-A0616

25 parts on this diagram · 3 diagrams in section
