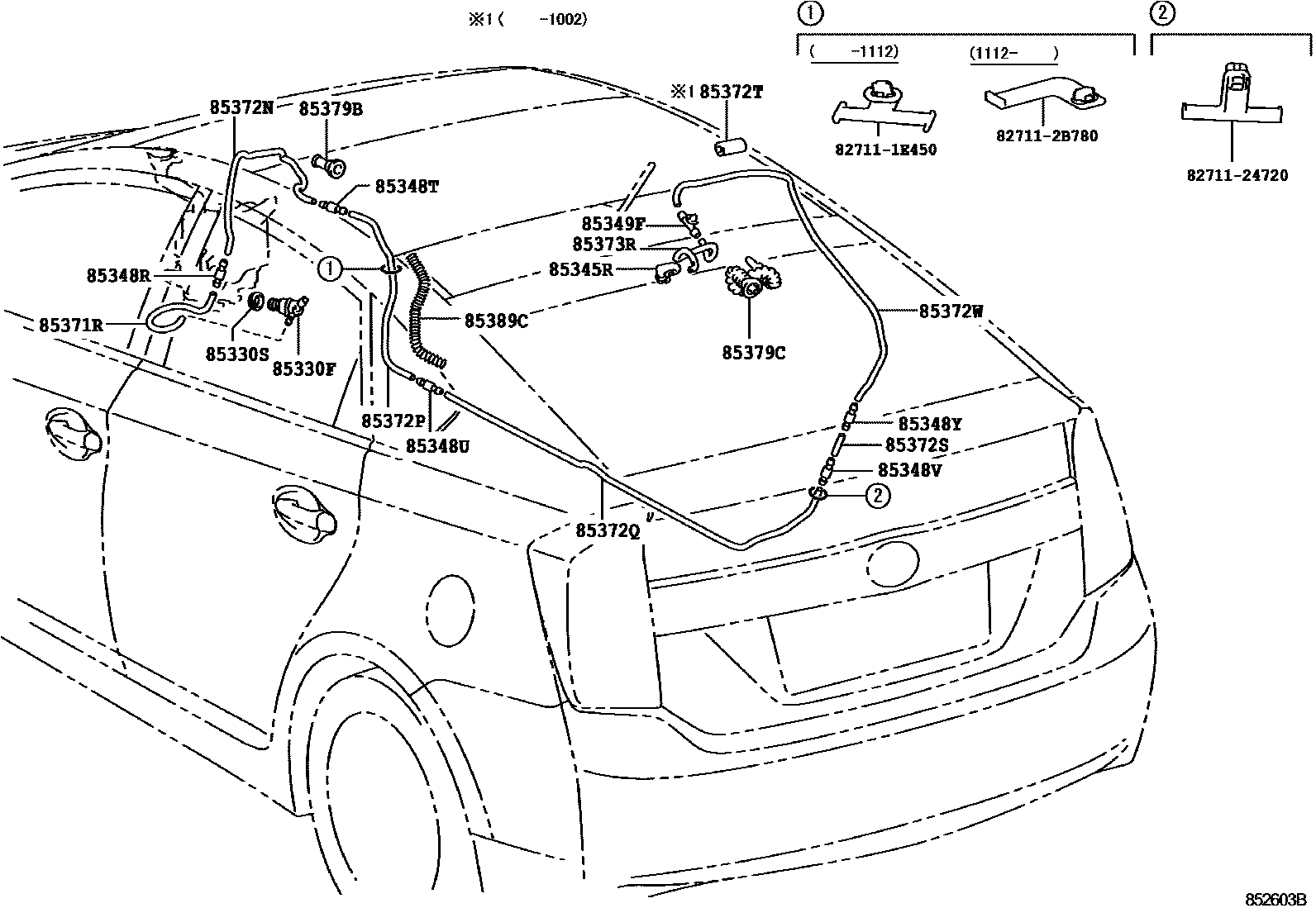

REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372TGROMMET, WASHER
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85379BGROMMET, WASHER, A
85379CGROMMET, REAR WASHER HOSE NO.1
85389CPROTECTOR, WASHER
827111E450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E450
8271124720WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24720
827112B780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B780
23 parts on this diagram · 1 diagram in section
