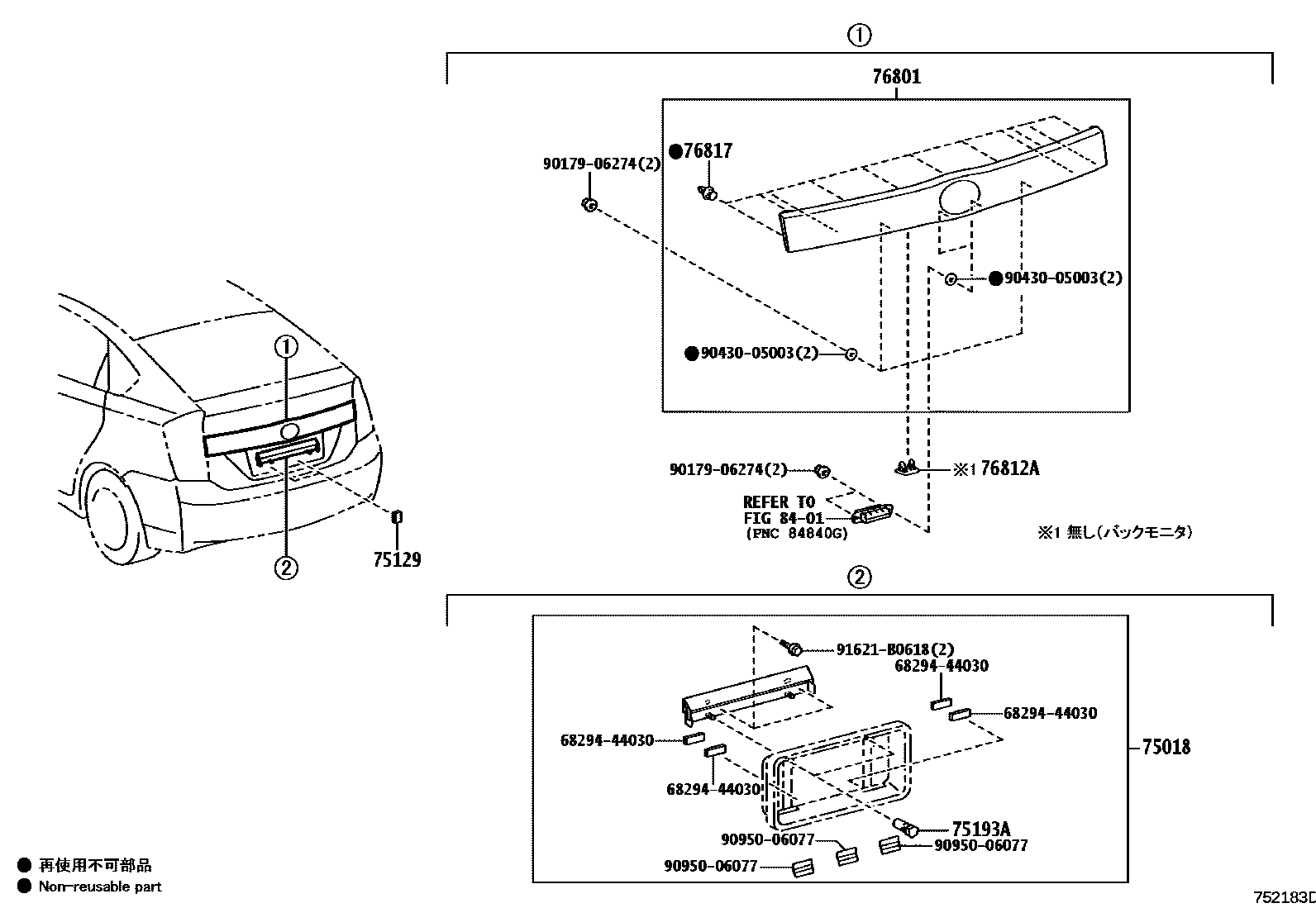

REAR MOULDING
75018FRAME SUB-ASSY, REAR LICENSE PLATE
75129CUSHION, REAR LICENSE PLATE
75193AHOLDER, REAR LICENSE PLATE
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
GRAY ME.,1G2
BLACK,202
RED M.M.,3R3
DEEP RED M.M.,3R9
BRONZE M.M.,4T3
AQUA BLUE ME.,783
FROSTY GREEN MC.,781
DK.BLUE MC.,8T5
ICEBERG SILVER M.M.,8V0
LT.BLUE M.M.,8S7
BLUE ME.,8T7
DK.VIOLET M.M.,9AF
LT.PURPLE M.M.,9AE
DEEP AMETHYST M.M.,9AH
76812AGARNISH, BACK DOOR, OUTSIDE NO.2
76817CLIP, BACK DOOR OUTSIDE GARNISH
8401SWITCH & RELAY & COMPUTER
6829444030DAM, BACK DOOR GLASS ADHESIVE
main68294-44030
9017906274
main90179-06274
9043005003
main90430-05003
9095006077
main90950-06077
91621B0618
main91621-B0618
12 parts on this diagram · 1 diagram in section
