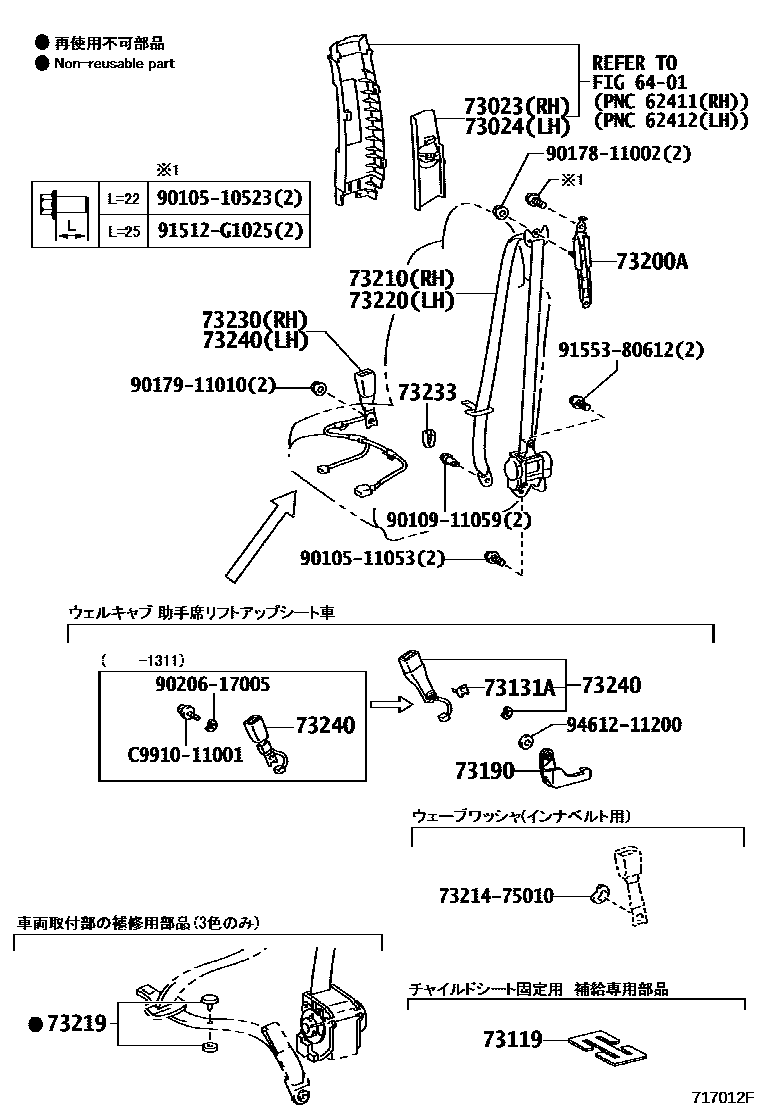

SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� 0002 1��

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53020-B0iZVW30..G..CBU; ZVW30..L; ZVW30..S..CBU201112-201511

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#,6#; LT.GRAY,TRIM1#,2#,6#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53020-B0iZVW30..G..CBU; ZVW30..L; ZVW30..S..CBU201112-201511

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#,6#; LT.GRAY,TRIM1#,2#,6#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iZVW30..CBU201011-201112

73131ABRACKET, SEAT BELT

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iZVW30..CBU201507

main73200-53010×2iZVW30..CBU200904-201112

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47100-B1iZVW30..CBU200904-201002

MD.GRAY,TRIM1#

main73210-47100-B2iZVW30..(G,S)..CBU200904-201002

AQUA,TRIM6#

main73210-47101-B1iZVW30..(L,S)..CBU201003-201112

MD.GRAY,TRIM1#

main73210-47101-B2iZVW30..(G,S)..CBU201003-201112

AQUA,TRIM6#

main73210-47102-B1iZVW30..(G,S)..CBU201112-201310

GRAY/LT.GRAY,TRIM6#

main73210-47102-B3iZVW30..S..CBU201112-201210

BLACK/LT.GRAY,TRIM2#,4#

main73210-47102-B6iZVW30..S..CBU201210-201310

TURQUOISE BLUE/LT.GRAY,TRIM24

main73210-47210-B0iZVW30..(G,S)..CBU201310-201511

GRAY/LT.GRAY,TRIM6#

main73210-47210-B1iZVW30..(G,L)..CBU; ZVW30..S..CBU201310-201511

main73210-47210-B2iZVW30..S..CBU201310-201408

TURQUOISE BLUE/LT.GRAY,TRIM24

main73210-47101-B3iZVW30..G..CBU201011-201112

main73210-47110-B1iZVW30..G..CBU200904-201002

main73210-47110-B2iZVW30..G..CBU200904-201002

main73210-47111-B1supersedes 73210-47101-B1iZVW30..G..CBU201003-201011

main73210-47111-B2iZVW30..G..CBU201003-201112

main73210-47111-B3iZVW30..G..CBU201011-201112

main73210-47112-B1iZVW30..G..CBU201112-201310

main73210-47112-B3iZVW30..G..CBU201112-201310

main73210-47220-B0iZVW30..G..CBU201310-201511

main73210-47220-B1iZVW30..G..CBU201310-201511

73219STOPPER, TONGUE PLATE

main73219-33010iZVW30..CBU200904-201112

main73219-33020iZVW30..CBU201112

main73219-33030iZVW30..CBU200904-201112

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47090-B1iZVW30..CBU200904-201002

MD.GRAY,TRIM1#

main73220-47090-B3iZVW30..(G,S)..CBU200904-201002

AQUA,TRIM6#

main73220-47091-B1iZVW30..(L,S)..CBU201003-201112

MD.GRAY,TRIM1#

main73220-47091-B3iZVW30..(G,S)..CBU201003-201112

AQUA,TRIM6#

main73220-47092-B1iZVW30..(G,S)..CBU201112-201310

GRAY/LT.GRAY,TRIM6#

main73220-47092-B4iZVW30..S..CBU201112-201210

BLACK/LT.GRAY,TRIM2#,4#

main73220-47092-B6iZVW30..S..CBU201210-201310

TURQUOISE BLUE/LT.GRAY,TRIM24

main73220-47180-B0iZVW30..(G,S)..CBU201310-201511

GRAY/LT.GRAY,TRIM6#

main73220-47180-B2iZVW30..(G,L)..CBU; ZVW30..S..CBU201310-201511

main73220-47180-B3iZVW30..S..CBU201310-201408

TURQUOISE BLUE/LT.GRAY,TRIM24

main73220-47091-B4iZVW30..G..CBU201011-201112

main73220-47100-B1iZVW30..G..CBU200904-201002

main73220-47100-B3iZVW30..G..CBU200904-201002

main73220-47101-B1supersedes 73220-47091-B1iZVW30..G..CBU201003-201011

main73220-47101-B3iZVW30..G..CBU201003-201112

main73220-47101-B4iZVW30..G..CBU201011-201112

main73220-47102-B1iZVW30..G..CBU201112-201310

main73220-47102-B4iZVW30..G..CBU201112-201310

main73220-47190-B0iZVW30..G..CBU201310-201511

main73220-47190-B2iZVW30..G..CBU201310-201511

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-47100-B0iZVW30..L200904-201112

MD.GRAY,TRIM1#

main73230-47100-C0iZVW30..L201112-201310

BLACK,TRIM2#

main73230-47110-B0iZVW30..S..CBU201112-201209

MD.GRAY,TRIM24

main73230-47110-C0iZVW30..S..CBU201112-201310

main73230-47110-G0iZVW30..(G,S)..CBU200904-201112

AQUA,TRIM6#

main73230-47320-C0iZVW30..L201310-201511

BLACK,TRIM2#

main73230-47330-B0iZVW30..S..CBU201310-201511

MD.GRAY,TRIM6#

main73230-47330-C0iZVW30..S..CBU201310-201511

main73230-47120-B0supersedes 73230-47110-B0iZVW30..G..CBU201011-201112

main73230-47120-C0iZVW30..G..CBU201011-201112

main73230-47120-G0iZVW30..G..CBU200904-201112

main73230-47220-B0supersedes 73230-47210-B0iZVW30..G..CBU201112-201310

main73230-47220-C0supersedes 73230-47210-C0iZVW30..G..CBU201112-201310

main73230-47350-B0supersedes 73230-47340-B0iZVW30..G..CBU201310-201511

main73230-47350-C0supersedes 73230-47340-C0iZVW30..G..CBU201310-201511

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-B0×2iZVW30..CBU200904-201112

MD.GRAY,TRIM1#,6#

main73233-60020-C0×2iZVW30..G..CBU; ZVW30..L; ZVW30..S..CBU201112-201511

BLACK,TRIM1#,2#,4#,6#; BLACK,TRIM2#; BLACK,TRIM2#,6#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-47060-B0iZVW30..(L,S)..CBU200904-201112

MD.GRAY,TRIM1#

main73240-47060-G0iZVW30..(G,S)..CBU200904-201112

AQUA,TRIM6#

main73240-47090-B0iZVW30..G..CBU; ZVW30..S..CBU201112-201310

MD.GRAY,TRIM1#,25,26,6#; MD.GRAY,TRIM1#,6#

main73240-47090-C0iZVW30..(G,L)..CBU; ZVW30..S..CBU201112-201310

main73240-47140-B0iZVW30..(G,S)..CBU201310-201511

MD.GRAY,TRIM6#

main73240-47140-C0iZVW30..(G,L)..CBU; ZVW30..S..CBU201310-201511

main73240-47060-C0iZVW30..G..CBU201011-201112

main73240-47070-B0supersedes 73240-47060-B0iZVW30..G..CBU200904-201011

main73240-47070-C0iZVW30..G..CBU201011-201112

main73240-47070-G0iZVW30..G..CBU200904-201112

main73240-47100-B0supersedes 73240-47090-B0iZVW30..G..CBU201112-201310

main73240-47100-C0iZVW30..G..CBU201112-201310

main73240-47150-B0iZVW30..G..CBU201310-201511

main73240-47150-C0iZVW30..G..CBU201310-201511

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511053

main90105-11053

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9020617005

main90206-17005

91512G1025

main91512-G1025

9155380612

main91553-80612

9461211200

main94612-11200

C991011001

mainC9910-11001

24 parts on this diagram · 2 diagrams in section
