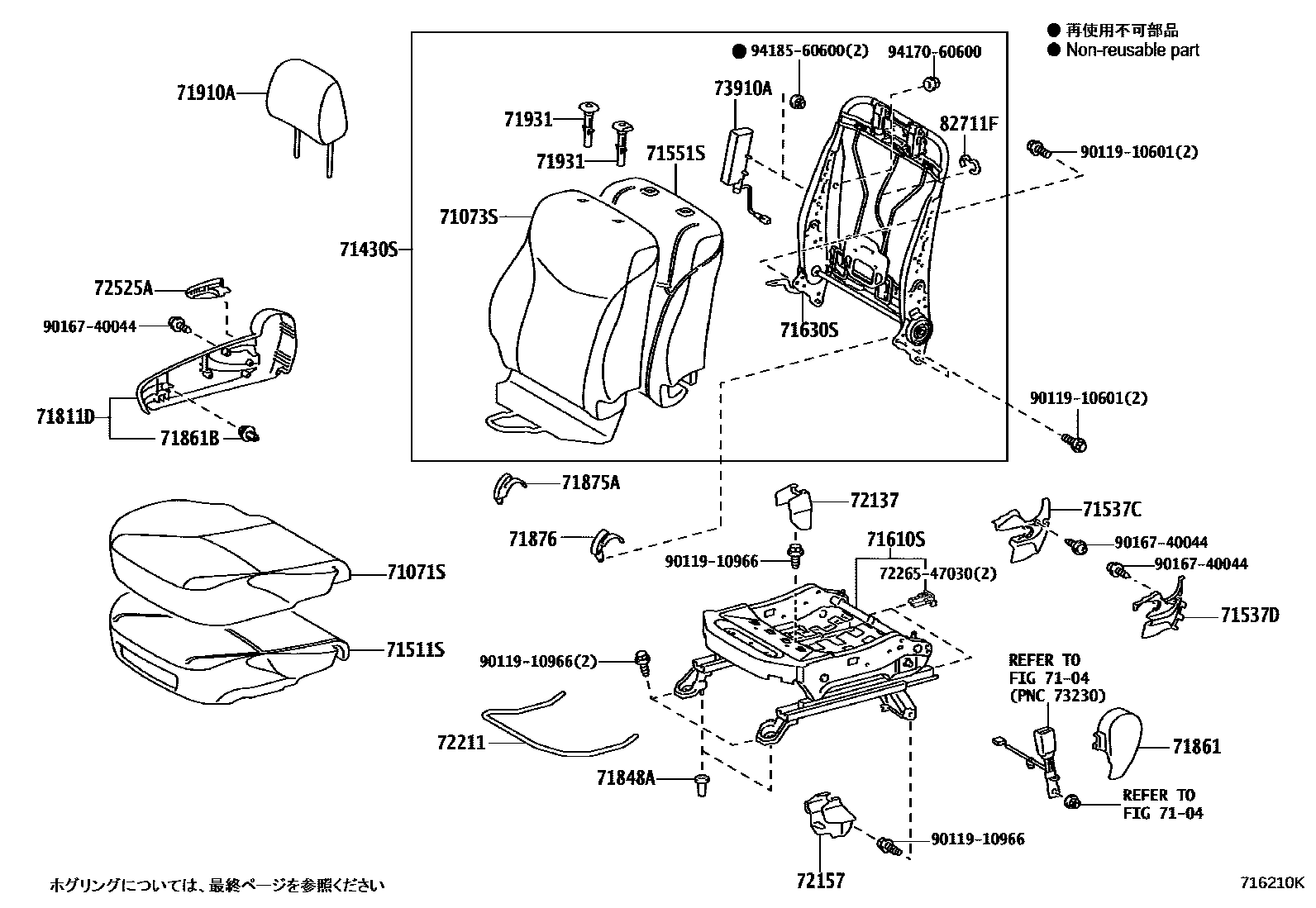

FRONT SEAT & SEAT TRACK

0001 1������ 0002 1������ 0004 1������,��(�������) 0005 1������� 0006 1�������

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-47223-C1iZVW30..S..CBU201112-201511

BLACK,TRIM20

main71071-47223-J1iZVW30..S..CBU201112-201511

BLUE,TRIM21

main71071-47230-B0iZVW30..L200904-201101

MD.GRAY,TRIM1#

main71071-47231-B0iZVW30..L201102-201104

MD.GRAY,TRIM1#

main71071-47232-B2iZVW30..L201105-201112

MD.GRAY,TRIM1#

main71071-47232-C2iZVW30..L201112-201511

BLACK,TRIM2#

main71071-47430-C4iZVW30..G..CBU201112-201210

BLACK,TRIM20

main71071-47430-C5iZVW30..G..CBU201210-201511

BLACK/BLACK/LT.GRAY,TRIM20

main71071-47430-E4iZVW30..G..CBU201112-201210

BROWN,TRIM22

main71071-47430-E5iZVW30..G..CBU201210-201511

BROWN/BLACK/BROWN,TRIM22

main71071-47220-B1supersedes 71071-47241-B3iZVW30..G..CBU; ZVW30..S..CBU200904-201101

main71071-47220-G1supersedes 71071-47430-G6iZVW30..G..CBU; ZVW30..S..CBU200904-201101

main71071-47221-B2supersedes 71071-47241-B3iZVW30..G..CBU; ZVW30..S..CBU201102-201103

main71071-47221-G2supersedes 71071-47430-G6iZVW30..G..CBU; ZVW30..S..CBU201102-201103

main71071-47222-B2supersedes 71071-47241-B3iZVW30..G..CBU; ZVW30..S..CBU201103-201104

main71071-47222-G2supersedes 71071-47430-G6iZVW30..G..CBU; ZVW30..S..CBU201103-201104

main71071-47223-B3supersedes 71071-47241-B3iZVW30..G..CBU; ZVW30..S..CBU201105-201112

main71071-47223-G4supersedes 71071-47430-G6iZVW30..G..CBU; ZVW30..S..CBU201105-201112

main71071-47260-B1supersedes 71071-47241-B3iZVW30..G..CBU200904-201101

main71071-47260-G1supersedes 71071-47430-G6iZVW30..G..CBU201011-201101

main71071-47261-B2iZVW30..G..CBU201102-201103

main71071-47261-G2supersedes 71071-47430-G6iZVW30..G..CBU201102-201103

main71071-47261-K1supersedes 71071-47241-B3iZVW30..G..CBU201011-201103

main71071-47262-B4iZVW30..G..CBU201103-201112

main71071-47262-E1iZVW30..G..CBU201105-201112

main71071-47262-G3supersedes 71071-47430-G6iZVW30..G..CBU201103-201112

main71071-47262-K2iZVW30..G..CBU201108-201112

main71071-47420-C5iZVW30..G..CBU201112-201210

main71071-47420-C6iZVW30..G..CBU201210-201511

main71071-47420-G4supersedes 71071-47430-G6iZVW30..G..CBU201112-201210

main71071-47420-G5supersedes 71071-47430-G6iZVW30..G..CBU201210-201511

main71071-47440-G0supersedes 71071-47223-G5iZVW30..S..CBU201011-201105

main71071-47441-B1supersedes 71071-47223-B3iZVW30..S..CBU201105-201112

main71071-47441-G1supersedes 71071-47223-G5iZVW30..S..CBU201105-201112

main71071-47660-C2iZVW30..S..CBU201112-201210

main71071-47690-E0iZVW30..S..CBU201210-201511

main71071-47710-K0iZVW30..S..CBU201210-201511

main71071-47720-B0iZVW30..S..CBU201210-201408

main71071-47721-C0iZVW30..S..CBU201408-201511

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-47210-B0iZVW30..L200904-201101

MD.GRAY,TRIM1#

main71073-47210-B1iZVW30..L201102-201112

MD.GRAY,TRIM1#

main71073-47350-C5iZVW30..G..CBU201112-201210

BLACK,TRIM20

main71073-47350-C7iZVW30..G..CBU201210-201302

BLACK/BLACK/LT.GRAY,TRIM20

main71073-47350-E4iZVW30..G..CBU201112-201210

BROWN,TRIM22

main71073-47350-E8iZVW30..G..CBU201210-201302

BROWN/BLACK/BROWN,TRIM22

main71073-47351-C7iZVW30..G..CBU201303-201310

BLACK/BLACK/LT.GRAY,TRIM20

main71073-47351-E8iZVW30..G..CBU201303-201310

BROWN/BLACK/BROWN,TRIM22

main71073-47352-C8iZVW30..G..CBU201310-201511

BLACK/BLACK/LT.GRAY,TRIM20

main71073-47352-C9iZVW30..G..CBU201310-201511

BROWN/BLACK/BROWN,TRIM22

main71073-47470-C1iZVW30..S..CBU201112-201210

BLACK,TRIM20

main71073-47470-C4iZVW30..S..CBU201210-201310

BLACK,TRIM20

main71073-47470-G3iZVW30..S..CBU201210-201310

AQUA,TRIM6#

main71073-47470-J1iZVW30..S..CBU201112-201210

BLUE,TRIM21

main71073-47470-J2iZVW30..S..CBU201210-201310

BLUE/BLACK,TRIM21

main71073-47471-C5iZVW30..S..CBU201310-201511

BLACK,TRIM20

main71073-47471-C6iZVW30..S..CBU201310-201511

BLUE/BLACK,TRIM21

main71073-47471-G4iZVW30..S..CBU201310-201511

AQUA,TRIM6#

main71073-47480-C1iZVW30..L201112-201210

BLACK,TRIM2#

main71073-47480-C3iZVW30..L201210-201310

BLACK,TRIM2#

main71073-47481-C4iZVW30..L201310-201511

BLACK,TRIM2#

main71073-47200-B0supersedes 71073-47220-B1iZVW30..G..CBU; ZVW30..S..CBU200904-201101

main71073-47200-B1supersedes 71073-47220-B1iZVW30..G..CBU; ZVW30..S..CBU201102-201112

main71073-47200-G0supersedes 71073-47350-G9iZVW30..G..CBU; ZVW30..S..CBU200904-201101

main71073-47200-G2supersedes 71073-47350-G9iZVW30..G..CBU; ZVW30..S..CBU201102-201112

main71073-47230-B0iZVW30..G..CBU200904-201011

main71073-47230-B1iZVW30..G..CBU201102-201108

main71073-47230-B2iZVW30..G..CBU201108-201112

main71073-47230-E2iZVW30..G..CBU201102-201112

main71073-47230-E4iZVW30..G..CBU201108-201112

main71073-47230-G0supersedes 71073-47350-G9iZVW30..G..CBU200904-201101

main71073-47230-G1supersedes 71073-47350-G9iZVW30..G..CBU201102-201108

main71073-47230-G2supersedes 71073-47350-G9iZVW30..G..CBU201108-201112

main71073-47230-K1iZVW30..G..CBU201011-201108

main71073-47230-K2iZVW30..G..CBU201108-201112

main71073-47370-B0supersedes 71073-47200-B1iZVW30..S..CBU201102-201112

main71073-47370-G0supersedes 71073-47470-G1iZVW30..S..CBU201011-201105

main71073-47490-C3iZVW30..G..CBU201112-201210

main71073-47490-C5iZVW30..G..CBU201210-201302

main71073-47490-G3supersedes 71073-47350-G9iZVW30..G..CBU201112-201210

main71073-47490-G5supersedes 71073-47350-G9iZVW30..G..CBU201210-201302

main71073-47491-C5iZVW30..G..CBU201303-201310

main71073-47491-G5supersedes 71073-47351-G9iZVW30..G..CBU201303-201310

main71073-47492-C6iZVW30..G..CBU201310-201511

main71073-47492-G6supersedes 71073-47352-Q0iZVW30..G..CBU201310-201511

main71073-47530-C2iZVW30..S..CBU201210-201511

main71073-47550-E1iZVW30..S..CBU201210-201310

main71073-47551-E2iZVW30..S..CBU201310-201511

main71073-47560-K0iZVW30..S..CBU201210-201310

main71073-47561-K1iZVW30..S..CBU201310-201511

main71073-47580-B0iZVW30..S..CBU201210-201310

main71073-47581-J0iZVW30..S..CBU201310-201408

main71073-47582-C0iZVW30..S..CBU201408-201511

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-47080-B1iZVW30..L200904-201101

MD.GRAY,TRIM1#

main71430-47080-B2iZVW30..L201102-201112

MD.GRAY,TRIM1#

main71430-47330-22iZVW30..G..CBU201210-201303

BLACK/LT.GRAY,TRIM20

main71430-47330-23iZVW30..G..CBU201210-201303

BLACK/BROWN,TRIM22

main71430-47330-C8iZVW30..G..CBU201112-201210

BLACK,TRIM20

main71430-47330-C9iZVW30..G..CBU201112-201210

BLACK/BROWN,TRIM22

main71430-47331-C0iZVW30..G..CBU201303-201310

BLACK/LT.GRAY,TRIM20

main71430-47331-C1iZVW30..G..CBU201303-201310

BLACK/BROWN,TRIM22

main71430-47332-C0iZVW30..G..CBU201310-201511

BLACK/LT.GRAY,TRIM20

main71430-47332-C1iZVW30..G..CBU201310-201511

BLACK/BROWN,TRIM22

main71430-47590-C1iZVW30..L201112-201210

BLACK,TRIM2#

main71430-47590-C2iZVW30..L201210-201310

BLACK,TRIM2#

main71430-47591-C0iZVW30..L201310-201511

BLACK,TRIM2#

main71430-47600-C2iZVW30..S..CBU201112-201210

BLACK,TRIM20

main71430-47600-C3iZVW30..S..CBU201112-201210

BLACK/BLUE,TRIM21

main71430-47600-C7iZVW30..S..CBU201210-201310

BLACK,TRIM20

main71430-47600-C8iZVW30..S..CBU201210-201310

BLUE/BLACK,TRIM21

main71430-47600-G2iZVW30..S..CBU201210-201310

AQUA,TRIM6#

main71430-47601-C0iZVW30..S..CBU201310-201511

main71430-47601-C1iZVW30..S..CBU201310-201511

BLUE/BLACK,TRIM21

main71430-47601-G0iZVW30..S..CBU201310-201511

AQUA,TRIM6#

main71430-47090-B1supersedes 71430-47100-B3iZVW30..G..CBU; ZVW30..S..CBU200904-201101

main71430-47090-B2supersedes 71430-47100-B3iZVW30..G..CBU; ZVW30..S..CBU201102-201112

main71430-47090-G1supersedes 71430-47330-G7iZVW30..G..CBU; ZVW30..S..CBU200904-201101

main71430-47090-G3supersedes 71430-47330-G7iZVW30..G..CBU; ZVW30..S..CBU201102-201112

main71430-47110-B1iZVW30..G..CBU200904-201011

main71430-47110-B3iZVW30..G..CBU201102-201108

main71430-47110-B4iZVW30..G..CBU201011-201108

main71430-47110-B5iZVW30..G..CBU201105-201108

main71430-47110-B6iZVW30..G..CBU201108-201112

main71430-47110-B7iZVW30..G..CBU201108-201112

main71430-47110-B8iZVW30..G..CBU201108-201112

main71430-47110-G1supersedes 71430-47330-G7iZVW30..G..CBU201011-201101

main71430-47110-G2supersedes 71430-47330-G7iZVW30..G..CBU201102-201108

main71430-47110-G3supersedes 71430-47330-G7iZVW30..G..CBU201108-201112

main71430-47340-C3iZVW30..G..CBU201112-201210

main71430-47340-C5iZVW30..G..CBU201210-201302

main71430-47340-G3supersedes 71430-47330-G7iZVW30..G..CBU201112-201210

main71430-47340-G5supersedes 71430-47330-G7iZVW30..G..CBU201210-201302

main71430-47341-C0iZVW30..G..CBU201303-201310

main71430-47341-G0supersedes 71430-47331-G0iZVW30..G..CBU201303-201310

main71430-47342-C0iZVW30..G..CBU201310-201511

main71430-47342-G0supersedes 71430-47332-G0iZVW30..G..CBU201310-201511

main71430-47390-B0supersedes 71430-47090-B2iZVW30..S..CBU201105-201108

main71430-47390-G0supersedes 71430-47600-G1iZVW30..S..CBU201105-201112

main71430-47740-C2iZVW30..S..CBU201112-201210

main71430-47740-C3iZVW30..S..CBU201310-201511

main71430-47770-C0iZVW30..S..CBU201210-201310

main71430-47771-C0iZVW30..S..CBU201310-201408

main71430-47772-B0iZVW30..S..CBU201408-201511

main71430-47780-E1iZVW30..S..CBU201210-201310

main71430-47781-E0iZVW30..S..CBU201310-201511

main71430-47790-C3iZVW30..S..CBU201210-201310

main71430-47791-C0iZVW30..S..CBU201310-201511

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-47090iZVW30..CBU200904-201112

main71511-47130iZVW30..G..CBU201301-201511

main71511-47280iZVW30..G..CBU201112-201301

main71511-47150iZVW30..S..CBU201112-201210

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-47010-B0iZVW30..(G,S)..CBU200904-201112

MD.GRAY,TRIM1#

main71537-47010-G0iZVW30..(G,S)..CBU200904-201112

AQUA,TRIM6#

main71537-47020-B0iZVW30..L200904-201112

MD.GRAY,TRIM1#

main71537-47020-C0iZVW30..L201112-201511

BLACK,TRIM2#

main71537-52100-C0iZVW30..G..CBU201112-201511

BLACK,TRIM2#

main71537-52100-G0iZVW30..G..CBU201112-201511

AQUA,TRIM6#

main71537-47010-B3supersedes 71537-47010-G0iZVW30..S..CBU201105-201112

main71537-47010-C0iZVW30..G..CBU201011-201112

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71538-47010-B0iZVW30..(G,S)..CBU200904-201112

MD.GRAY,TRIM1#

main71538-47010-C0iZVW30..G..CBU; ZVW30..S..CBU201112-201511

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#

main71538-47010-G0iZVW30..(G,S)..CBU201112-201511

AQUA,TRIM6#

main71538-47020-B0iZVW30..L200904-201112

MD.GRAY,TRIM1#

main71538-47020-C0iZVW30..L201112-201511

BLACK,TRIM2#

main71538-47010-B3iZVW30..S..CBU201105-201112

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-47110iZVW30..(G,S)..CBU200904-201112

main71551-47120iZVW30..L200904-201112

main71551-47160iZVW30..G..CBU201112

main71551-47200iZVW30..L201112

main71551-47220supersedes 71551-47190iZVW30..S..CBU201210

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-47040iZVW30..(G,S)..CBU200904-201112

main71610-47050iZVW30..L200904-201102

main71610-47190iZVW30..L201112-201209

main71610-47191iZVW30..L201209

main71610-47020iZVW30..G..CBU201011-201112

main71610-47240supersedes 71610-47181iZVW30..S..CBU201112-201204

main71610-47241supersedes 71610-47181iZVW30..S..CBU201210

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-47040iZVW30..(G,S)..CBU200904-201112

main71630-47060iZVW30..L201112-201511

main71630-47100iZVW30..G..CBU201112-201511

main71630-47030supersedes 71630-47040iZVW30..S..CBU201112-201210

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-47070-B0iZVW30..L200904-201112

MD.GRAY,TRIM1#

main71811-47070-C0iZVW30..L201112-201511

BLACK,TRIM2#

main71811-47090-B0iZVW30..(G,S)..CBU200904-201112

MD.GRAY,TRIM1#

main71811-47090-G0iZVW30..(G,S)..CBU200904-201112

AQUA,TRIM6#

main71811-47130-C0iZVW30..G..CBU201112-201511

BLACK,TRIM2#

main71811-47130-G0iZVW30..G..CBU201112-201511

AQUA,TRIM6#

main71811-47090-B2supersedes 71811-47090-G0iZVW30..S..CBU201105-201112

main71811-47090-C0iZVW30..G..CBU; ZVW30..S..CBU201011-201112

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-47010×2iZVW30..CBU200904-201112

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-22150-C0iZVW30..G..CBU201112-201511

BLACK,TRIM2#

main71861-22150-G0iZVW30..G..CBU201112-201511

AQUA,TRIM6#

main71861-47040-B0iZVW30..(G,S)..CBU200904-201112

MD.GRAY,TRIM1#

main71861-47040-G0iZVW30..(G,S)..CBU200904-201112

AQUA,TRIM6#

main71861-47050-B0iZVW30..L200904-201112

MD.GRAY,TRIM1#

main71861-47050-C0iZVW30..L201112-201511

BLACK,TRIM2#

main71861-47040-B2supersedes 71861-47040-G0iZVW30..S..CBU201105-201112

main71861-47040-C0iZVW30..G..CBU201011-201112

71861BCLIP(FOR FRONT SEAT SHIELD, RH)

main62217-12050iZVW30..CBU200904-201010

main71769-47020iZVW30..CBU201112

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-47030-B0iZVW30..CBU200904-201112

MD.GRAY,TRIM1#

main71875-47030-C0iZVW30..L; ZVW30..S..CBU201112-201511

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#

main71875-47030-G0iZVW30..(G,S)..CBU200904-201112

AQUA,TRIM6#

main71875-47030-B3iZVW30..S..CBU201011-201105

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-47030-B0iZVW30..CBU200904-201112

MD.GRAY,TRIM1#

main71876-47030-C0iZVW30..L; ZVW30..S..CBU201112-201511

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#

main71876-47030-G0iZVW30..(G,S)..CBU200904-201112

AQUA,TRIM6#

main71876-60210-C0iZVW30..G..CBU201112-201511

BLACK,TRIM2#

main71876-60210-G0iZVW30..G..CBU201112-201511

AQUA,TRIM6#

main71876-47030-B3iZVW30..S..CBU201011-201105

71910AHEADREST ASSY, FRONT SEAT

main71910-47110-B0×2supersedes 71910-47121-B0iZVW30..(L,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU200904-201112

main71910-47110-C1×2iZVW30..(L,S)..CBU; ZVW30..S..CBU201112-201511

main71910-47200-C6×2iZVW30..G..CBU201112-201511

main71910-47200-C7×2iZVW30..G..CBU201112-201511

BLACK/BROWN,TRIM22

main71910-47110-G0supersedes 71910-47110-G2iZVW30..G..CBU; ZVW30..S..CBU200904-201112

main71910-47110-G2iZVW30..S..CBU201112-201511

main71910-47130-B0×2supersedes 71910-47121-B0iZVW30..G..CBU200904-201011

main71910-47130-C1×2iZVW30..G..CBU201011-201112

main71910-47130-C4×2iZVW30..G..CBU201112-201511

main71910-47130-G0×2supersedes 71910-47200-G8iZVW30..G..CBU200904-201112

main71910-47130-G5×2supersedes 71910-47200-G8iZVW30..G..CBU201112-201511

main71910-47190-B0×2iZVW30..S..CBU201108-201112

main71910-47190-G0×2iZVW30..S..CBU201011-201105

main71910-47230-B2×2iZVW30..S..CBU201112-201210

main71910-47250-E0×2iZVW30..S..CBU201210-201511

main71910-47260-K0×2iZVW30..S..CBU201210-201511

main71910-47270-B0×2iZVW30..S..CBU201210-201408

main71910-47280-C2×2iZVW30..S..CBU201408-201511

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-B0×2iZVW30..CBU; ZVW30..G..CBU; ZVW30..S..CBU200904-201112

main71930-47020-C0×2supersedes 71931-47020-C0iZVW30..(G,L)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201511

main71931-47020-B0×2iZVW30..CBU; ZVW30..G..CBU; ZVW30..S..CBU200904-201112

main71931-47020-C0×2iZVW30..(G,L)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201511

main71930-47020-G0iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU200904-201112

main71931-47020-G0iZVW30..(G,S)..CBU201112-201511

72137COVER, SEAT TRACK, OUTER RH

main72137-47040-B0iZVW30..CBU200904-201112

MD.GRAY,TRIM1#

main72137-47040-C0iZVW30..G..CBU; ZVW30..L; ZVW30..S..CBU201112-201511

BLACK,TRIM1#,2#,4#,6#; BLACK,TRIM2#; BLACK,TRIM2#,6#

main72137-47040-G0iZVW30..CBU200904-201112

AQUA,TRIM6#

72157COVER, SEAT TRACK BRACKET, INNER

main72157-47040-B0iZVW30..CBU200904-201112

MD.GRAY,TRIM1#

main72157-47040-C0iZVW30..G..CBU; ZVW30..L; ZVW30..S..CBU201112-201511

BLACK,TRIM1#,2#,4#,6#; BLACK,TRIM2#; BLACK,TRIM2#,6#

main72157-47040-G0iZVW30..CBU200904-201112

AQUA,TRIM6#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-47020iZVW30..CBU200904-201112

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47010-B0iZVW30..CBU200904-201112

MD.GRAY,TRIM1#

main72525-47010-C0iZVW30..L; ZVW30..S..CBU201112-201511

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#

main72525-47010-G0iZVW30..(G,S)..CBU200904-201112

AQUA,TRIM6#

main72525-47010-B3iZVW30..S..CBU201011-201105

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-47050iZVW30..CBU200904-201112

82711FCLAMP, WIRING HARNESS

main82711-12120iZVW30..(L,S)..CBU201112-201511

7226547030COVER, SEAT TRACK UPPER RAIL, RH

main72265-47030

9011910601

main90119-10601

9011910966

main90119-10966

9016740044

main90167-40044

9417060600

main94170-60600

9418560600

main94185-60600

30 parts on this diagram · 5 diagrams in section
