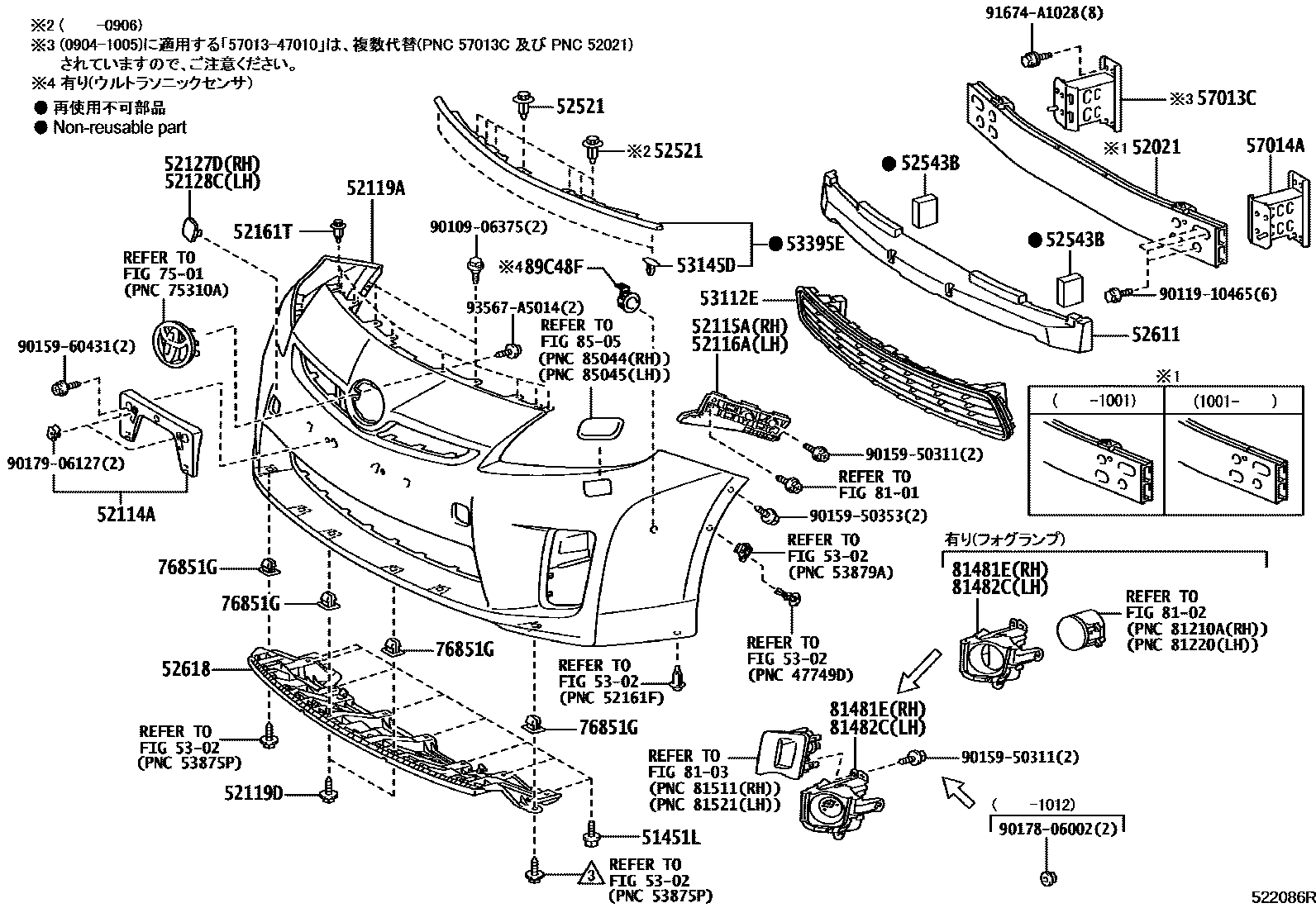

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1G'S

51451LBOLT, NO.1

main90119-06767×8iZVW30..CBU201112-201511

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-47021iZVW30..CBU200904-200912

main52021-47080iZVW30..CBU201001-201004

main52021-47081iZVW30..CBU201004-201112

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-47060iZVW30..CBU200904-201112

main52114-47120iZVW30..CBU201112

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-47020iZVW30..CBU200904-201112

main52115-47040iZVW30..CBU201112-201402

main52115-47041iZVW30..CBU201403

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-47020iZVW30..CBU200904-201112

main52116-47040iZVW30..CBU201112-201402

main52116-47041iZVW30..CBU201403

52119ACOVER, FRONT BUMPER

main52119-47080-A0iZVW30..(G,S)..CBU; ZVW30..L200904-201112

main52119-47080-A1iZVW30..(G,S)..CBU; ZVW30..L200904-201112

main52119-47080-B0iZVW30..(G,S)..CBU; ZVW30..L200904-201112

main52119-47080-C0iZVW30..(G,S)..CBU; ZVW30..L200904-201112

main52119-47080-D0iZVW30..(G,S)..CBU; ZVW30..L200904-201112

main52119-47080-H0iZVW30..(G,S)..CBU; ZVW30..L200904-201112

main52119-47080-J0iZVW30..(G,S)..CBU; ZVW30..L200904-201112

main52119-47080-J1iZVW30..(G,S)..CBU; ZVW30..L200904-201112

main52119-47340-A0iZVW30..(L,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201511

main52119-47340-A1iZVW30..(L,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201408

main52119-47340-B0iZVW30..(L,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201511

main52119-47340-C0iZVW30..(L,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201511

main52119-47340-D0iZVW30..(L,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201511

main52119-47340-D1iZVW30..(L,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201511

main52119-47340-H1iZVW30..(L,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201511

main52119-47340-K0iZVW30..(L,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201511

main52119-47870-A1iZVW30..(L,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201408

main52119-47090-A0supersedes 52119-47340-A0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47090-A1supersedes 52119-47340-A1iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47090-B0supersedes 52119-47080-B0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47090-C0supersedes 52119-47340-C0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47090-D0supersedes 52119-47080-D0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47090-H0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47090-J0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47090-J1iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47160-A0supersedes 52119-47340-A0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47160-A1supersedes 52119-47340-A1iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47160-B0supersedes 52119-47340-B0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47160-B1iZVW30..(G,S)..CBU; ZVW30..G..CBU201011-201112

main52119-47160-B2iZVW30..(G,S)..CBU; ZVW30..G..CBU201108-201112

main52119-47160-C0supersedes 52119-47340-C0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47160-D0supersedes 52119-47080-D0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47160-H0supersedes 52119-47080-H0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47160-J0supersedes 52119-47080-J0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47160-J1iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47160-J2iZVW30..(G,S)..CBU; ZVW30..G..CBU201108-201112

main52119-47160-K0iZVW30..(G,S)..CBU; ZVW30..G..CBU201011-201112

main52119-47170-A0supersedes 52119-47340-A0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47170-A1supersedes 52119-47340-A1iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47170-B0supersedes 52119-47340-B0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47170-B1iZVW30..(G,S)..CBU; ZVW30..G..CBU201011-201112

main52119-47170-B2iZVW30..(G,S)..CBU; ZVW30..G..CBU201108-201112

main52119-47170-C0supersedes 52119-47080-C0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47170-D0supersedes 52119-47340-D0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47170-H0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47170-J0supersedes 52119-47080-J0iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47170-J1iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main52119-47170-J2iZVW30..(G,S)..CBU; ZVW30..G..CBU201108-201112

main52119-47170-K0iZVW30..(G,S)..CBU; ZVW30..G..CBU201011-201112

main52119-47340-E1iZVW30..S..CBU201210-201511

main52119-47340-J5iZVW30..S..CBU201210-201511

main52119-47340-K1iZVW30..S..CBU201210-201511

main52119-47350-A0supersedes 52119-47340-A0iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201407-201511

main52119-47350-A1supersedes 52119-47870-A1iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201408

main52119-47350-B0supersedes 52119-47340-B0iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201407

main52119-47350-C0supersedes 52119-47340-C0iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201407

main52119-47350-D0supersedes 52119-47080-D0iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201407-201511

main52119-47350-D1supersedes 52119-47340-D1iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201407

main52119-47350-E1supersedes 52119-47340-E1iZVW30..S..CBU201210-201407

main52119-47350-H1supersedes 52119-47340-H1iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201407

main52119-47350-J5supersedes 52119-47340-J5iZVW30..S..CBU201407-201511

main52119-47350-K0supersedes 52119-47340-K0iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201407-201511

main52119-47350-K1supersedes 52119-47340-K1iZVW30..S..CBU201407-201511

main52119-47360-A0supersedes 52119-47340-A0iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201407

main52119-47360-A1supersedes 52119-47870-A1iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201408

main52119-47360-B0iZVW30..S..CBU201408-201511

main52119-47360-C0supersedes 52119-47340-C0iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201407

main52119-47360-D0supersedes 52119-47340-D0iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201407-201511

main52119-47360-D1iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201407

main52119-47360-E1iZVW30..S..CBU201408-201511

main52119-47360-H1supersedes 52119-47340-H1iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201407-201511

main52119-47360-J5supersedes 52119-47340-J5iZVW30..S..CBU201210-201407

main52119-47360-K0iZVW30..S..CBU201408-201511

main52119-47360-K1iZVW30..S..CBU201408-201511

main52119-47370-A0iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201407-201511

main52119-47370-A1supersedes 52119-47080-A1iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201407

main52119-47370-B0supersedes 52119-47340-B0iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201407

main52119-47370-C0iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201407-201511

main52119-47370-D0supersedes 52119-47340-D0iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201407

main52119-47370-D1iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201407

main52119-47370-E1supersedes 52119-47340-E1iZVW30..S..CBU201407-201511

main52119-47370-H1iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201407

main52119-47370-J5supersedes 52119-47340-J5iZVW30..S..CBU201210-201407

main52119-47370-K0iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201112-201407

main52119-47370-K1supersedes 52119-47340-K1iZVW30..S..CBU201407-201511

main52119-47620-A0iZVW30..S..CBU201112-201511

main52119-47620-A1iZVW30..S..CBU201112-201511

main52119-47620-B0iZVW30..S..CBU201112-201511

main52119-47620-C0iZVW30..S..CBU201112-201511

main52119-47620-D0iZVW30..S..CBU201112-201511

main52119-47620-D1iZVW30..S..CBU201112-201511

main52119-47880-A1supersedes 52119-47870-A1iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201408

main52119-47890-A1supersedes 52119-47870-A1iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201408

main52119-47A00-A1supersedes 52119-47870-A1iZVW30..(G,S)..CBU; ZVW30..G..CBU; ZVW30..S..CBU201408

52119DSCREW, NO.1

main90159-60488×2iZVW30..CBU200904-201112

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-47020-A0iZVW30..CBU200904-201112

SUPER WHITE 2,040

main52127-47020-A1iZVW30..CBU200904-201112

WHITE PEARL CS.,070

main52127-47020-B0iZVW30..CBU200904-201112

SILVER ME.,1F7

main52127-47020-C0iZVW30..CBU200904-201112

BLACK,202

main52127-47020-D0iZVW30..CBU200904-201112

RED M.M.,3R3

main52127-47020-H0iZVW30..CBU200904-201112

AQUA BLUE ME.,783

main52127-47020-J0iZVW30..CBU200904-201112

DK.BLUE MC.,8T5

main52127-47020-J1iZVW30..CBU200904-201112

ICEBERG SILVER M.M.,8V0

main52127-47040-A0iZVW30..CBU201407-201511

SUPER WHITE 2,040

main52127-47040-A1iZVW30..CBU201408

main52127-47040-B0iZVW30..CBU201407-201511

SILVER ME.,1F7

main52127-47040-C0iZVW30..CBU201112-201407

BLACK,202

main52127-47040-D0iZVW30..CBU201112-201407

RED M.M.,3R3

main52127-47040-D1iZVW30..CBU201407-201511

DEEP RED M.M.,3R9

main52127-47040-E0iZVW30..S..CBU201210-201407

BRONZE M.M.,4T3

main52127-47040-H0iZVW30..CBU201112-201407

FROSTY GREEN MC.,781

main52127-47040-J4iZVW30..S..CBU201210-201407

BLUE ME.,8T7

main52127-47040-K0iZVW30..CBU201407-201511

LT.PURPLE M.M.,9AE

main52127-47040-K1iZVW30..S..CBU201407-201511

DEEP AMETHYST M.M.,9AH

main52127-47080-A1iZVW30..CBU201408

main52127-47020-B3iZVW30..(G,S)..CBU; ZVW30..G..CBU201011-201112

main52127-47020-B4iZVW30..(G,S)..CBU; ZVW30..G..CBU201108-201112

main52127-47020-J4iZVW30..(G,S)..CBU; ZVW30..G..CBU201108-201112

main52127-47020-K0iZVW30..(G,S)..CBU; ZVW30..G..CBU201011-201112

main52127-47050-A0iZVW30..S..CBU201112-201511

main52127-47050-A1iZVW30..S..CBU201112-201511

main52127-47050-B0iZVW30..S..CBU201112-201511

main52127-47050-C0iZVW30..S..CBU201112-201511

main52127-47050-D0iZVW30..S..CBU201112-201511

main52127-47050-D1iZVW30..S..CBU201112-201511

52128CCOVER, FRONT BUMPER HOLE, LH

main52128-47010-A0iZVW30..CBU200904-201112

SUPER WHITE 2,040

main52128-47010-A1iZVW30..CBU200904-201112

WHITE PEARL CS.,070

main52128-47010-B0iZVW30..CBU200904-201112

SILVER ME.,1F7

main52128-47010-C0iZVW30..CBU200904-201112

BLACK,202

main52128-47010-D0iZVW30..CBU200904-201112

RED M.M.,3R3

main52128-47010-H0iZVW30..CBU200904-201112

AQUA BLUE ME.,783

main52128-47010-J0iZVW30..CBU200904-201112

DK.BLUE MC.,8T5

main52128-47010-J1iZVW30..CBU200904-201112

ICEBERG SILVER M.M.,8V0

main52128-47030-A0iZVW30..CBU201112-201407

SUPER WHITE 2,040

main52128-47030-A1iZVW30..CBU201408

main52128-47030-B0iZVW30..CBU201407-201511

SILVER ME.,1F7

main52128-47030-C0iZVW30..CBU201112-201407

BLACK,202

main52128-47030-D0iZVW30..CBU201407-201511

RED M.M.,3R3

main52128-47030-D1iZVW30..CBU201407-201511

DEEP RED M.M.,3R9

main52128-47030-E0iZVW30..S..CBU201407-201511

BRONZE M.M.,4T3

main52128-47030-H0iZVW30..CBU201407-201511

FROSTY GREEN MC.,781

main52128-47030-J4iZVW30..S..CBU201210-201407

BLUE ME.,8T7

main52128-47030-K0iZVW30..CBU201407-201511

LT.PURPLE M.M.,9AE

main52128-47030-K1iZVW30..S..CBU201407-201511

DEEP AMETHYST M.M.,9AH

main52128-47060-A1iZVW30..CBU201408

main52128-47010-B3iZVW30..(G,S)..CBU; ZVW30..G..CBU201011-201112

main52128-47010-B4iZVW30..(G,S)..CBU; ZVW30..G..CBU201108-201112

main52128-47010-J4iZVW30..(G,S)..CBU; ZVW30..G..CBU201108-201112

main52128-47010-K0iZVW30..(G,S)..CBU; ZVW30..G..CBU201011-201112

52161TPIECE, FRONT BUMPER

main52161-16010×8iZVW30..CBU200904-201112

52521RETAINER, FRONT BUMPER, UPPER CENTER

main90467-05063-C0×7iZVW30..CBU200904-200906

BLACK

52543BSEAL, FRONT BUMPER

main52543-47020×2iZVW30..CBU200904-201112

main52543-47050×2iZVW30..CBU201112

52611ABSORBER, FRONT BUMPER ENERGY

main52611-47040iZVW30..CBU200904-201112

main52611-47080iZVW30..CBU201112

52618ABSORBER, FRONT BUMPER, LOWER

main52618-47010iZVW30..CBU200904-201112

main52618-47050iZVW30..CBU201112-201511

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53112EGRILLE, RADIATOR, LOWER NO.1

main53102-47010iZVW30..(L,S)..CBU201112

main53102-47020iZVW30..G..CBU; ZVW30..S..CBU201112

main53112-47040iZVW30..CBU200904-201112

main53102-47130iZVW30..S..CBU201112

53145DCLIP, RADIATOR GRILLE

main53145-60030×2iZVW30..CBU201112

53395ESEAL, HOOD TO FRONT END PANEL

main53395-47020iZVW30..CBU200904-201112

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-47010iZVW30..CBU200904-201005

main57013-47030iZVW30..CBU201005-201112

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-47030iZVW30..CBU201112

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

76851GGROMMET, SCREW, NO.1

main90189-06193×4iZVW30..CBU200904-201112

8101HEADLAMP

→ Go to FIG 81-01

8102FOG LAMP

→ Go to FIG 81-02

8103FRONT TURN SIGNAL LAMP

→ Go to FIG 81-03

81481ECOVER, FOG LAMP, RH

main81481-47010iZVW30..L200904-201112

main81481-47020iZVW30..(G,S)..CBU200904-201112

81482CCOVER, FOG LAMP, LH

main81482-47010iZVW30..L200904-201112

main81482-47020iZVW30..(G,S)..CBU200904-201112

89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE

main89348-12010-A0×2iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main89348-12010-A1×2iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main89348-12010-B0×2iZVW30..(G,S)..CBU; ZVW30..G..CBU201112-201511

main89348-12010-B1×2iZVW30..(G,S)..CBU201011-201112

main89348-12010-B2×2iZVW30..(G,S)..CBU201108-201112

main89348-12010-C1×2iZVW30..(G,S)..CBU; ZVW30..G..CBU201112-201511

main89348-12010-D0×2iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main89348-12010-D5×2iZVW30..(G,S)..CBU; ZVW30..G..CBU201112-201511

main89348-12010-E5×2iZVW30..S..CBU201210-201511

main89348-12010-H1×2iZVW30..(G,S)..CBU; ZVW30..G..CBU201112-201511

main89348-12010-H2×2iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main89348-12010-J1×2iZVW30..(G,S)..CBU201108-201112

main89348-12010-J3×2iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main89348-12010-J4×2iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main89348-12010-J7×2iZVW30..S..CBU201210-201511

main89348-12010-K0×2iZVW30..(G,S)..CBU201011-201112

main89348-12010-K2×2iZVW30..(G,S)..CBU; ZVW30..G..CBU201112-201511

main89348-12010-K3×2iZVW30..S..CBU201210-201511

9010906375

main90109-06375

9011910465

main90119-10465

9015950311

main90159-50311

9015950353

main90159-50353

9015960431

main90159-60431

9017806002

main90178-06002

9017906127

main90179-06127

91674A1028

main91674-A1028

93567A5014

main93567-A5014

37 parts on this diagram · 3 diagrams in section
