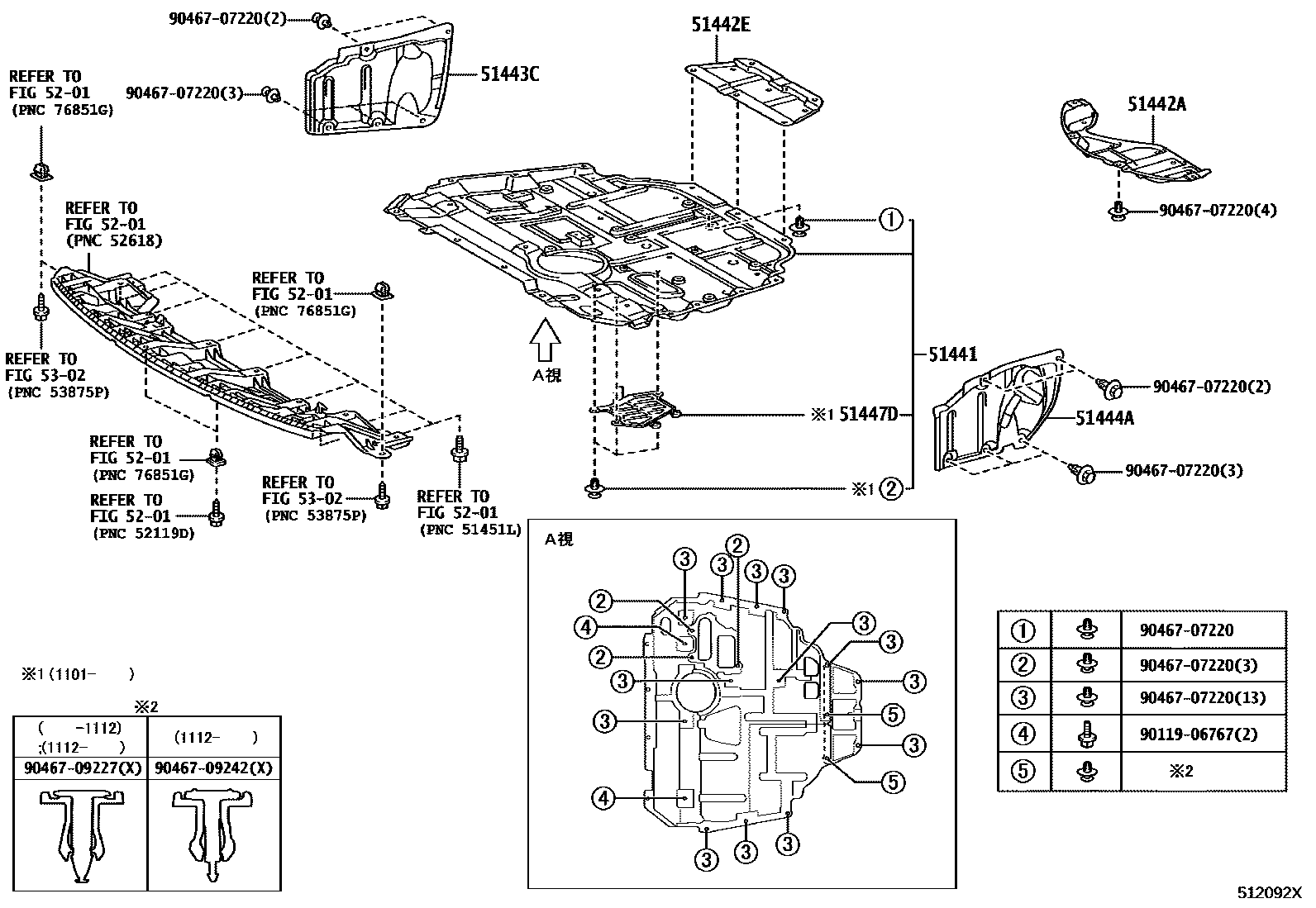

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1��������� ���� 0002 1������������ 0003 1��� �������� 0004 1G'S,������� & ��������� ���� 0005 1G'S,��� ��������

51441COVER, ENGINE UNDER, NO.1

main51410-12100iZVW30..CBU200904-200909

main51410-12101iZVW30..CBU200909-201004

main51410-12102iZVW30..CBU201005-201012

sub51410-12103

main51410-47040iZVW30..CBU201112-201511

main51410-12105iZVW30..S..CBU201112-201511

51442ACOVER, ENGINE UNDER, FRONT NO.3

main51442-12210iZVW30..CBU200904-201112

51442ECOVER, ENGINE UNDER, NO.2

main51442-12270iZVW30..CBU200904-201112

51443CCOVER, ENGINE UNDER, REAR RH

main51443-12080iZVW30..CBU200904-201112

51444ACOVER, ENGINE UNDER, REAR LH

main51444-12050iZVW30..CBU201112

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-47020iZVW30..CBU201112-201511

5201

5302

9011906767

main90119-06767

9046707220

main90467-07220

9046709227

main90467-09227

9046709242

main90467-09242

12 parts on this diagram · 5 diagrams in section
