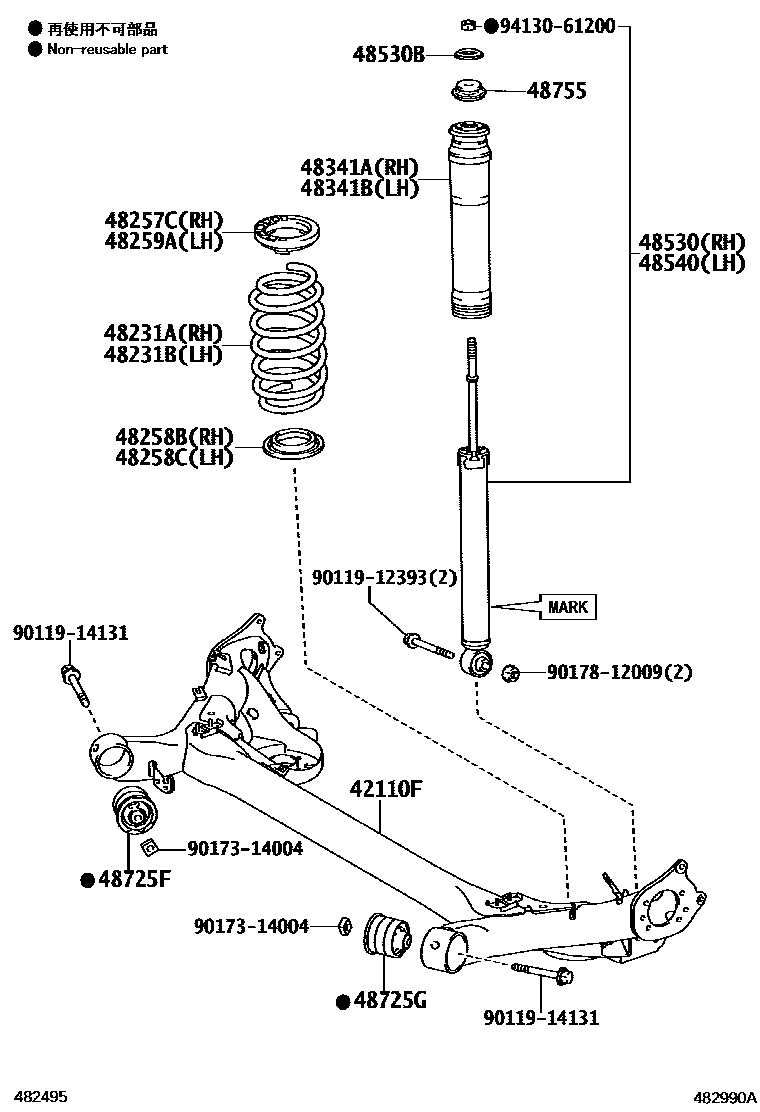

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42101-12171iZVW30..CBU200904-201112

48231ASPRING, COIL, REAR RH

main48231-47120iZVW30..CBU200904-201112

main48231-47300iZVW30..CBU201310-201511

main48231-WY040iZVW30..S..CBU201112-201511

48231BSPRING, COIL, REAR LH

main48231-47120iZVW30..CBU201112-201310

main48231-47300iZVW30..CBU201310-201511

main48231-WY040iZVW30..S..CBU201112-201511

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iZVW30..CBU200904-201112

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-52030iZVW30..CBU201112

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-52030iZVW30..CBU200904-201112

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iZVW30..CBU200904-201112

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-75010iZVW30..CBU201112

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-75010iZVW30..CBU201112

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-49895iZVW30..L201112-201310

main48530-80531iZVW30..L200904-201011

main48530-80532iZVW30..(G,S)..CBU200904-201011

main48530-80578iZVW30..L201011-201112

main48530-80579iZVW30..(G,S)..CBU201011-201112

main48530-80636iZVW30..(G,S)..CBU201112-201310

main48530-80694iZVW30..L201310-201511

main48530-80695iZVW30..(G,S)..CBU201310-201511

main48530-80533iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main48530-80696iZVW30..G..CBU; ZVW30..S..CBU201310-201511

main48530-W9005iZVW30..S..CBU201112-201310

main48530-W9065iZVW30..S..CBU201310-201511

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02159×2iZVW30..CBU201112

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-49895iZVW30..L201112-201310

main48530-80531iZVW30..L200904-201011

main48530-80532iZVW30..(G,S)..CBU200904-201011

main48530-80578iZVW30..L201011-201112

main48530-80579iZVW30..(G,S)..CBU201011-201112

main48530-80636iZVW30..(G,S)..CBU201112-201310

main48530-80694iZVW30..L201310-201511

main48530-80695iZVW30..(G,S)..CBU201310-201511

main48530-80533iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

main48530-80696iZVW30..G..CBU; ZVW30..S..CBU201310-201511

main48530-W9005iZVW30..S..CBU201112-201310

main48530-W9065iZVW30..S..CBU201310-201511

48725FBUSH, REAR AXLE CARRIER, RH

main48725-47030iZVW30..CBU200904-201112

main48725-47050iZVW30..CBU201310

48725GBUSH, REAR AXLE CARRIER, LH

main48725-47030iZVW30..CBU201112-201310

main48725-47050iZVW30..CBU201310

48755SUPPORT, REAR SUSPENSION

main48755-12100×2iZVW30..CBU201112

9011912393

main90119-12393

9011914131

main90119-14131

9017314004

main90173-14004

9017812009

main90178-12009

9413061200

main94130-61200

20 parts on this diagram · 1 diagram in section
