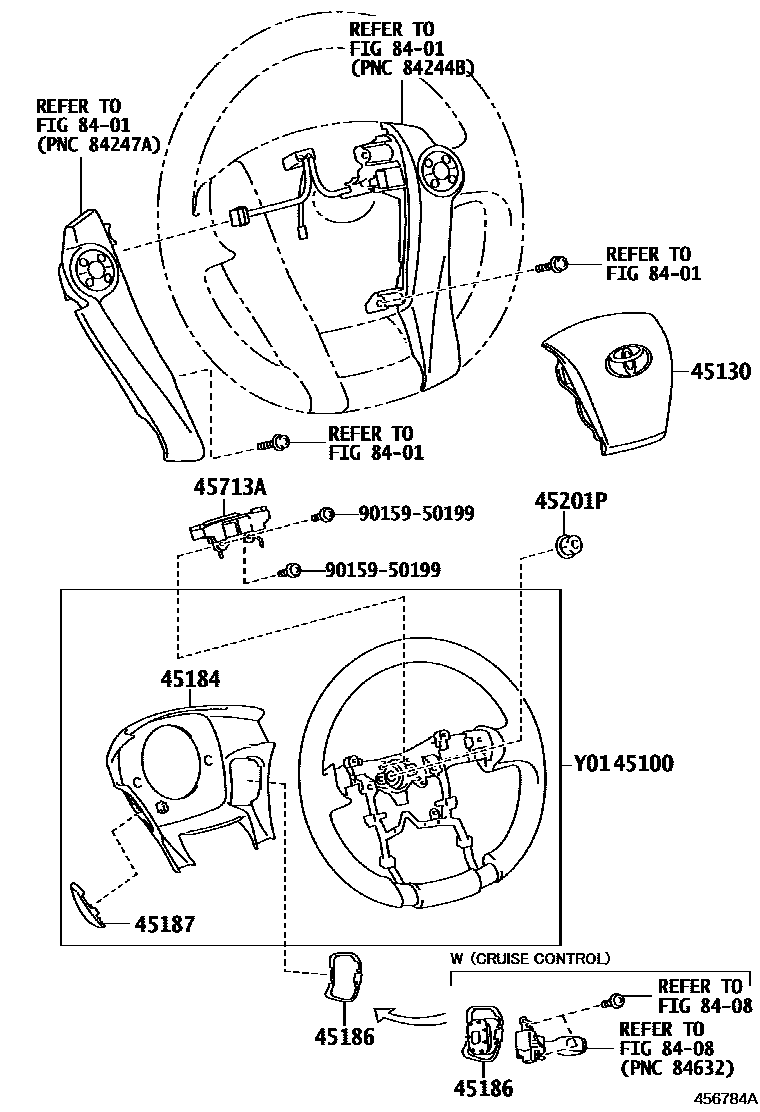

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-47120-B0iZVW30..(L,S)..CBU200904-201112

main45100-47120-C0iZVW30..(L,S)..CBU200904-201112

main45100-47130-B0iZVW30..G..CBU200904-201112

main45100-47130-C0iZVW30..G..CBU200904-201112

main45100-47210-C0iZVW30..G..CBU201310-201511

main45100-47140-C0iZVW30..G..CBU201011-201105

main45100-47160-C0iZVW30..G..CBU201105-201112

main45100-47160-C1iZVW30..G..CBU201105-201112

main45100-WY050-C0iZVW30..S..CBU201112-201511

45130BUTTON ASSY, HORN

main45130-47100-B0iZVW30..CBU200904-201112

MIST GRAY,TRIM6#

main45130-47100-C0iZVW30..G..CBU; ZVW30..L; ZVW30..S..CBU201112-201511

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#,6#; BLACK,TRIM1#,2#,6#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-47010-B0iZVW30..CBU200904-201112

MIST GRAY,TRIM6#

main45184-47010-C0iZVW30..L; ZVW30..S..CBU201112-201511

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#,6#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-47020-B0iZVW30..(L,S)..CBU200904-201112

MIST GRAY,TRIM6#

main45186-47020-C0iZVW30..L; ZVW30..S..CBU201112-201511

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#,6#

main45186-47030-B0iZVW30..G..CBU; ZVW30..S..CBU200904-201112

main45186-47030-C0iZVW30..G..CBU201112-201511

BLACK,TRIM1#,2#,6#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-47010-B0iZVW30..CBU200904-201112

MIST GRAY,TRIM6#

main45187-47010-C0iZVW30..CBU200904-201112

BLACK,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iZVW30..CBU200904-201112

45713ADAMPER, STEERING SHAKE

main45713-47030iZVW30..CBU200904-201112

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

10 parts on this diagram · 1 diagram in section
