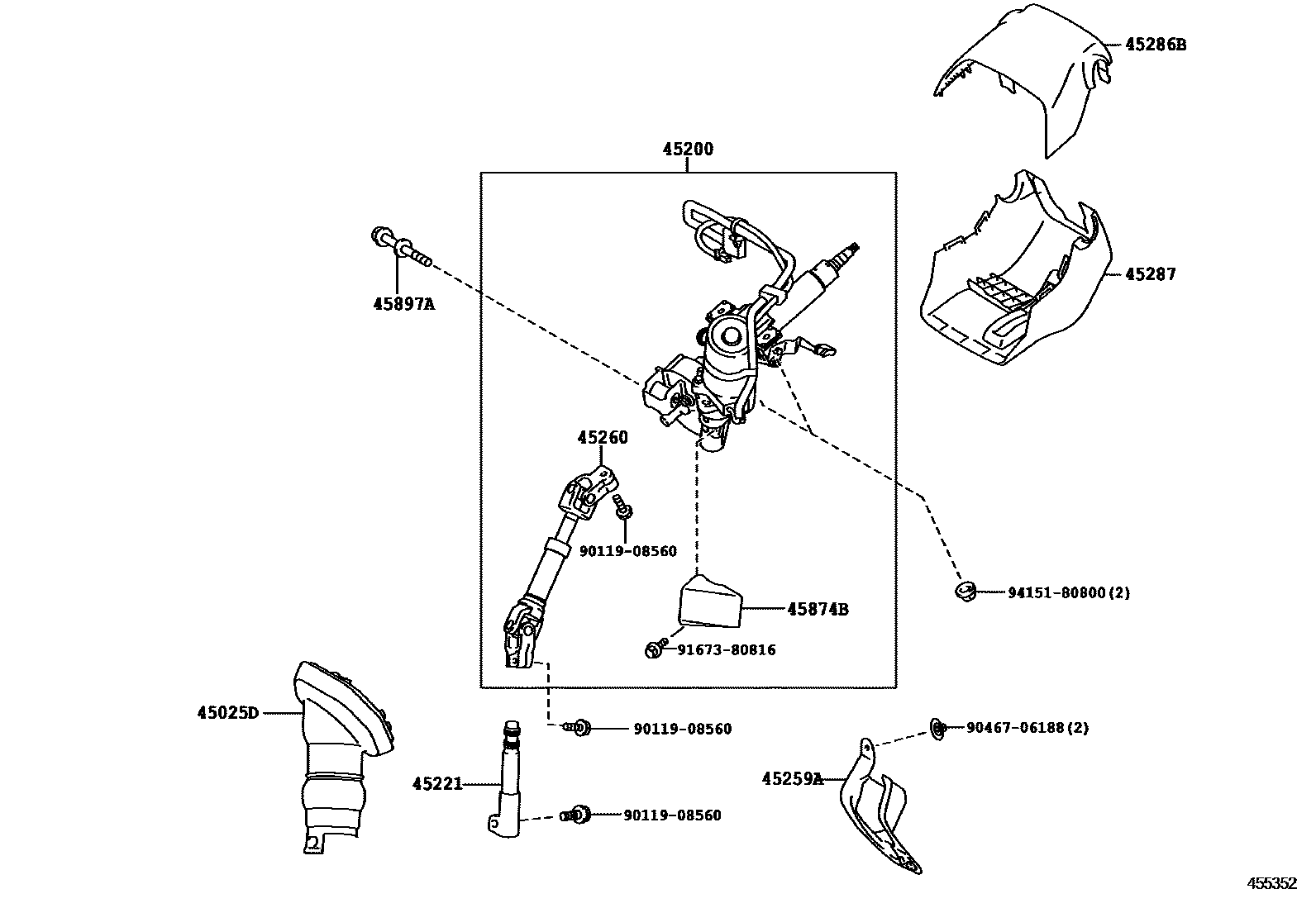

STEERING COLUMN & SHAFT

0001 115������������ 0002 117 OR 18������������

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12280iZVW30..CBU201112

45200POST ASSY, STEERING

main45200-47150iZVW30..CBU201112

main45250-47250iZVW30..(G,S)..CBU; ZVW30..G..CBU200904-201112

45221SHAFT, STEERING INTERMEDIATE

main45221-12330iZVW30..CBU200904-201112

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12050iZVW30..CBU200904-201112

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12710iZVW30..CBU201211

main45260-47060iZVW30..CBU201112-201210

45286BCOVER, STEERING COLUMN, UPR

main45286-47040-B0iZVW30..CBU200904-201112

MIST GRAY,TRIM6#

main45286-47040-C0iZVW30..CBU200904-201112

BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-12560-B1iZVW30..CBU200904-201112

MIST GRAY,TRIM6#

main45287-12560-C0iZVW30..CBU200904-201112

BLACK,TRIM1#

main45287-47080-C0iZVW30..G..CBU; ZVW30..L; ZVW30..S..CBU201208-201511

BLACK,TRIM1#,2#,4#,6#; BLACK,TRIM2#; BLACK,TRIM2#,6#

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-12100iZVW30..CBU200904-200912

main45874-47040iZVW30..CBU200912-201112

main45874-12090iZVW30..G..CBU; ZVW30..S..CBU201112

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iZVW30..CBU201112-201211

main90119-10980iZVW30..CBU201212

9011908560

main90119-08560

9046706188

main90467-06188

9167380816

main91673-80816

9415180800

main94151-80800

13 parts on this diagram · 2 diagrams in section
