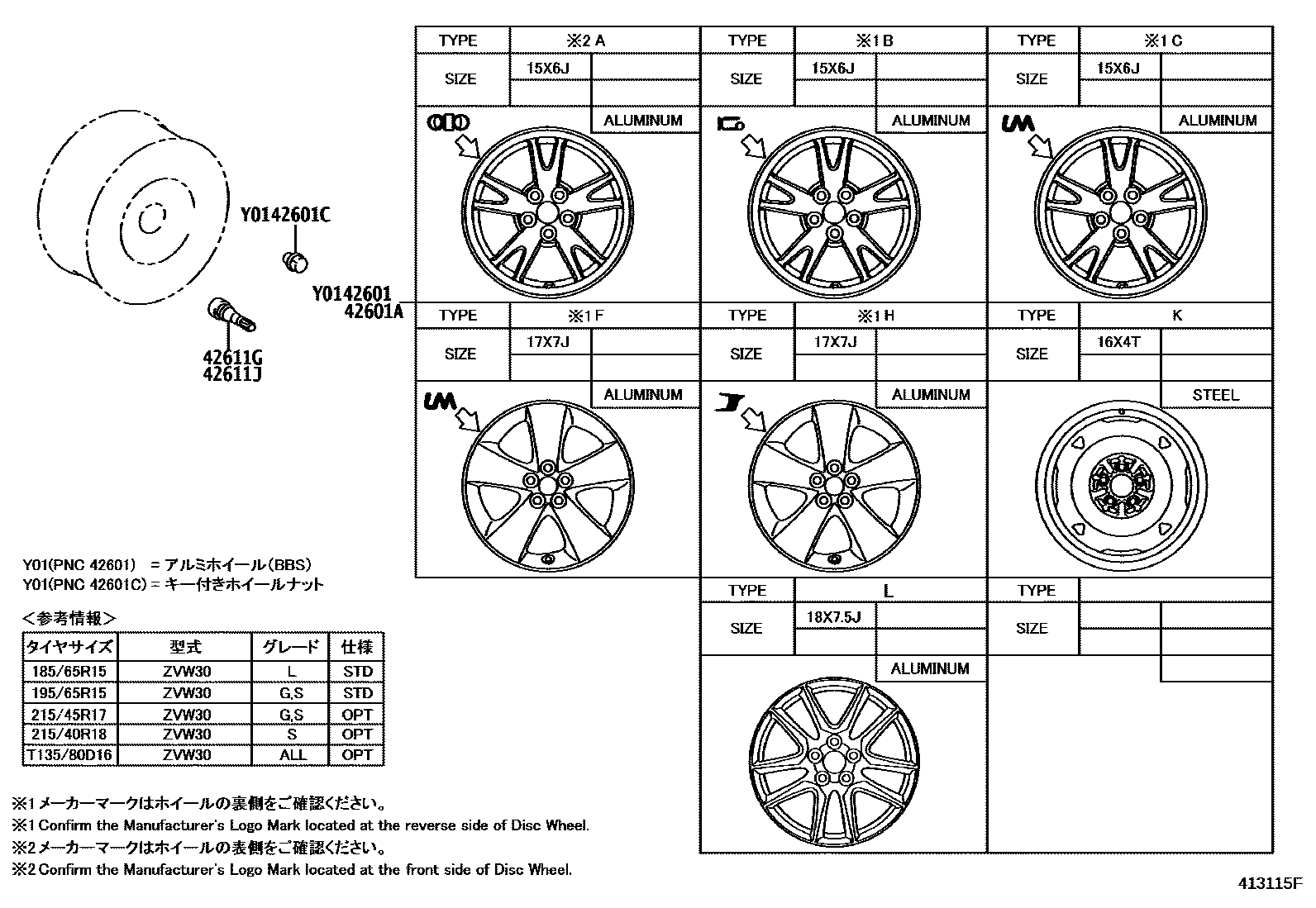

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-47100iZVW30..CBU201112-201404

main42611-47101iZVW30..CBU201405

main42611-47110iZVW30..CBU200904-201112

main42611-47120iZVW30..CBU200904-201112

main42611-47130iZVW30..CBU200904-201107

main42611-47270iZVW30..CBU201112

42601AWHEEL, DISC (FOR SPARE)

main42611-20840iZVW30..CBU200904-201212

main42611-20841iZVW30..CBU201301

42601CNUT, HUB (FOR AXLE)

main90942-01033iZVW30..CBU200904-201112

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iZVW30..CBU200904-201112

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZVW30..CBU200904-201112

5 parts on this diagram · 3 diagrams in section
