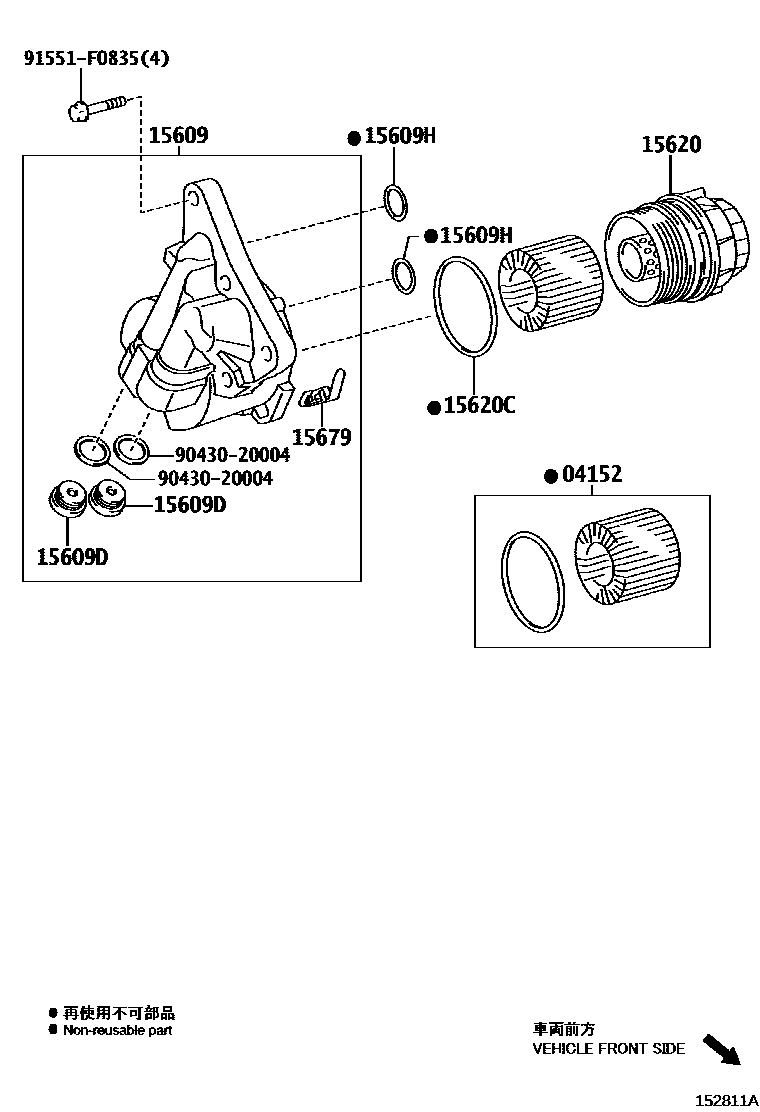

OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-37010i2ZRFXE..ZVW30..CBU200904-201112

15609BRACKET SUB-ASSY, OIL FILTER

main15609-37040i2ZRFXE..ZVW30..CBU200904-201112

main15609-37041i2ZRFXE..ZVW30..CBU201310-201511

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002×2i2ZRFXE..ZVW30..CBU200904-201112

15609HRING, O(FOR OIL FILTER BRACKET)

main96723-24020×2i2ZRFXE..ZVW30..CBU200904-201112

15620CAP ASSY, OIL FILTER

main15620-37010i2ZRFXE..ZVW30..CBU200904-201112

15620CGASKET(FOR OIL FILTER CAP)

main90301-69011i2ZRFXE..ZVW30..CBU200904-201112

15679CLIP, OIL FILTER BRACKET

main15679-37010i2ZRFXE..ZVW30..CBU200904-201112

main15679-37011i2ZRFXE..ZVW30..CBU201409-201511

9043020004

main90430-20004

91551F0835

main91551-F0835

9 parts on this diagram · 1 diagram in section
