WIRING & CLAMP

0001 1������-� 0002 1����� 0003 1������������ & ���-������ 0004 1��� 0005 1��� & �-� 0006 1���� �-��� 0007 1����� & ������ 0008 1�-�������� 0009 1����

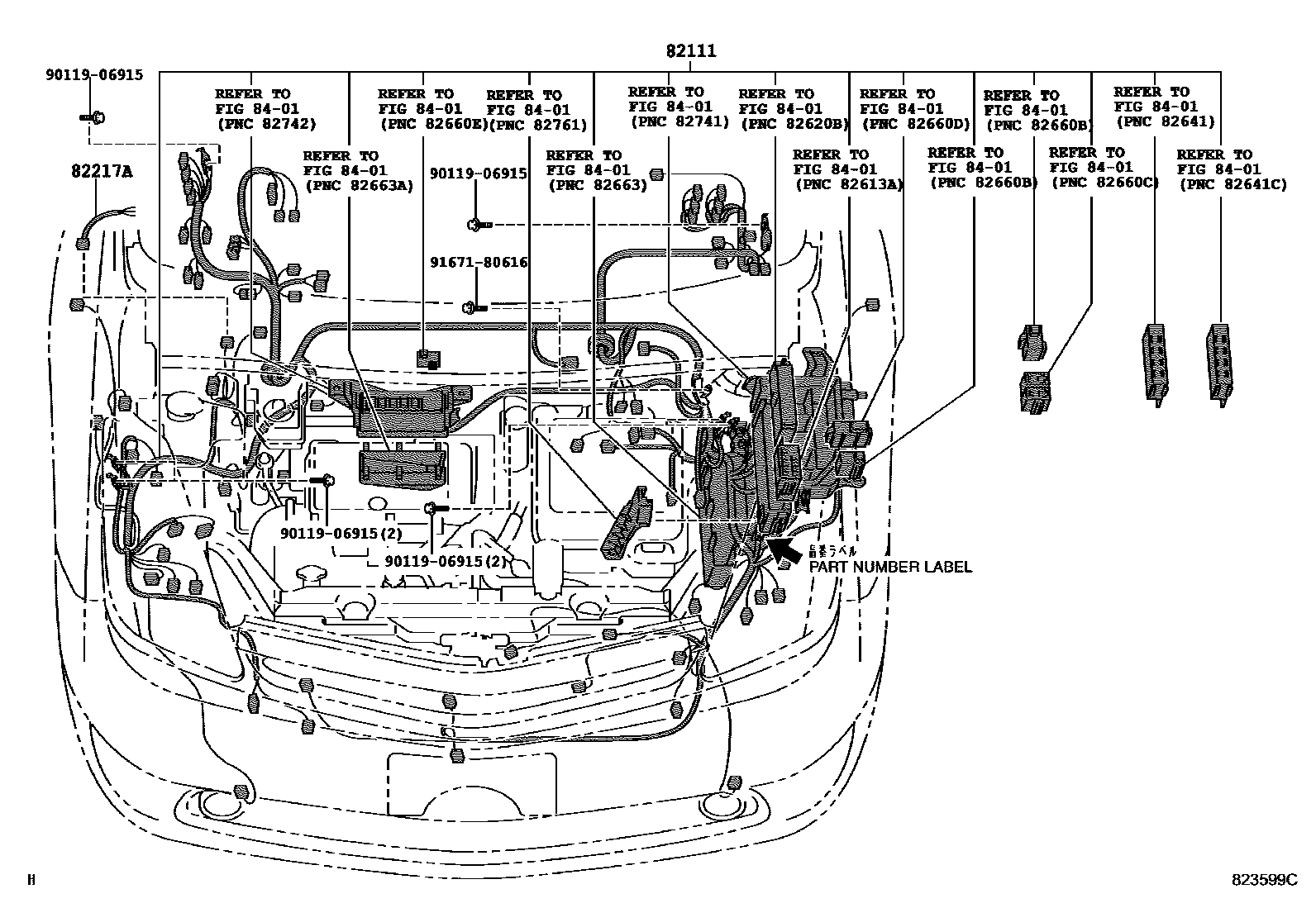

82111WIRE, ENGINE ROOM MAIN

main82111-47130supersedes 82111-47140iNHW20..G; NHW20..S200308-200405

main82111-47131supersedes 82111-47141iNHW20..G; NHW20..S200405-200511

main82111-47140iNHW20; NHW20..S200308-200405

main82111-47141iNHW20; NHW20..S200408-200511

main82111-47240supersedes 82111-47251iNHW20..G; NHW20..S200511-200808

main82111-47241supersedes 82111-47251iNHW20..S200808-200906

main82111-47242supersedes 82111-47251iNHW20200906-201112

main82111-47250supersedes 82111-47251iNHW20; NHW20..G; NHW20..S200511-200808

main82111-47251iNHW20; NHW20..G; NHW20..S200808-200903

82217AWIRE, FRONT WINDOW DEFOGGER

main82217-47010iNHW20200308-200511

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9167180616

main91671-80616

5 parts on this diagram · 9 diagrams in section
