HEADLAMP
7403CAUTION PLATE (EXTERIOR & INTERIOR)
81110BBULB(FOR HEADLAMP, NO.1)
81110LBULB, DISCHARGE HEADLAMP
81118ABRACKET, HEADLAMP, RH
81135CCOVER, HEADLAMP BACK, NO.1
81139COVER, HEADLAMP SOCKET
81158BRACKET, HEADLAMP, LH
81189COVER, HEADLAMP
main90075-67004
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9007502025
main90075-02025
9007502727
main90075-02727
9010906122
main90109-06122
9017906127
main90179-06127

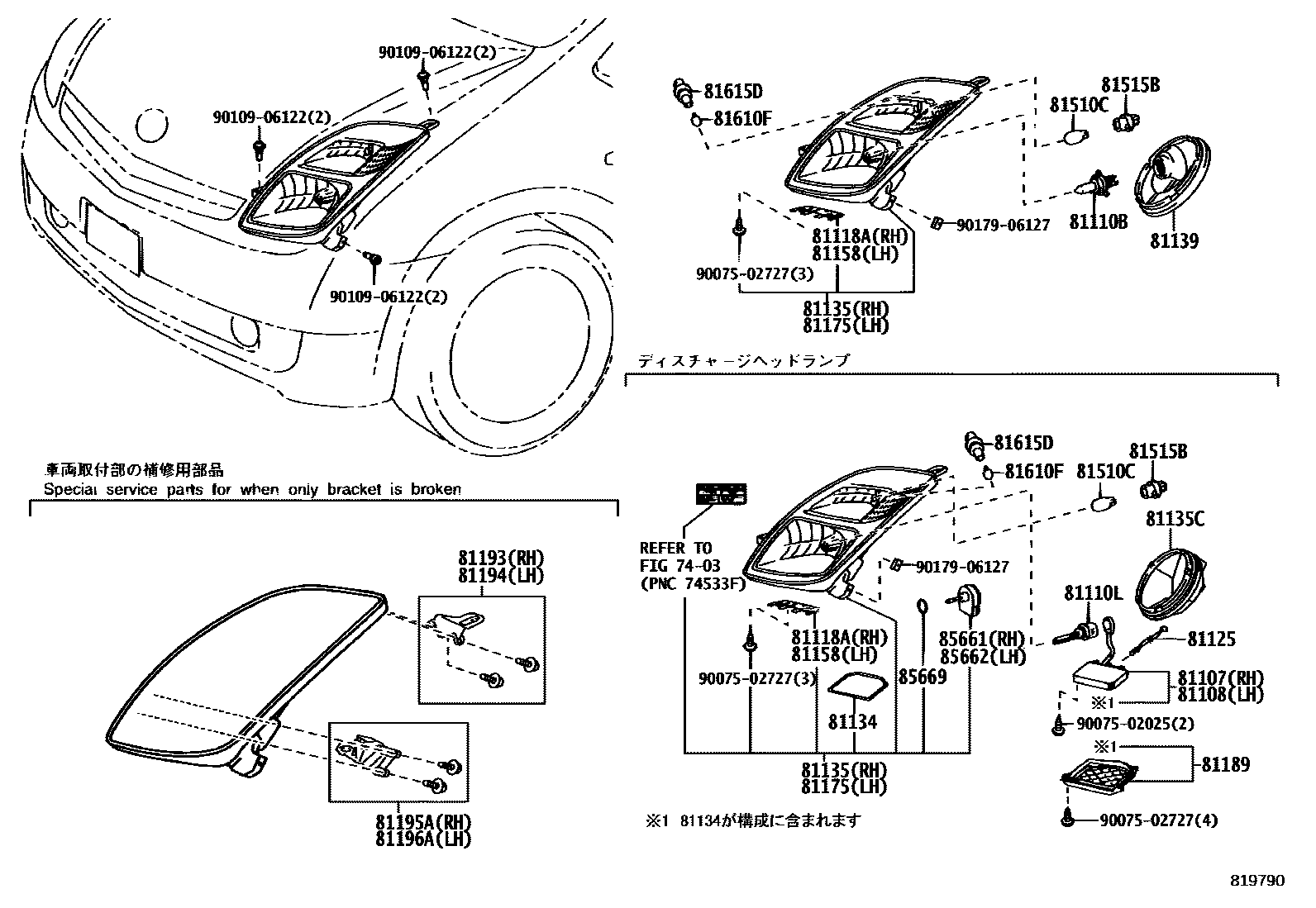

29 parts on this diagram · 2 diagrams in section
