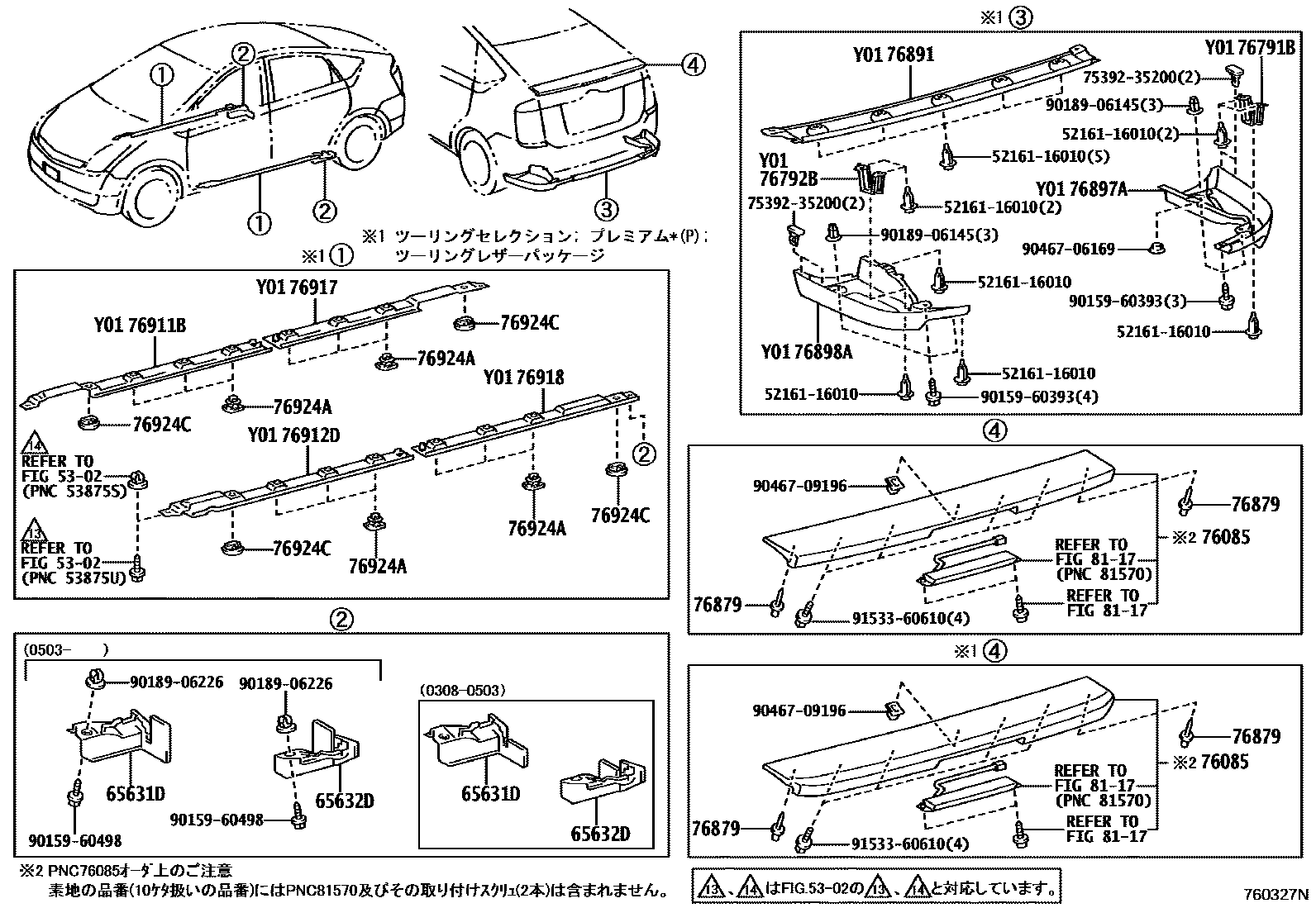

MUDGUARD & SPOILER

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-47020200308-200503

main65631-47030200503-200511

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-47020200308-200503

main65632-47030200503-200511

76085SPOILER SUB-ASSY, REAR

main76085-47020-A0200308-200609

main76085-47020-A1200308-200511

main76085-47020-A2200511-200609

main76085-47020-B0200308-200511

main76085-47020-B1200511-200609

main76085-47020-C0200308-200609

main76085-47020-D0200308-200511

main76085-47020-D1200511-200609

main76085-47020-E0200308-200609

main76085-47020-G0200308-200511

main76085-47020-G1200511-200609

main76085-47020-J0200308-200609

main76085-47020-J1200408-200511

main76085-47021-A0200610-201112

main76085-47021-A2200610-200903

main76085-47021-B1200610-201112

main76085-47021-C0200610-201112

main76085-47021-D1200610-200903

main76085-47021-E0200610-200903

main76085-47021-G1200610-200903

main76085-47021-J0200610-200903

main76085-47021-J2200704-200903

76791BBRACKET, REAR SPOILER

76792BBRACKET, REAR SPOILER, NO.1 LH

76879CLIP, REAR SPOILER, NO.1

main76879-47010200308-200511

76891SPOILER, REAR NO.1

main76891-47010

76897ASPOILER,REAR SIDE RH

76898ASPOILER,REAR SIDE LH

76911BMUDGUARD, SIDE, RH

76912DMUDGUARD, SIDE, LH

76917MUDGUARD, SIDE, REAR RH

main76917-47010

76918MUDGUARD, SIDE, REAR LH

main76918-47010

76924ARETAINER, SIDE MUDGUARD, NO.2

76924CRETAINER, SIDE MUDGUARD, NO.2

8117CENTER STOP LAMP

→ Go to FIG 81-17

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

7539235200RETAINER, OUTSIDE MOULDING

main75392-35200

9015960393

main90159-60393

9015960498

main90159-60498

9018906145

main90189-06145

9018906226

main90189-06226

9046706169

main90467-06169

9046709196

main90467-09196

9153360610

main91533-60610

26 parts on this diagram · 1 diagram in section
