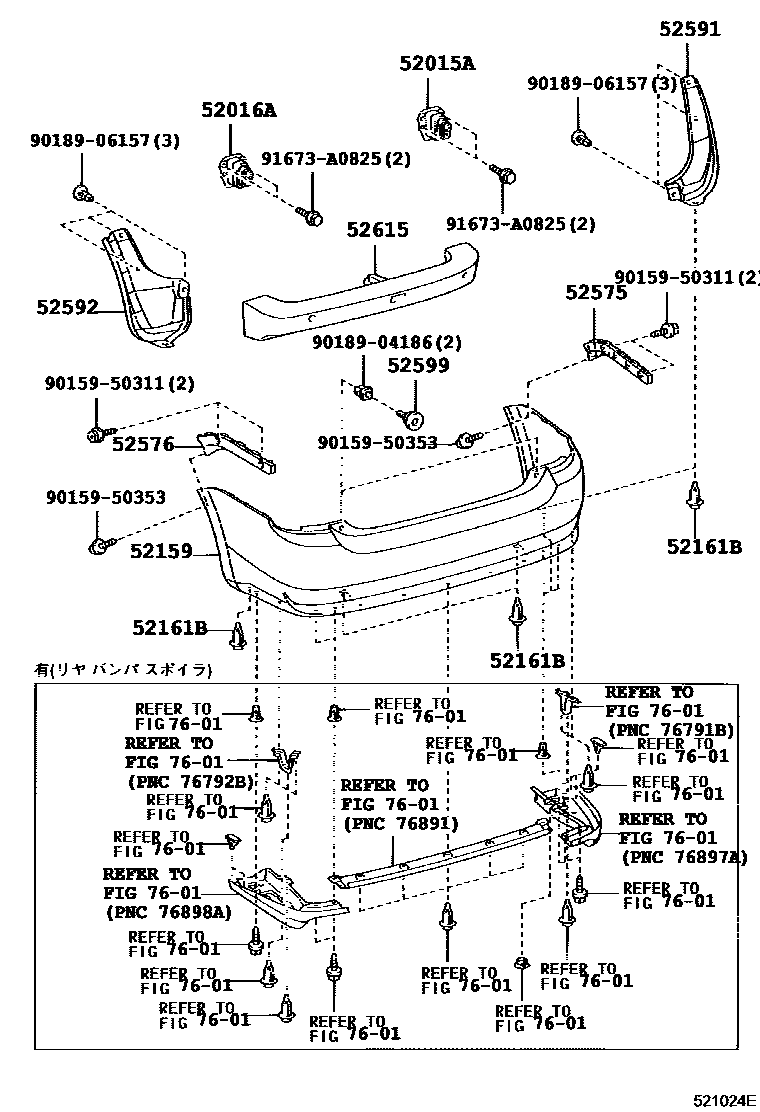

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-47010iNHW20200308-200511

52016AARM SUB-ASSY, REAR BUMPER, LH

main52015-47010iNHW20200511

52159COVER, REAR BUMPER

main52159-47030-J2iNHW20..S200704-200903

LT.PURPLISH BLUE M.M.,8K2

main52159-47040-A0supersedes 52159-47030-A0iNHW20200308-200511

main52159-47040-A1iNHW20200408-200511

main52159-47040-A2iNHW20; NHW20..G200511-200903

main52159-47040-B0supersedes 52159-47030-B0iNHW20200308-200511

main52159-47040-B1supersedes 52159-47030-B1iNHW20; NHW20..G200511-200903

main52159-47040-C0supersedes 52159-47030-C0iNHW20200308-200511

main52159-47040-D0supersedes 52159-47030-D0iNHW20200308-200511

main52159-47040-D1supersedes 52159-47030-D1iNHW20; NHW20..G200511-200903

main52159-47040-E0supersedes 52159-47030-E0iNHW20; NHW20..G200511-200903

main52159-47040-G0iNHW20200408-200511

main52159-47040-G1supersedes 52159-47030-G1iNHW20; NHW20..G200511-200903

main52159-47040-J0iNHW20200408-200511

main52159-47040-J1iNHW20200408-200511

52161BPIECE, REAR BUMPER

main52161-16010×4iNHW20200511

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47010iNHW20200308-200508

main52575-47011iNHW20200511

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47010iNHW20200308-200508

main52576-47011iNHW20200509-200511

52591SEAL, REAR BUMPER SIDE, RH

main52591-47010iNHW20200308-200511

52592SEAL, REAR BUMPER SIDE, LH

main52592-47010iNHW20200511

52599STOPPER, REAR BUMPER, UPPER

main52599-68020×2iNHW20200308-200511

52615ABSORBER, REAR BUMPER ENERGY

main52615-47030iNHW20200308-200511

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9015950311

main90159-50311

9015950353

main90159-50353

9018904186

main90189-04186

9018906157

main90189-06157

91673A0825

main91673-A0825

16 parts on this diagram · 1 diagram in section
