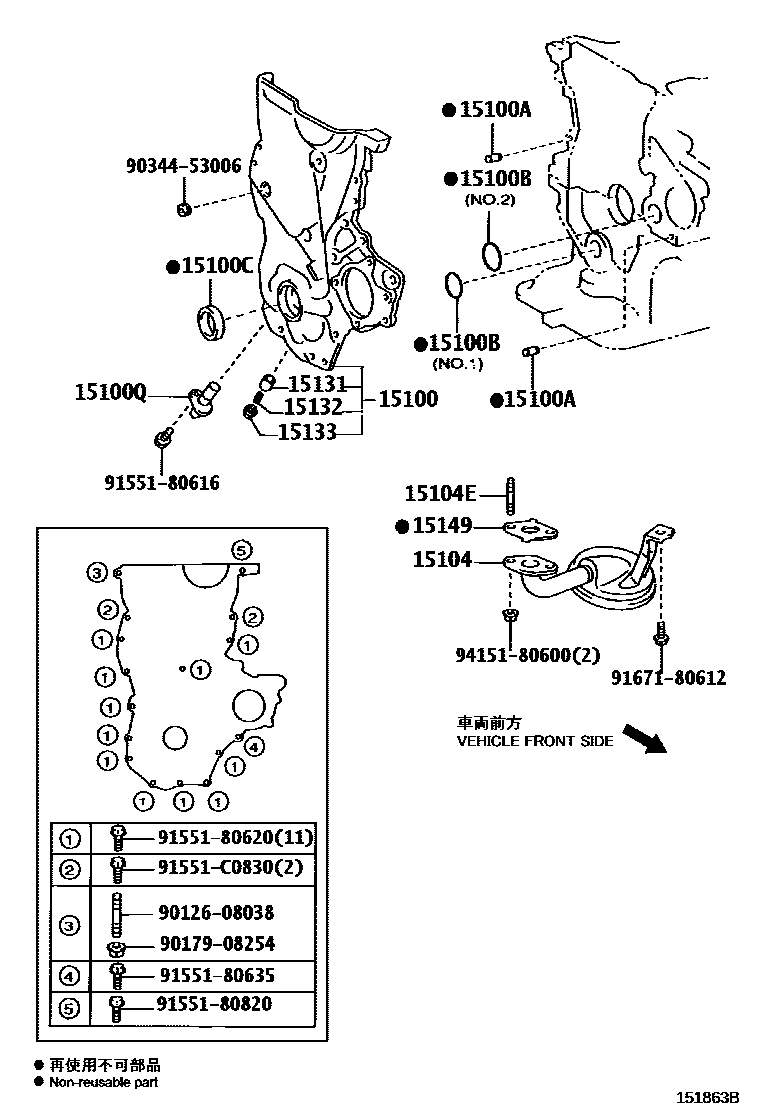

ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-21050i1NZFXE..NHW20200511-201111

main15100-21052i1NZFXE..NHW20201111-201112

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003×2i1NZFXE..NHW20..G200511-200903

15100BRING, O(FOR OIL PUMP)

main11497-21010i1NZFXE..NHW20201111-201112

main12151-21010i1NZFXE..NHW20201111-201112

main90301-31012i1NZFXE..NHW20200511-201111

main90301-42006i1NZFXE..NHW20200511-201111

15100CSEAL(FOR OIL PUMP)

main90311-25021i1NZFXE..NHW20200308-200511

15100QSENSOR, CRANK POSITION

main90919-05045i1NZFXE..NHW20200308-200511

main90919-05081i1NZFXE..NHW20201105-201112

15104STRAINER SUB-ASSY, OIL

main15104-21021i1NZFXE..NHW20200308-200511

main15104-21022i1NZFXE..NHW20..G200612-200903

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021×2i1NZFXE..NHW20200308-200511

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFXE..NHW20200308-200511

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21050i1NZFXE..NHW20200308-200511

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21020i1NZFXE..NHW20200308-200405

main15133-21030i1NZFXE..NHW20200405-200511

15149GASKET, OIL STRAINER FLANGE

main16258-21030i1NZFXE..NHW20200308-200511

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9155180616

main91551-80616

9155180620

main91551-80620

9155180635

main91551-80635

9155180820

main91551-80820

91551C0830

main91551-C0830

9167180612

main91671-80612

9415180600

main94151-80600

21 parts on this diagram · 1 diagram in section
