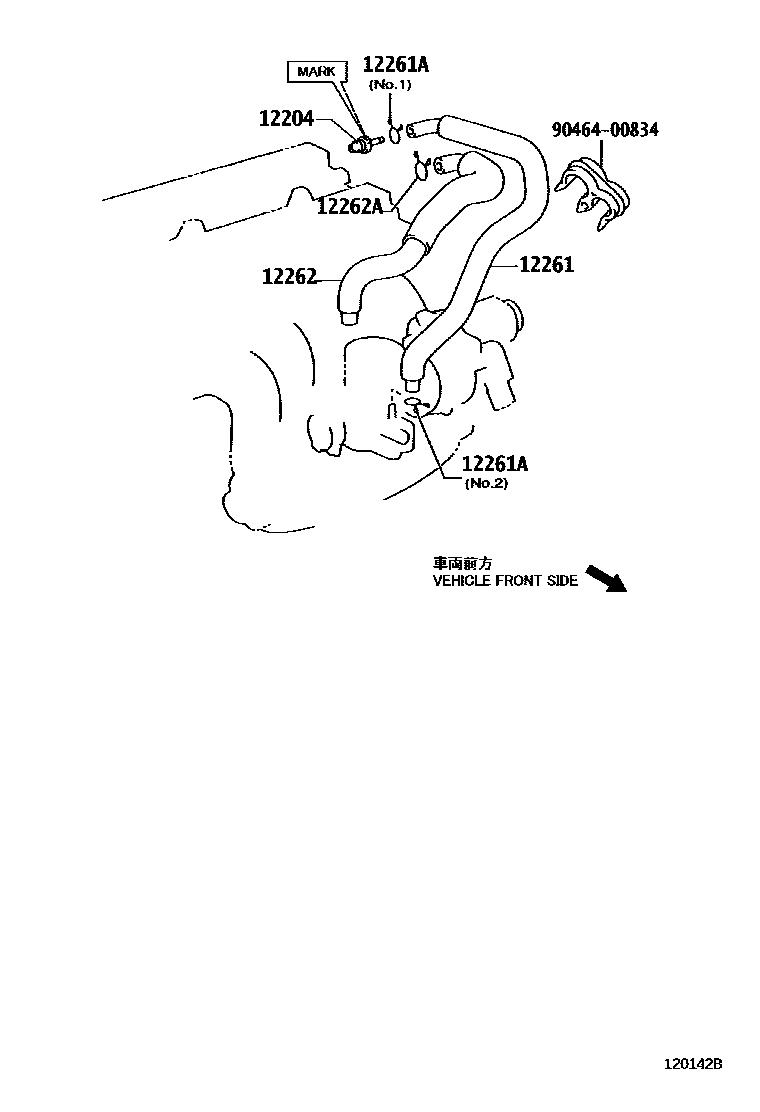

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-21010i1NZFXE..NHW20200308-200401

main12204-21011i1NZFXE..NHW20200401-200511

main12204-21012i1NZFXE..NHW20..S200810

12261HOSE, VENTILATION

main12261-21040i1NZFXE..NHW20200308-200511

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-13057i1NZFXE..NHW20..G200511-200903

main90467-15120i1NZFXE..NHW20..G200511-200903

12262HOSE, VENTILATION, NO.2

main12262-21050i1NZFXE..NHW20..G200511-200903

12262ACLIP(FOR VENTILATION HOSE NO.2)

main16581-21050i1NZFXE..NHW20..G200511-200903

main90467-21004i1NZFXE..NHW20200308-200408

9046400834

main90464-00834

6 parts on this diagram · 1 diagram in section
