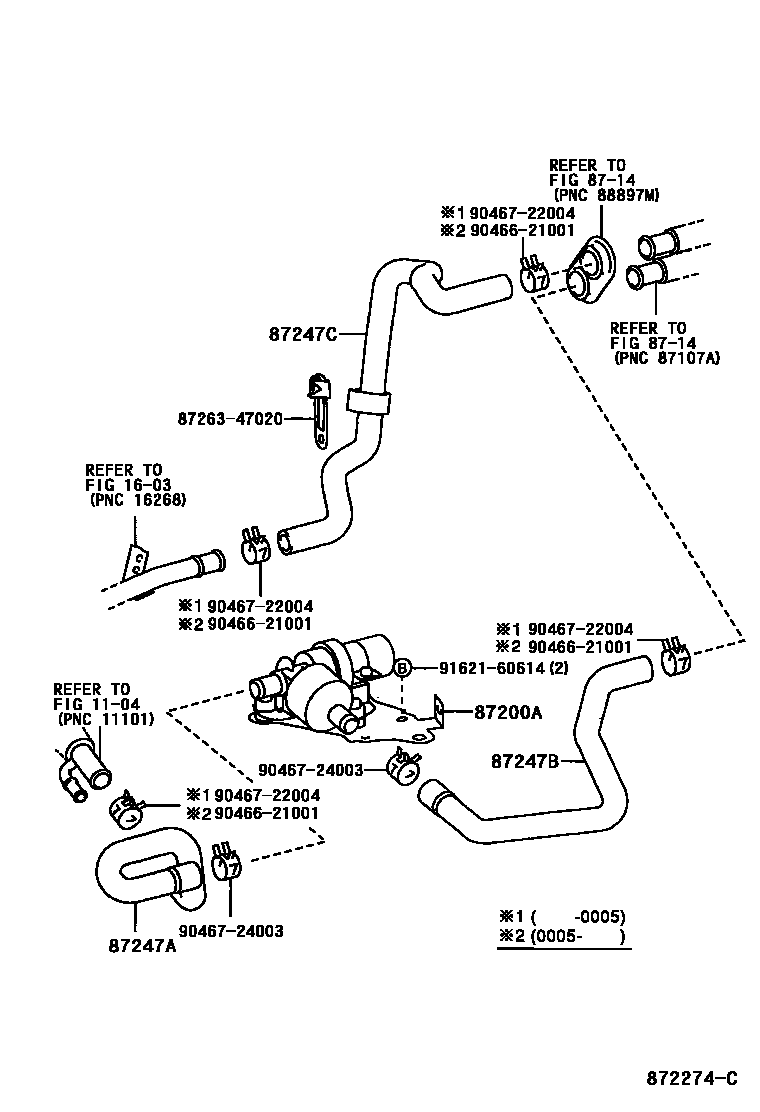

HEATING & AIR CONDITIONING - WATER PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87200APUMP ASSY, WATER(FOR HEATER)

main87200-47010iNHW10199712-200005

main87200-47020iNHW11200005

87247AHOSE, HEATER WATER, A

main87245-47080iNHW10199712-200005

main87245-47110iNHW11200005

87247BHOSE, HEATER WATER, B

main87245-47090iNHW10199712-200005

main87245-47120iNHW11200005

87247CHOSE, HEATER WATER, C

main87245-47100iNHW10199712-200005

main87245-47130iNHW11200005

8726347020BRACKET, HEATER WATER PIPE, NO.1

main87263-47020

9046621001

main90466-21001

9046722004

main90467-22004

9046724003

main90467-24003

9162160614

main91621-60614

12 parts on this diagram · 1 diagram in section
