NAVIGATION & FRONT MONITOR DISPLAY

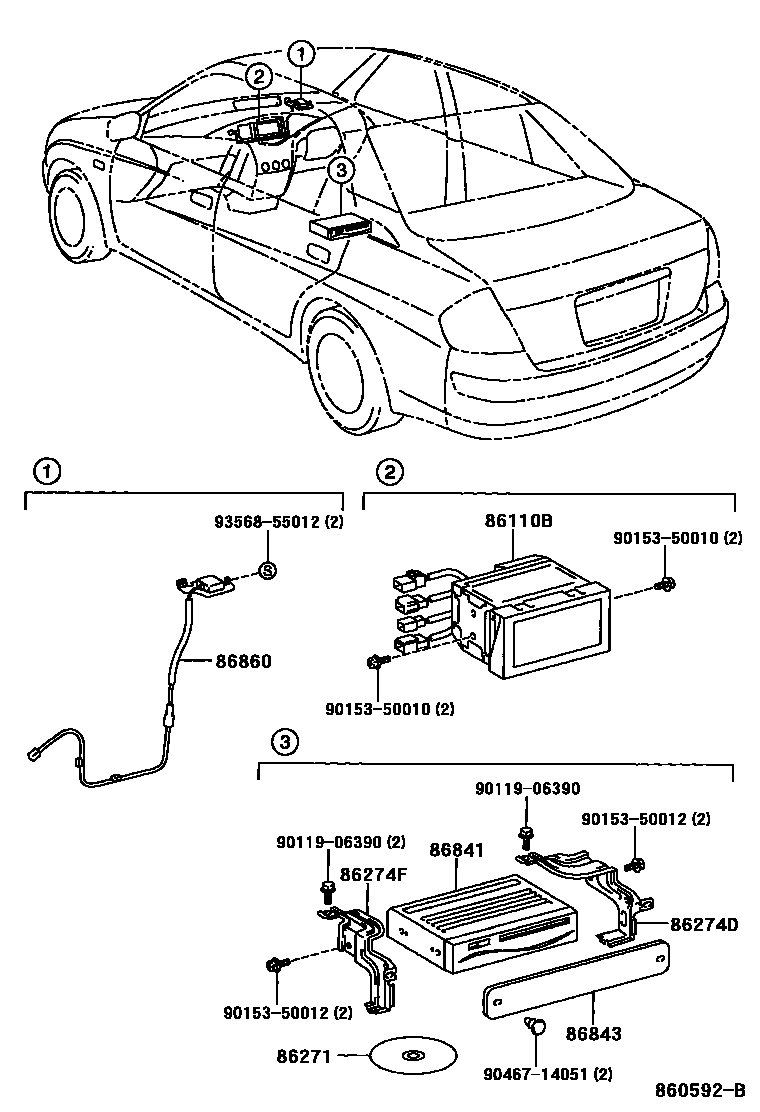

Parts diagram

86110BMULTI-DISPLAY ASSY

main86110-47010i199712-200005

main86110-47020i200005

86271DISC, DISC PLAYER

main86271-30470i200005-200108

main86271-33011i199712-200005

main86271-44020i200108

86274DBRACKET, DISC PLAYER

main86274-47010i199712-200005

main86274-47030i200005

86274FBRACKET, DISC PLAYER, NO.2

main86274-47020i199712-200005

main86274-47040i200005

86841COMPUTER, NAVIGATION

main86841-30081i200005-200108

main86841-44010i200108

main86841-47010i199712-200005

86843COVER, NAVIGATION COMPUTER

main86843-47010i199712

86860ANTENNA ASSY, NAVIGATION

main86860-47010i199712-200005

main86860-47020i200005-200108

main86860-47040i200108

9011906390

main90119-06390

9015350010

main90153-50010

9015350012

main90153-50012

9046714051

main90467-14051

9356855012

main93568-55012

12 parts on this diagram · 1 diagram in section
