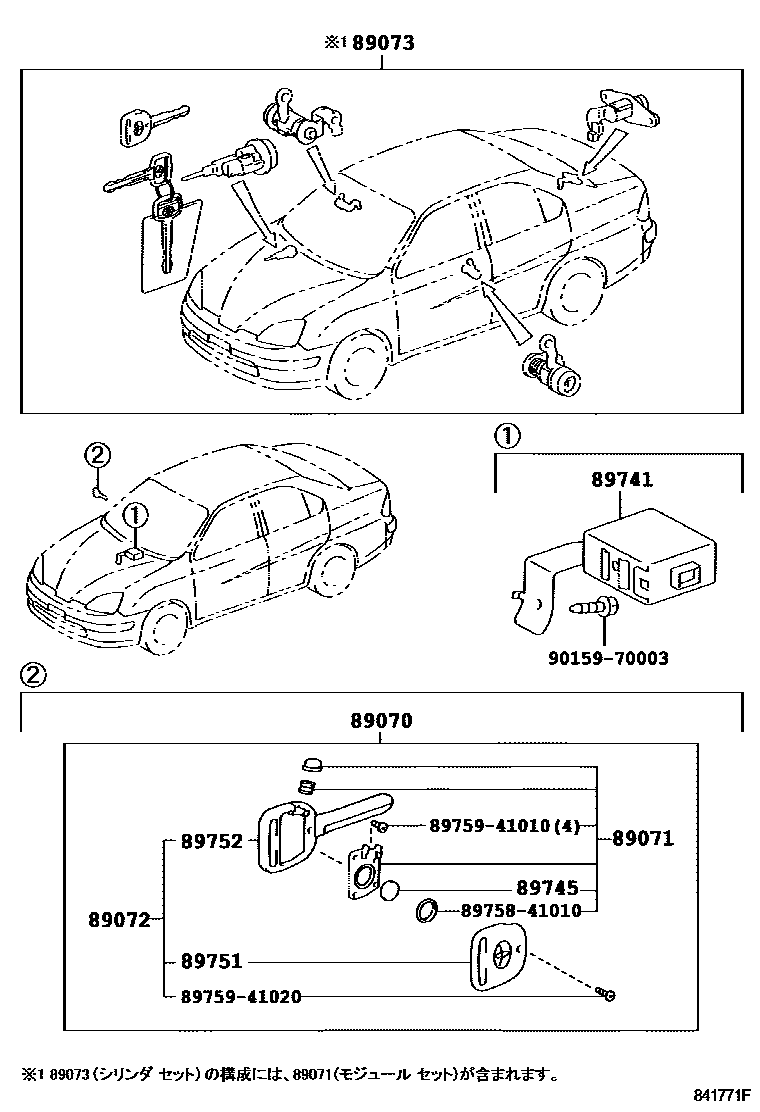

WIRELESS DOOR LOCK

0001 1 0002 1

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-47020iNHW10199712-200005

main89070-47090iNHW11200005

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-47010iNHW10199712-200005

main89071-52010iNHW11200005

89072HOUSING SET, DOOR CONTROL TRANSMITTER

main89072-47020iNHW10199712-200005

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main89073-47010iNHW10199712-200005

main89073-47070iNHW11200005

89741RECEIVER, DOOR CONTROL

main89741-47010iNHW10199712-200005

main89741-47030iNHW11200005

89745BATTERY, TRANSMITTER

main89745-41010iNHW1#199712

89751COVER, TRANSMITTER HOUSING

main89751-44010iNHW10199712-200005

89752CASE, TRANSMITTER HOUSING

main89752-46020iNHW10199712-200005

8975841010PACKING, DOOR CONTROL TRANSMITTER

main89758-41010

8975941010SCREW, DOOR CONTROL TRANSMITTER

main89759-41010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9015970003

main90159-70003

12 parts on this diagram · 2 diagrams in section
