WIRING & CLAMP

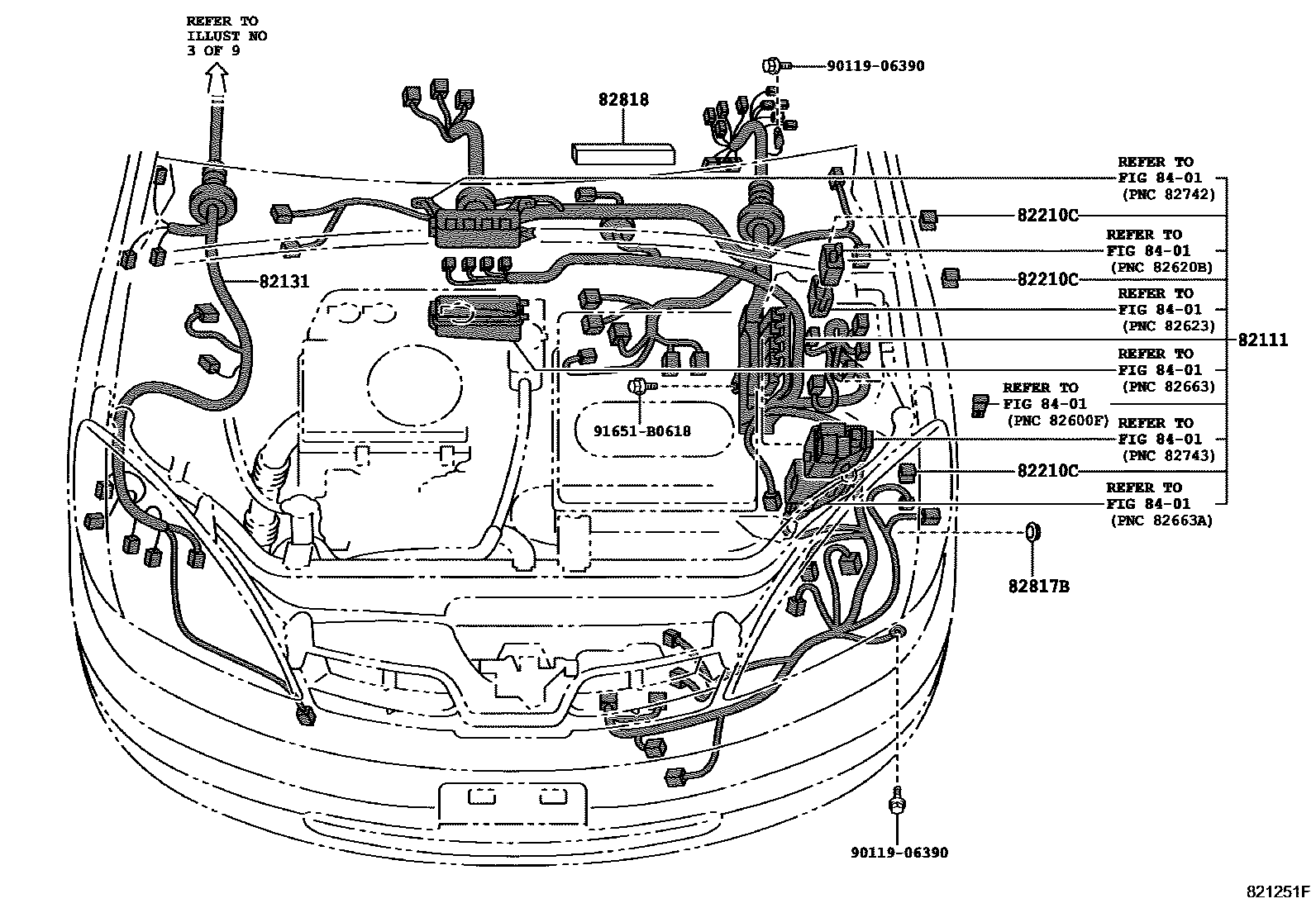

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-47010i199712-200005

main82111-47020i200005

main82111-47040i200005-200108

main82111-47041i200108

82131WIRE, COWL

main82131-47010i199712-200005

main82131-47020i199712-200005

main82131-47030i200005

main82131-47050i200005-200108

main82131-47051i200108

main82131-47110i200201-200212

PREMIUM *(D)

82210CFUSIBLE LINK

main90982-08246i199712

main90982-08254i199712

main90982-08274i199712

main90982-08280i199712-200005

main90982-08281i199712

main90982-08282i199712

main90982-08283×2i199712

main90982-08284i199712

main90982-08285i199712

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-2B730i199712

82818PROTECTOR, WIRING HARNESS, NO.2

main82818-47010i199712

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906390

main90119-06390

91651B0618

main91651-B0618

8 parts on this diagram · 11 diagrams in section
