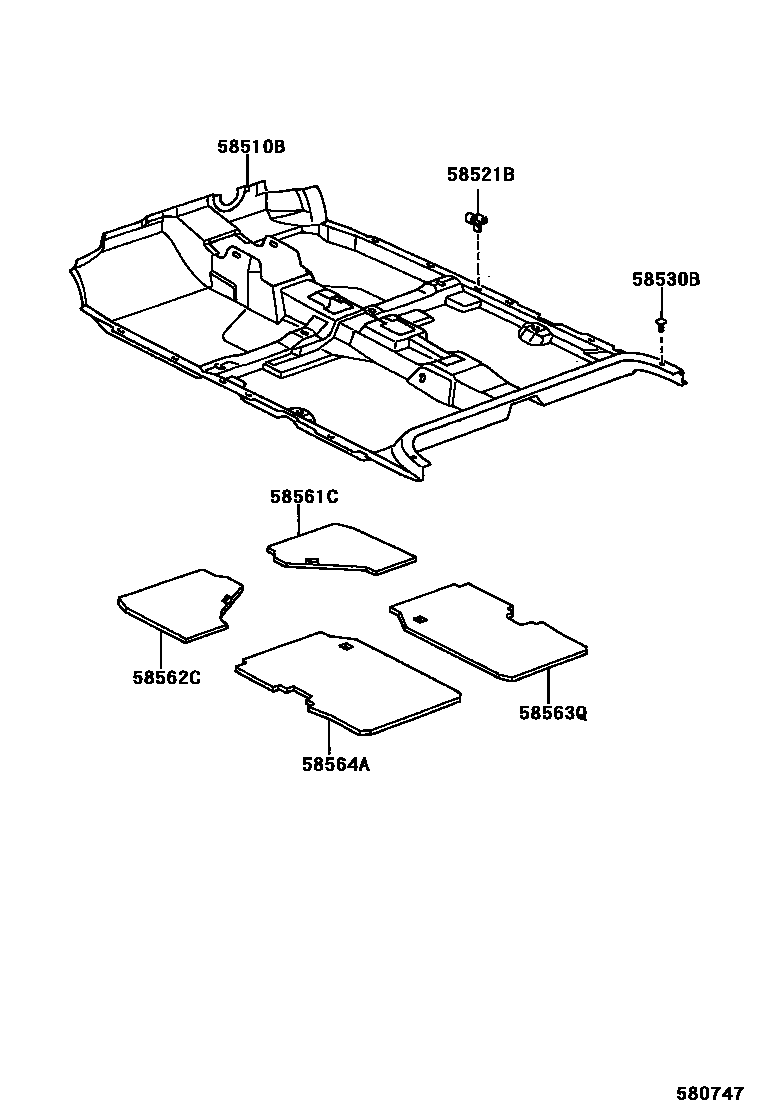

MAT & CARPET

58510BMAT, FRONT FLOOR, FRONT

main58510-47010-B0iNHW10199712-200005

LT. AMETHYST,TRIM13

main58510-47010-K0iNHW10199712-200005

PURPLE,TRIM19

main58510-47020-B0iNHW11200005

LT. AMETHYST,TRIM9#

58521BHOOK, FLOOR CARPET

main58521-47010×8iNHW1#199712

main58521-47020×2iNHW1#199712

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07144×4iNHW1#199712

58561CSILENCER, FRONT FLOOR, NO.1

main58561-47010iNHW1#199712

58562CSILENCER, FRONT FLOOR, NO.2

main58562-47010iNHW1#199712

58563QSILENCER, FRONT FLOOR, NO.3

main58563-47010iNHW1#199712

58564ASILENCER, FRONT FLOOR, NO.4

main58564-47010iNHW1#199712

7 parts on this diagram · 1 diagram in section
