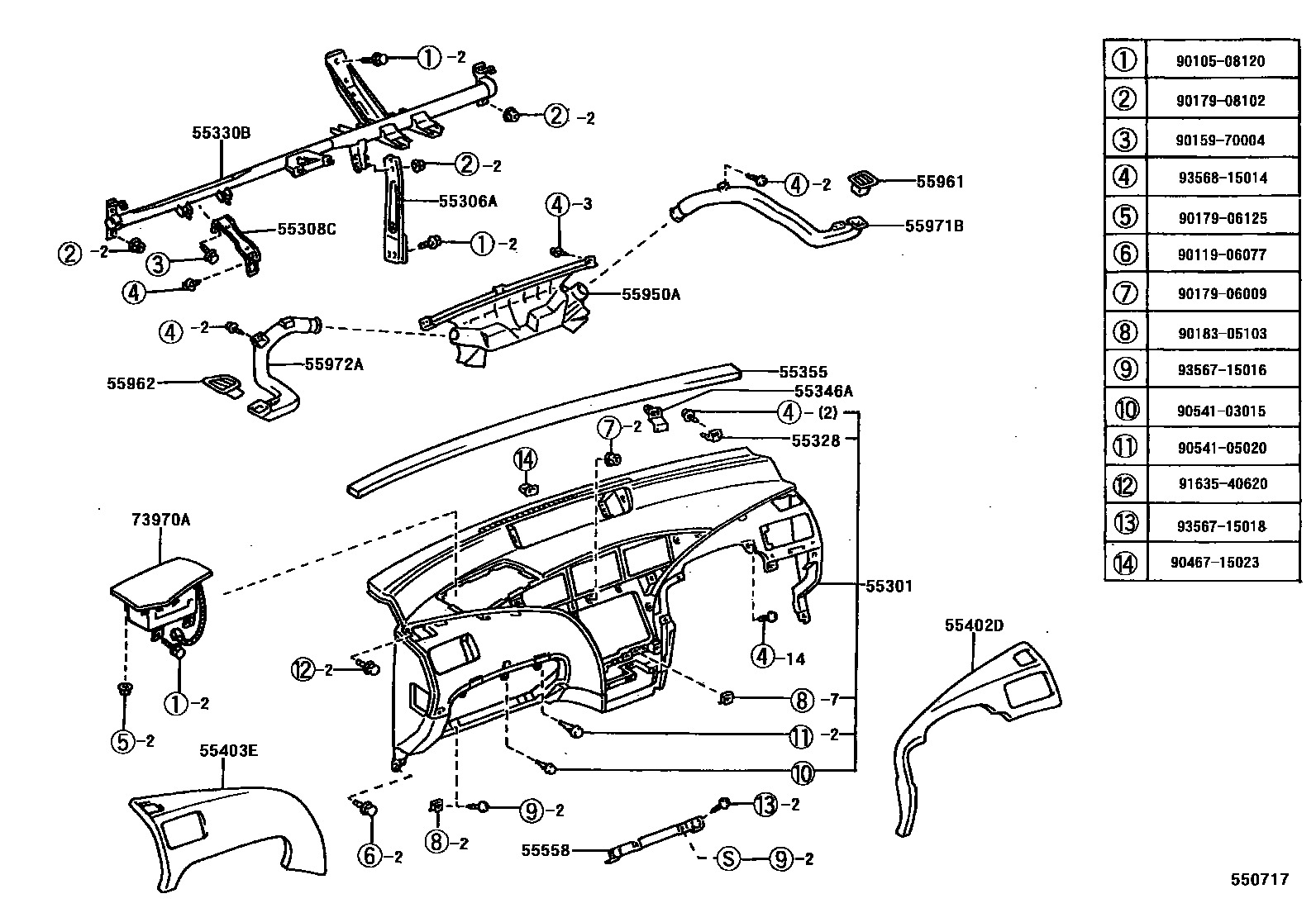

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-47010-B0iNHW10199712-199811

AMETHYST,TRIM13,19

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-47010iNHW1#199712

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-47010iNHW1#199712

55328PIN, INSTRUMENT PANEL, NO.1

main55328-44010×2iNHW1#199712

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-47010iNHW1#199712

55346ACLIP, INSTRUMENT PANEL, NO.2

main55346-44010×2iNHW1#199712

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-47010iNHW11200005

55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1

main55402-47010-B0iNHW10199712-199811

LT.AMETHYST,TRIM13,19

55403EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2

main55403-47010-B0iNHW10199712-199811

LT.AMETHYST,TRIM13,19

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-47010iNHW1#199712

55950ANOZZLE ASSY, DEFROSTER

main55950-47010iNHW1#199712

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-47010-B0iNHW10199712-199811

LT.AMETHYST,TRIM13,19

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-47010-B0iNHW10199712-199811

LT.AMETHYST,TRIM13,19

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-47010iNHW1#199712

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-47010iNHW1#199712

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-47010-B0iNHW10199712-199811

AMETHYST,TRIM13,19

main73970-47050-B0iNHW11200005

AMETHYST,TRIM9#

9010508120

main90105-08120

9011906077

main90119-06077

9015970004

main90159-70004

9017906009

main90179-06009

9017906125

main90179-06125

9017908102

main90179-08102

9018305103

main90183-05103

9046715023

main90467-15023

9054103015

main90541-03015

9054105020

main90541-05020

9163540620

main91635-40620

9356715016

main93567-15016

9356715018

main93567-15018

9356815014

main93568-15014

30 parts on this diagram · 2 diagrams in section
