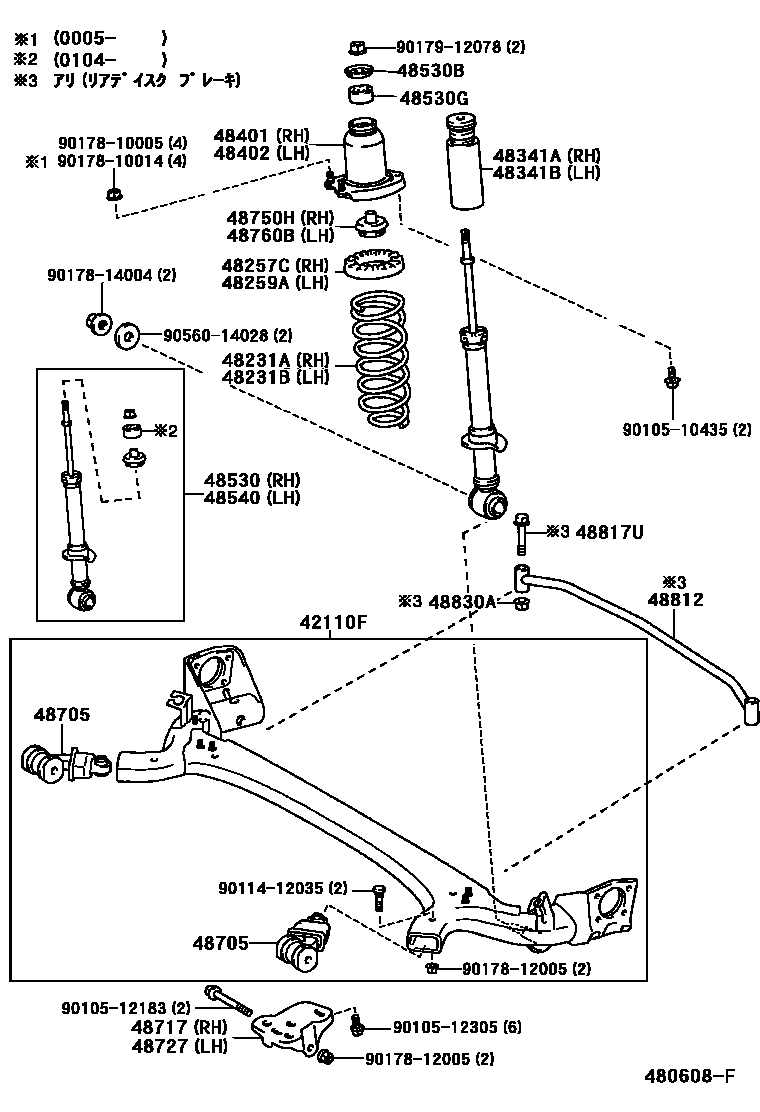

REAR SPRING & SHOCK ABSORBER
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48717BRACKET, REAR SUSPENSION ARM, RH
48727BRACKET, REAR SUSPENSION ARM, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48812BAR, STABILIZER, REAR
48817UBOLT(FOR REAR STABILIZER)
48830ANUT(FOR REAR STABILIZER LINK)
9010510435
main90105-10435
9010512183
main90105-12183
9010512305
main90105-12305
9011412035
main90114-12035
9017810005
main90178-10005
9017810014
main90178-10014
9017812005
main90178-12005
9017814004
main90178-14004
9017912078
main90179-12078
9056014028
main90560-14028
31 parts on this diagram · 1 diagram in section
