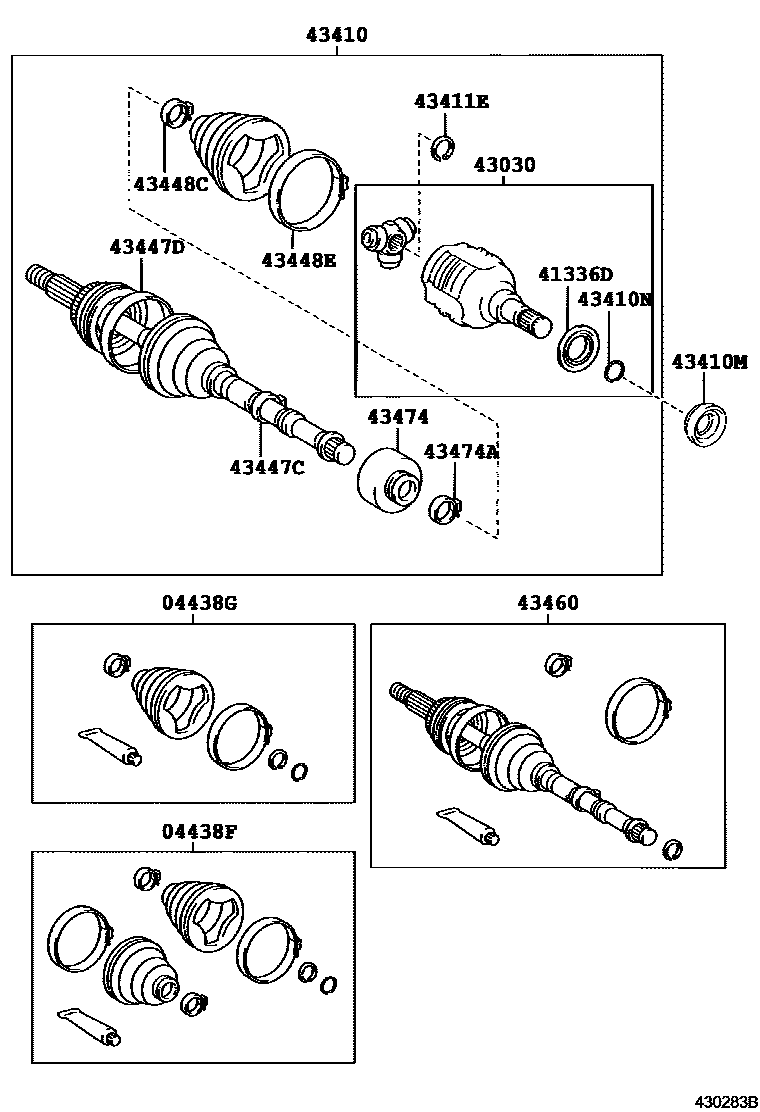

FRONT DRIVE SHAFT

0001 1��� 0002 1RH 0003 1��� 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12660iNHW11200104

sub04428-12250

main04438-20130iNHW10199712-199804

sub04438-20131

main04438-20131iNHW10199804-199904

sub04438-20134

main04438-20132iNHW1#199904-200104

sub04438-20133

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12470iNHW11200104

sub04438-32240

main04438-20120iNHW10199712-199804

sub04438-20121

main04438-20121iNHW1#199804-200104

sub04438-12470

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12060iNHW11200011

main41336-32020iNHW1#199712-200011

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-20010iNHW10199712-199806

sub43040-32040

main43040-32040iNHW1#199806

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-47010iNHW10199712-199901

sub43410-47011

main43410-47011iNHW1#199901-200104

sub43410-47012

main43410-47012iNHW11200104

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35019iNHW10199712-200005

main90311-35045iNHW11200005-200308

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-27005iNHW1#199712

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22005iNHW1#199712

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12150iNHW11200104

sub42345-12190

main42345-20090iNHW10199901-200005

sub42345-20100

main42345-20100iNHW11200005-200104

main90949-01947iNHW10199712-199901

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12140iNHW11200104

sub42345-12180

main42345-20110iNHW10199901-200005

sub42345-20120

main42345-20120iNHW11200005-200104

main90949-01076iNHW10199712-199901

sub42345-12160

main90949-01946iNHW10199712-199901

sub42345-12160

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078iNHW1#199712

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iNHW11200202

main90949-01076iNHW1#199712-200203

sub42345-12160

main90949-01946iNHW1#199712-200203

sub42345-12160

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49035iNHW10199712-199804

sub43460-49036

main43460-49036iNHW10199804-199901

sub43460-49037

main43460-49037iNHW1#199901-200104

sub43460-49038

main43460-49038iNHW11200104

43474DAMPER, DRIVE SHAFT

main43474-47010iNHW1#199712

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iNHW10199712-200005

main90949-01947iNHW10199712-200005

main90949-01947iNHW11200005

15 parts on this diagram · 4 diagrams in section
